500+ lbs (227 kgs) capacity

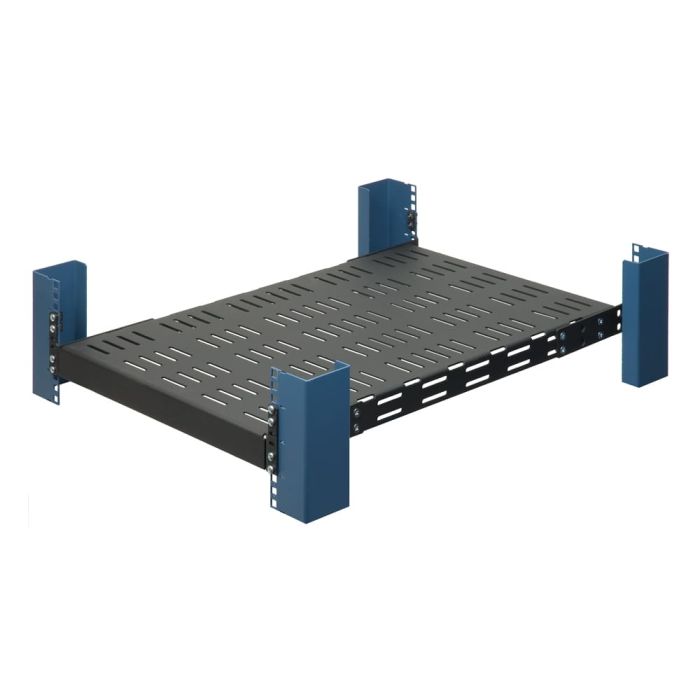

Front view - Heavy Duty Fixed Shelf

 Front view - Heavy Duty Fixed Shelf

Hover to View, Click to Zoom

  • Top view - Heavy Duty Fixed Shelf
  • Side view - Heavy Duty Fixed Shelf
  • Front view with server - Heavy Duty Fixed Shelf
  • Side view with server - Heavy Duty Fixed Shelf

Heavy Duty Fixed Shelf

P/N: Shelf Model 116

Fits any 4Post, 2Post rack

  • Fits square, round, threaded holes
  • Mounting depth from 15 - 31.5" (381 - 800 mm)
  • Works with 19" racks

Supports heavy equipment

  • Capacity 500 or 900 lbs (226 or 409 kgs)
  • Ideal for large printers, UPS, tower servers
  • Shelf depth: 28" (711 mm)
  • Thick 1/8" steel construction

Alternate products

Be the first to review this product

Items in stock ship from our warehouse tomorrow!
Product Name P/N: Availability Price Qty
Heavy Duty Fixed Shelf, 500 lb capacity 1USHL-116
In Stock
$149.99
Heavy Duty Fixed Shelf, 900 lb capacity 108-0991
In Stock
$199.99

Features

The heavy duty rack shelf is compatible with 19" server racks from manufacturers such as Dell, HP and IBM. Heavy duty rack shelves can be installed into racks with square, round, or threaded holes. Rack mount equipment weighing up to an astonishing 900 lbs (409.9 kgs) can be installed using a heavy duty rack shelf. The rack shelf is 28" (711 mm) deep and can be installed into server racks with installation depths up to 31.5" (800 mm).

Heavy Duty Fixed Shelf - Technical Specifications

Rack Type 4Post
Rack Units The shelf occupies 1U of space. The support brackets occupy 2U of space
Weight Capacity 500 lbs (227 kgs) for 1USHL-116
900 lbs (409 kgs) for 108-0991
Mounting Depth Range 15 - 31.5" deep (381 - 800 mm)
Overall Installation Depth Min depth: 28" (711 mm)
Shelf Surface Area 500 lb shelf: 17.25 x 28 (447 x 711 mm)
900 lb shelf: 17.55" x 28" (447 x 711 mm)
Shelf Type Vented
Material Type 1/8" steel construction
Finish Black textured powder coat
Included Hardware 10-32 & 12-24 screws. Cage nuts are included for square hole racks
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
