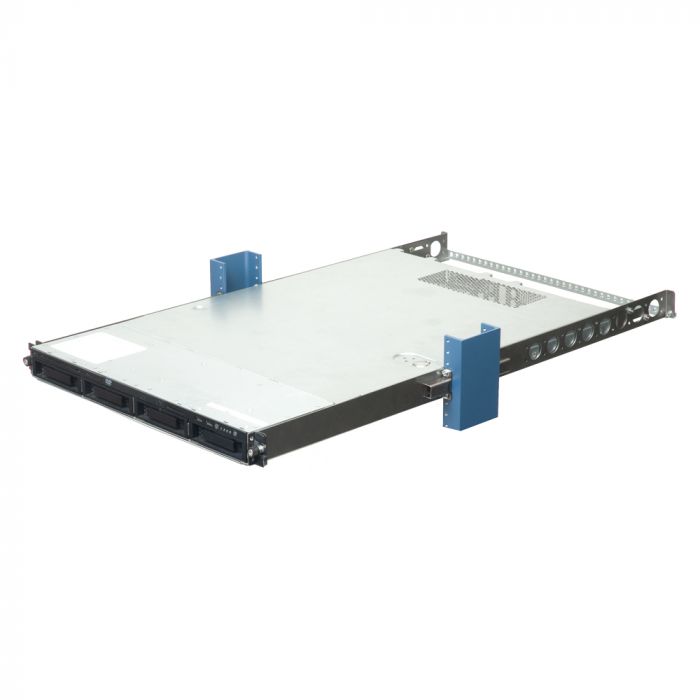

2Post center mount with server - HP DL160 G6, DL180 G6 Rails

 2Post center mount with server - HP DL160 G6, DL180 G6 Rails

Hover to View, Click to Zoom

  • 2Post flush mount with server - HP DL160 G6, DL180 G6 Rails
  • Rear view - 2Post center mount - HP DL160 G6, DL180 G6 Rails
  • Rear view - 2Post flush mount - HP DL160 G6, DL180 G6 Rails
  • Side view 2Post center mount - HP DL160 G6, DL180 G6 Rails
  • Side view 2Post flush mount with server - HP DL160 G6, DL180 G6 Rails
  • Front view - 4Post with server - HP DL160 G6, DL180 G6 Rails
  • Side view - 4Post with server - HP DL160 G6, DL180 G6 Rails
  • Rear view - 4Post with server - HP DL160 G6, DL180 G6 Rails
  • Rear view - 4Post with DL180 G6 server
  • Front view - 2Post with DL180 G6 server
  • Rear view - 2Post with DL180 G6 server

HP DL160 G6, DL180 G6 Rack Rails

P/N: BRK-HP-4P-002, BRK-HP-2PC-002

Fits any 4 Post rack

  • Square, round, threaded holes
  • Supports L, C, Z, and ? rack upright shapes
  • Adjustable mounting depth of 3 - 32.5" (76 - 825 mm)

4Post Mounting

  • 4Post Mount : Requires the P/N: BRK-HP-4P-002

2Post Mounting

  • 2Post Center Mount : Requires the P/N: BRK-HP-2PC-002
  • 2Post Flush Mount: Requires the P/N: BRK-HP-4P-002

Be the first to review this product

Items in stock ship from our warehouse tomorrow!
Product Name P/N: Availability Price Qty
2Post Centermount Rails - HP DL160 G6, DL180 G6 BRK-HP-2PC-002
In Stock
$119.99
4Post or 2Post Flushmount Rails for HP DL160 G6, DL180 G6 BRK-HP-4P-002
In Stock
$114.99

Features

These two rail kits allow the HP DL160G6 to be installed into any type of server rack. These rail kits replace the HP rail kits that would normally come with the sever. The rail kits are compatible with other HP servers such as the DL180G6. These rail kits allow the DL160G6 to be installed into a typical 4Post server racks as well as 2Post server racks in both the center mount and flush mount configurations.

HP DL160 G6, DL180 G6 Rack Rails - Technical Specifications

Rail OEM HP
Server Compatibility HP DL160G6 & DL180G6
Rack Type BRK-HP-2PC-002: 2Post center mount
BRK-HP-4P-002: 4Post or 2Post flush mount
Rack Type 4Post, 2Post
Hole Type Square or round
Rail Type Fixed rail, non-ball bearing slides
Rack Units 1U
Mounting Depth Range 4Post server racks: 3" - 32.5" (76.2 - 825.5 mm)
2Post relay racks: 3" (76.2 mm)
Cable Management Cabling crossbar is included
Included Hardware 8-32 flat head & pan head screws
8-32 nuts
Spacers with and without PEMS
Finish Zinc plated
Tech Notes This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack
