HP DL580 G7 - Rackmount Rail Guide

HP Standard 3U-7U Universal Rail Kit

Used for most square hole racks, round hole racks or threaded hole racks. Rack mounting depth must be between 28 1/8" - 36 1/2"
See HP's DL580 rail kit details

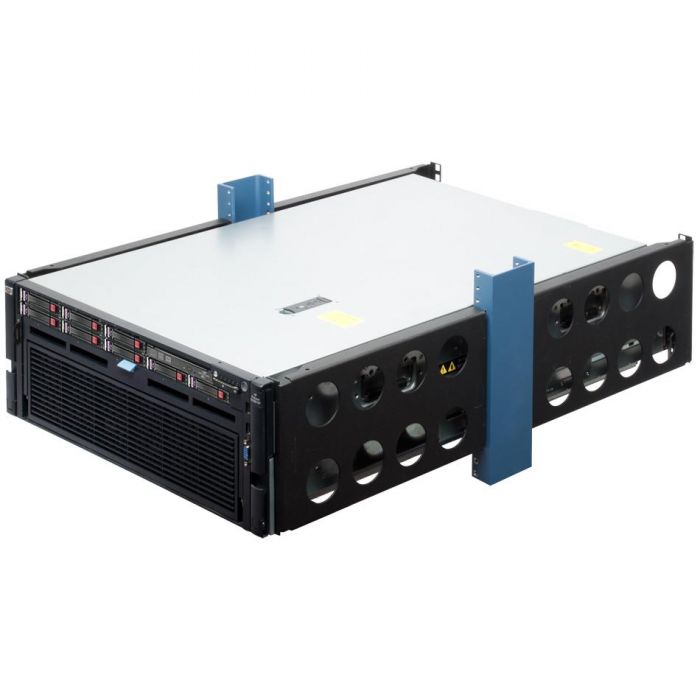

2Post center mount

1. Convert 4U of 2Post rack to 4Post using HP's rails and a
   2POST-4UKIT. One kit mounts one server.
   Compatible with upright depths from 3 - 6" (76 - 152 mm)
2. If you don't have HP's universal rail kit, use RackSolutions'
   Universal Rails, 3UKIT-009

2Post flush mount

1. Convert 4U of 2Post rack to 4Post using HP's rails and a 4UKIT-003
   One kit mounts one server.
   Compatible with upright depths from 3 - 6" (76 - 152 mm)
2. If you don't have HP's universal rail kit, use RackSolutions'
   Universal Rails, 3UKIT-009

4Post square hole racks

1. Use HP's standard 3U - 7U universal rail kit or
   RackSolutions' Universal Rails, 3UKIT-109
2. Call RackSolutions for depths less than 28 1/8"

4Post round hole racks

1. Use HP's standard 3U - 7U universal rail kit or
   RackSolutions' Universal Rails, 3UKIT-109
2. Call RackSolutions for depths less than 28 1/8"

4Post threaded hole racks

1. Use HP's standard 3U - 7U universal rail kit or
   RackSolutions' Universal Rails, 3UKIT-109
2. Call RackSolutions for depths less than 28 1/8"

Double 2Post racks

1. Use HP's standard 3U - 7U universal rail kit or
   RackSolutions' Universal Rails, 3UKIT-109
2. Call RackSolutions for depths less than 28 1/8"

Rack Issues, Problems

1. Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
