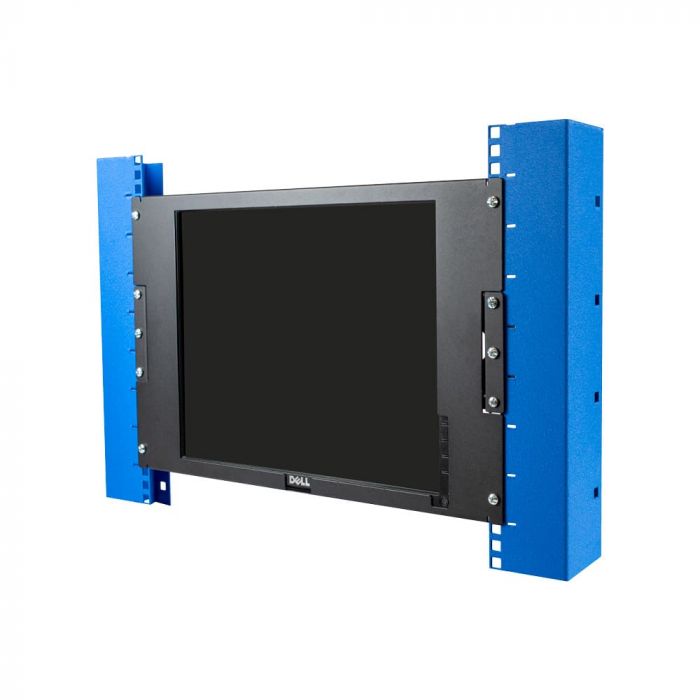

8U Flush Mount Rack Monitor Kit - with speakers

 8U Flush Mount Rack Monitor Kit - with speakers

Hover to View, Click to Zoom

  • 7U Flush Mount Rack Monitor Kit - rear view
  • 8U Flush Mount Rack Monitor Kit - with speakers and keyboard
  • Angled view - 8U Flush Mount Rack Monitor Kit - with speakers

Flush Mount Rack Monitor

Affordable 17" Rack Monitor

  • Dell E170S LCD monitor included
  • Standard KVM switches supported
  • Optional speakers
  • VGA Input @ 1280 x 1024 max
  • Internal power supply

Fits any 2 Post, 4 Post rack

  • Fits square, round, threaded holes
  • Mounts flush against rack mounting surface

Alternate Products

Be the first to review this product

Items in stock ship out today if you complete your order in the next 8 minutes!
Product Name P/N: Availability Price Qty
7U Flush Rack Mount Monitor 7U-RACKMON
In Stock
$299.99
8U Flush Rack Mount Monitor, plus Speakers 8U-RACKMON-SPK
In Stock
$349.99

Features

The flush mount rack monitor kit is an economical method to mount a 17" Dell flat panel (included) to a standard 19" server rack. The rack monitor has an optional speaker. A rackmount keyboard is available if required. There is an alternate flush mount monitor kit that supports any monitor up to 19".

Flush Mount Rack Monitor - Technical Specifications

Rack Units 7U, 8U
Rack Type Any EIA standard server rack
Rack Type 4Post, 2Post
Included Hardware 10-32 and 12-24 screws Cage nuts provided for square hole racks
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
Overall Installation Depth 2.75" (69.8 mm)
Cable Management Multiple tie points
Monitor Specs 17” (432 mm) monitor specs
Monitor is Dell E170S
Max resolution: 1280 x 1024 pixels @ 60Hz
TFT active matrix
250 cd/m² brightness
Image contrast ratio: 800:1
Dot Pitch/Pixel pitch: 0.264mm
24 bit (16.7 million colors
Response time: 5 ms
17" Vertical/Viewable
Height: 15" (381 mm)
Assembly Notes 1. Monitor shipped separate in original Dell packaging for safe transit.
2. Minimal assembly is required to attach the LCD monitor.
