| Product Name | P/N: | Availability | Price | Qty |
|---|---|---|---|---|
| 2Post Rackmount KVM without Monitor | 2UKVM-125-2-000 |
In stock
|
$439.99
|
|
| 2Post Rackmount KVM, plus 17" Monitor | 2UKVM-125-2-17V |
In stock
|
$639.99
|
|
| 2Post Rackmount KVM, plus 19" Monitor | 2UKVM-125-2-19V |
In stock
|
$689.99
|
Features
The rackmount monitor kit allows you to install a standard, flat panel monitor into a rack in a cost efficient manner. The kit supports flat panel monitors with 75 mm or 100 mm hole patterns. The rackmount monitor kit may be installed in racks with an installation depth from 15.5" - 31.5" (394 - 800 mm). Compatible with most KVM switches. USB conversion cable is included.
2Post Rackmount KVM - Technical Specifications
| Interface | PS/2 and VGA interface available from KVM Switch |
| Rack Units | 2U |
| Rack Type | 2Post center mount 2Post flush mount |
| Rack Type | 2Post |
| Included Hardware | 10-32 and 12-24 Screws Cage nuts provided for square hole racks |

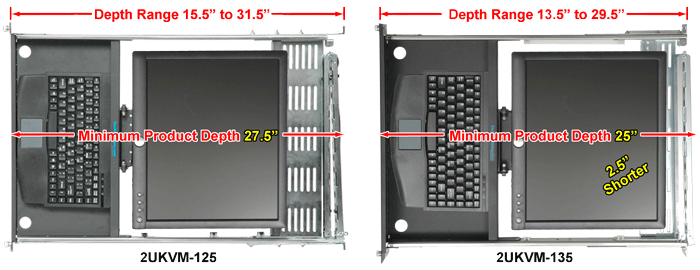

| Mounting Depth Range | 15.5" to 31.5" (394 - 800 mm) |
| Rail Type | 28" travel (394 mm) Ball bearing slides |
| Overall Installation Depth | 31" Minimum (787 mm) |
| Cable Management | Articulated cable management arm |
| VESA Mount | 100 mm or 75 mm
VESA hole patterns (required) Most LCD display have a four hole VESA mounting holes on the back The VESA holes may be hidden by the display stand |
| Monitor Width | LCD display width: 17.5" (444.5 mm) maximum 15", 17" or 19" (381 mm, 432 mm or 483 mm) LCD displays typically fit |
| Monitor Thickness | LCD display thickness: 2.75" (70 mm) maximum Exceeding this thickness will require more than 2U of rackmount space |
| Monitor Specs | 17” (432 mm) monitor specs Monitor is Dell E170S (optional) Height 15" Width 14.8" 1280 x 1024 pixels @ 60Hz max resolution TFT active matrix 250 cd/m² brightness 800:1 image contrast ratio Signal input VGA 19” (483 mm) monitor specs Dell E190S (optional) Height 16.2" Width 16.3" 1280 x 1024 pixels @ 75Hz max resolution TFT active matrix 300 cd/m² brightness 800:1 image contrast ratio Signal input VGA |
| Keyboard Specs | PS/2 or USB USB Interface requires the use of an included adapter 88/89 Keys have the functionality of a 104/105 rack mount keyboard Embedded numeric keypad and 12 dedicated function keys |
| Assembly Notes | Fully assembled except for optional monitor |
