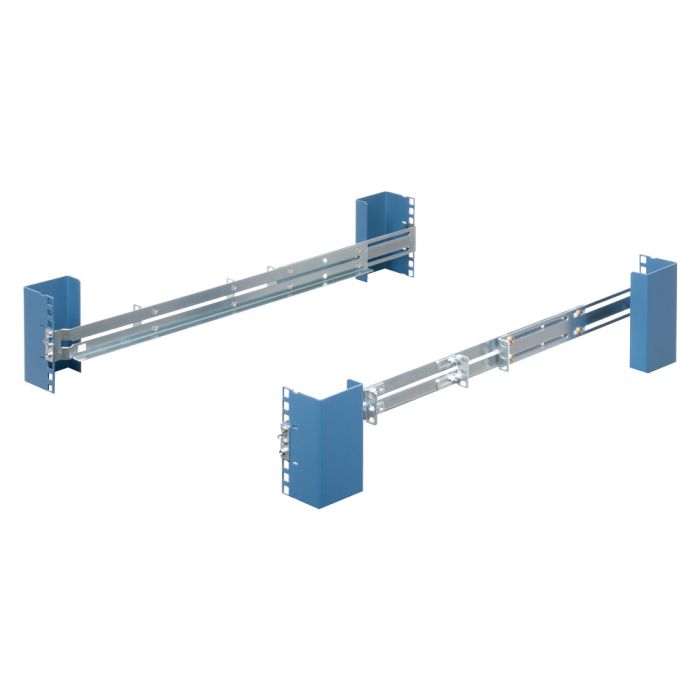

1U 110-F Fixed Rail for Dell
$129.99
In stock
SKU
1UBRK-R4
Dell R210, R310, R410, R415 and NX300 Compatible
- Compatible with 11th Generation 1U Dell PowerEdge Servers
- Square, round, threaded holes
- Mounting depth of 13 - 31.5" (330 - 800 mm)
- Supports L, C, and ? (opens in a new tab) rack upright shapes
- Dell rail not required
Fits in any 2 or 4Post Rack
- Works with square, round and threaded holes 4Post racks
- 2Post center or flush mount
- Center or flush mounts in Telco, relay racks
The Dell PowerEdge R410, R415, R310, R210, PowerVault NX300 Fixed Rails are compatible with 4Post or 2Post rack rails. They work with square, round, or threaded hole racks. These rack rails offer a mounting depth range of 13 - 31.5" (330 - 800 mm). The front mounting flange of the rail kit engages the Dell server's slam latch.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 4.000000 | Country of Manufacture | United States | OEM Compatibility | Dell | Generation | 11G, 12G, Gen3 | Product Line | PowerEdge, PowerVault, Precision | Form Factor | Server | U Height | 1U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Fixed | Weight Capacity | 30 - 100 lbs | Dell Part Number | 1UBRK-R4 - A3211789 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Ingram Part Number | 1UBRK-R4 - CC9936 |
|---|
Kit Contents:
- (1) Right Rail Assembly
- (1) Left Rail Assembly
Mounting Hardware:
- (2) Hook Plates (Left & Right)
- (4) 8-32 x .500 Pan Head Screw
- (12) 10-32 x .500 Pan Head Screw
- (12) 12-24 x .500 Pan Head Screw
- (6) 12-24 Cage Nut
- PowerEdge R210
- PowerEdge R220
- PowerEdge R310
- PowerEdge R410
- PowerEdge R415
- PowerVault NX300
- Precision 3930
