| Product Name | P/N: | Availability | Price | Qty |
|---|---|---|---|---|
| Rackmount KVM, Keyboard, without Monitor | 2UKVM-125-4-000 |
In stock
|
$399.99
|
|
| Rackmount KVM, Keyboard, 17" Monitor | 2UKVM-125-4-17V |
In stock
|
$599.99
|
|
| Rackmount KVM, Keyboard, 19" Monitor | 2UKVM-125-4-19V |
In stock
|
$659.99
|
You may also be interested in the following product(s)
| Product Name | P/N: | Availability | Price | Qty |
|---|---|---|---|---|
| Keyboard (only) with Track Pad - PS2 | Keyboard-KVM-PS2 |
In stock
|
$36.99
|
Features
The RackSolutions Rack Mount KVM lets users efficiently mount a keyboard and monitor in server racks with installation depths of 15.5" to 31.5". The Rack Mount KVM is designed to support monitors ranging from 15" to 19", making it a suitable platform for users to install their own flat panel computer monitors. For installation purposes, the monitor must also feature 75 mm or 100 mm holes. The product is available as a standalone rack mount or with a 17" or 19" monitor included. The rail used to support the Rack Mount KVM is a 28" travel server rack rail equipped with ball bearings for extra support and easy slide control. The keyboard that comes with the device features a standard PS2 cable and a USB adapter. It also supports the full functionality of a standard rack mount keyboard and features a standard embedded number pad with numerical keys and 12 function keys. The Rack Mount KVM is compatible with most KVM devices and will ship with the hardware necessary for installation. It comes fully-assembled with the keyboard and monitor cords already routed. The only assembly necessary is the monitor, which will not be assembled with the rest of the device when shipped.
Rackmount KVM - Technical Specifications
| Interface | PS/2 and VGA interface available from KVM switch |
| Rack Units | 2U |
| Rack Type | 4Post |
| Included Hardware | 10-32 and 12-24 Screws Cage nuts provided for square hole racks |

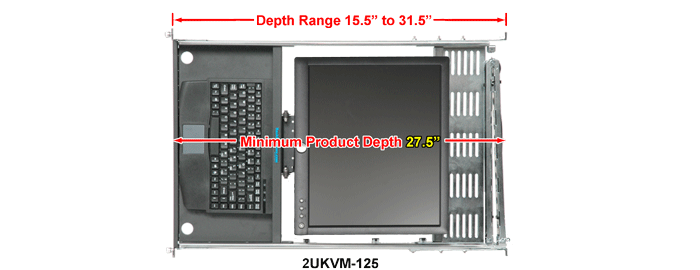

| Mounting Depth Range | 15.5" - 31.5" (394 - 800 mm) |
| Rail Type | 28" travel (394 mm) Ball bearing slides |
| Overall Installation Depth | 31" Minimum (787 mm) |
| Cable Management | Articulated cable management arm |
| VESA Mount | 100 mm or 75 mm VESA hole patterns (required) Most LCD display have 4 VESA mounting holes on the back The VESA holes may be hidden by the display stand |
| Monitor Width | LCD display width: 17.5" (444 mm) maximum 15", 17" or 19" (381 mm, 432 mm or 483 mm) LCD display will typically fit |
| Monitor Thickness | LCD display thickness: 2.75" (70 mm) maximum Exceeding this thickness will require more than 2U of rackmount space |
| Monitor Specs | 17” (432 mm) monitor specs Monitor is Dell E170S (optional) Height 15" x Width 14.8" 1280 x 1024 pixels @ 60Hz max resolution TFT active matrix 250 cd/m² brightness 800:1 image contrast ratio VGA signal input 19” (483 mm) monitor specs Dell E190S (optional) Height 16.2" x Width 16.3" 1280 x 1024 pixels @ 75Hz max resolution TFT active matrix 300 cd/m² brightness 800:1 image contrast ratio VGA signal input |
| Keyboard Specs | PS/2 or USB USB Interface requires the use of an adapter (included) 88/89 keys have the functionality of a 104/105 rack mount keyboard Embedded numeric keypad and 12 dedicated function keys |
| Assembly Notes | Fully assembled, except for optional monitor Power, VGA, and keyboard cables are pre-routed |
