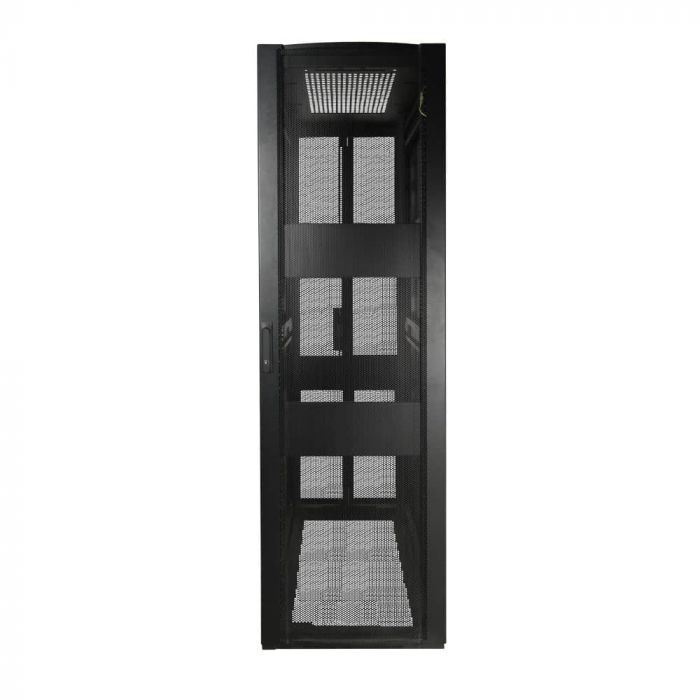

42U Seismic Rack Cabinet 600mm x 1070mm

As low as $0.00
In stock

Data Protection from Seismic Activity

  • 42U with a depth of 1070 mm and a width of 600 mm
  • Outside Dimensions (H x W x D): 78.5" x 23.6" x 42.1" (1994 mm x 600 mm x 1070 mm)
  • 3,000 lbs static weight capacity
  • Meets EIA-310-D and NEBS Seismic Zone 4 requirement standards
  • Integrated tool-less button mounting for vertical PDUs and cable management units
  • Adjustable uprights
  • Integrated grounding system
  • Pre-installed baying kit
  • Doors are perforated for optimum airflow

Seismic-Certified Enclosed Cabinet

  • Single locking front cabinet door with curved surface for added stability
  • Rear door of cabinet is split, making access easier in tight spaces
  • Two pairs of split, locking, and removable side panels made versatile for removing
  • 4 Post 19" rack in EIA-310 compliant square hole punched uprights with rack unit markings
  • Easy to remove cable pass throughs on top panel
  • Two removable cable access panels on top for additional cable entry
  • 1 pair of stabilizing brackets
  • Ships fully assembled

Our 42U Seismic Rack Cabinet is compatible with any EIA 19” standard rack equipment. It has a height of 42U and a width of 600 mm. Inside the rack includes two tool-less PDU cable trays for cable management. Both front and rear doors are lockable, removable, and reversible. The doors are also perforated allowing optimum airflow. The seismic rack is a 4 post enclosure that meets the Telcordia GR-63-CORE Network Equipment & Building Systems (NEBS) requirements for Zone 4 Seismic Earthquake Environments. The rack is constructed in 16 gauge steel. Each rack has a weight capacity of 3,000 lbs.

More Information
Rack Type 4 Post Rack, Enclosed
Hole Type Square
Rack Internal Width 23"
Rack Depth 40" - 50"
Rack Mount Depth 600 mm (23.7")
Included Hardware Yes
RoHS Compliant Yes
TAA Compliant No
