44U Open Frame Server Rack

As low as $0.00
In stock

Please call for shipping rates to Hawaii, Alaska and Puerto Rico.

44U Network Server Rack

  • Universal square holes, cage nuts included
  • Compatible with Dell, HP, IBM, Cisco, and other OEMs
  • EIA 19" Standard Rack

44U of Rackable Space

  • 5" Vertical Cable Management Bar included

  • Streamlined support for power strips and PDUs

  • Casters provide mobility

4 Post Rack For Data Centers

  • 28.875" width, the perfect fit for data centers
  • Flush floor mount spreads load on floor tiles
  • 3000 lbs (1360 kgs) capacity

Vertical Cable OrganizersVertical Cable Organizers

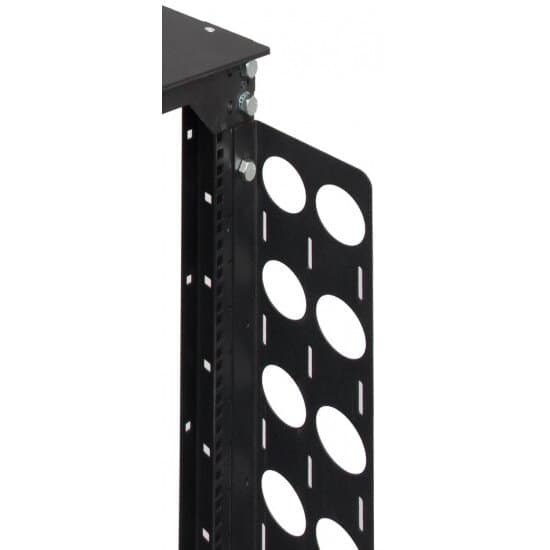

Vertical Cable Management Bar

Keep your cables organized with our Vertical Cable Management Bar. Hassle-free maintenance and improved airflow, you can mount in 8 different locations within the rack (front/rear, right/left, and inside/outside). The management bar supports up to 4 power strips and includes holes for cable pass-thru. Management bar is shared with adjacent racks and features multiple wire tie points. Here is an example of a vertical cable management bar in use.

Rack 111 Caster KitRack 111 Caster Kit

Caster Kit

Casters provide easy rack access in tight spaces and add 1.5" to overall rack height. The maximum capacity on casters is 1200 lbs (544 kg). For safety reasons, this Caster Kit is only recommended on rack heights of 30U or less. For more details, here are our installation instructions.

More Information
Rack Type 4 Post Rack, Open Frame
Hole Type EIA 3/8" (9.5 mm) square hole
Rack Internal Width EIA 19" Standard Rack
Rack Mount Depth 28.875" (733 mm)
Dell Part Number 111-1729 - A0608140
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Tech Notes UL certified
Included Hardware (40) 12-24 cage nuts
(40) 3/8" 12-24 screws
(4) Masonry anchors
(1) Masonry drill bit
Finish Black, textured powder coat
Rack Post Shape J-Form
Assembly Notes 3/4" (19 mm) wrench required
Assembly time is approximately 10 minutes
Rack Outside Dimensions Width =28.875" (733 mm)
Depth = depth kit you select (28.875") plus 7" for the vertical cable bar
Example: 28.875" + 7" = 35.875" depth
Height = 44U (2108 mm)
Rack Casters Optional Caster Kit with a weight capacity of 1200 lbs (544 kg). 111-1731
RoHS Compliant Yes
TAA Compliant Yes
