Rackmount Computer Shelf

Availability: In stock

Rackmount Computer Shelf
  • Rackmount Computer Shelf - Front View - 1USHL-012
    Rackmount Computer Shelf - Front View - 1USHL-012
    close
  • Rackmount Computer Shelf - With PC - 1USHL-012
    Rackmount Computer Shelf - With PC - 1USHL-012
    close
  • Seismic Rackmount Computer Shelf - Front View - 1USHL-012-T
    Seismic Rackmount Computer Shelf - Front View - 1USHL-012-T
    close
  • Seismic Rackmount Computer Shelf - Top View - 1USHL-012-T
    Seismic Rackmount Computer Shelf - Top View - 1USHL-012-T
    close
  • Seismic Rackmount Computer Shelf - Extended in Rack - 1USHL-012-T
    Seismic Rackmount Computer Shelf - Extended in Rack - 1USHL-012-T
    close
Made in America

Rack Shelf Designed for Your PC

  • Center or flush mount configuration options
  • Supports equipment up to 20” (508mm) deep and 17.7” (449.58mm) wide
  • Attached handle cutout for easy slide out - slides up to 22” (558.8mm)
  • Seismic option provides added protection against movement

Fits Most 2-Post Racks

  • Weight Capacity: 45lbs (20kgs)
  • Shelf Depth: 17.75” (450.85mm)
  • Works with 1” (25mm) to 17” (423mm) deep racks
  • Compatible with round, threaded, or square rack holes
See "Additional Information" for Technical Specifications
Rack Solutions Promise
Product Name SKU Price Qty
Seismic Rackmount Computer Shelf 1USHL-012-T
$172.98
Rackmount Computer Shelf 1USHL-012
$164.99
Description

Details

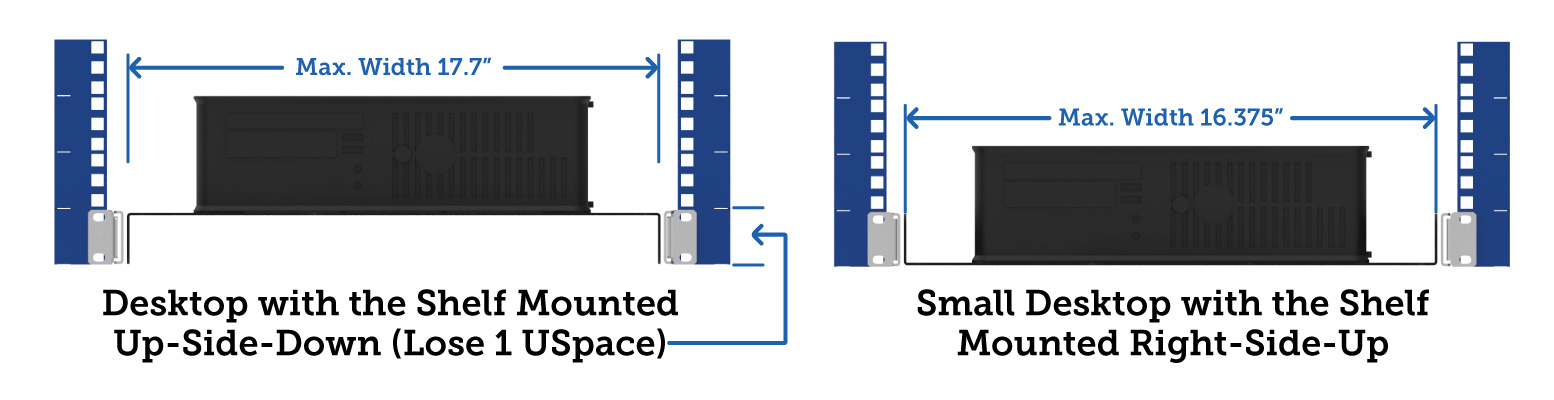

Depth Options

Rackmount Computer Shelf

RackSolutions Rackmount Computer Shelf is the perfect product to house your PC in a server rack. Our shelf is compatible with most 19" 2Post racks and occupies only 2U spaces. It can hold computers or IT equipment weighing up to 45lb (20kgs). Our shelf is designed to support computer desktops and workstations up 20" in length and 17.7" wide. Our seismic option provides added protection to prevent your personal computer from being damaged during transportation or unintentional movement. The slotted design of our shelf is engineered to increase airflow to your PC.

Additional Information

Additional Information

Assembly Notes Phillips head screwdriver required
Equipment Depth 17.75” (450.85mm)
Shelf Type Vented
Rack Type 2 Post
Fixed/Sliding Sliding
Shelf Surface Area 18.78" x 17.75"
477.012mm x 450.85mm
Finish Black, textured powder coat
Mounting Depth Range 20” (508mm)
Included Hardware Cable management arms included
Weight Capacity 45lbs (20kgs)
Rack Units 2U
Tool-less/Standard Standard
Hole Type Round, Threaded, or Square
RoHS Compliant Yes
