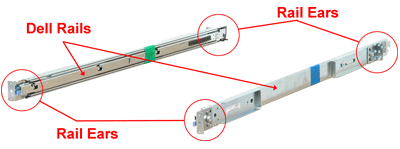

The PE1950 Rail Kit replaces the rotating assembly on the ends of the Dell Rail Kit. This kit should be used in circumstances where the Dell Rail Kit cannot be installed due to some type of obstruction. The most common type of obstruction that this kit resolves is installations that use a "C" channel ServerRack.
- Additional Information
Compatibility Dell PowerEdge 1950 Rail OEM Dell Fixed/Sliding Fixed Included Hardware
- (2) "A" Conversion Brackets
- (2) "B" Conversion Brackets
- (5) Keps Nuts
- (4) 1U Square Hole Alignment Bar
- (8) Screws, 8-32 x .5"
- (5) Tab Washers
Assembly Notes Phillips Head Screwdriver Required Tech Notes This kit replaces the rotating assembly on the ends of the Dell Rails. It should be used in circumstances where an obstruction is preventing the Dell Rails from being installed. Finish Zinc Plated Rack Units 1U Rack Type 4 Post RoHS Compliant Yes Hole Type Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
TAA Compliant Yes
