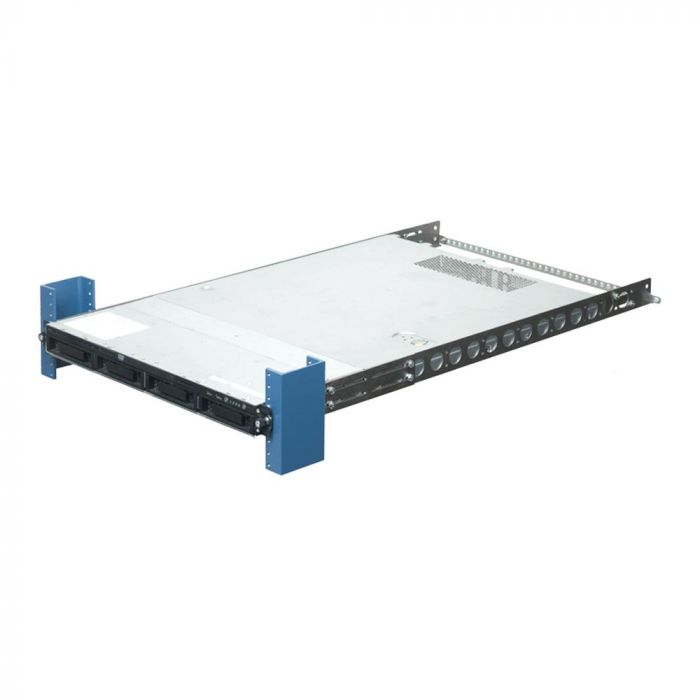

HP DL160 G5 - Rack Mount Rail Guide

HP 1U Universal Rail Kit

The rail kit supports square or round holed racks.
29.125" or 36" with the rear slotted retainer bracket.
23" to 36" without the rear slotted retainer bracket.

2Post center mount

1. Use fixed rail kit BRK-HP-2PC-001

2Post flush mount

1. Use fixed rail kit BRK-HP-2PF-001

4Post square,round and threaded racks

1. Use the HP universal rail kit
2. For compatibility issues use P/N: BRK-HP-4P-001

Wall Mounting

1. Use HP Universal Rail Kit
2. Use 1URACK-110 Wall Mount Kit

Rack Issues, Problems

1. Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
