HP DL320 G2 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP DL320 G2 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis.

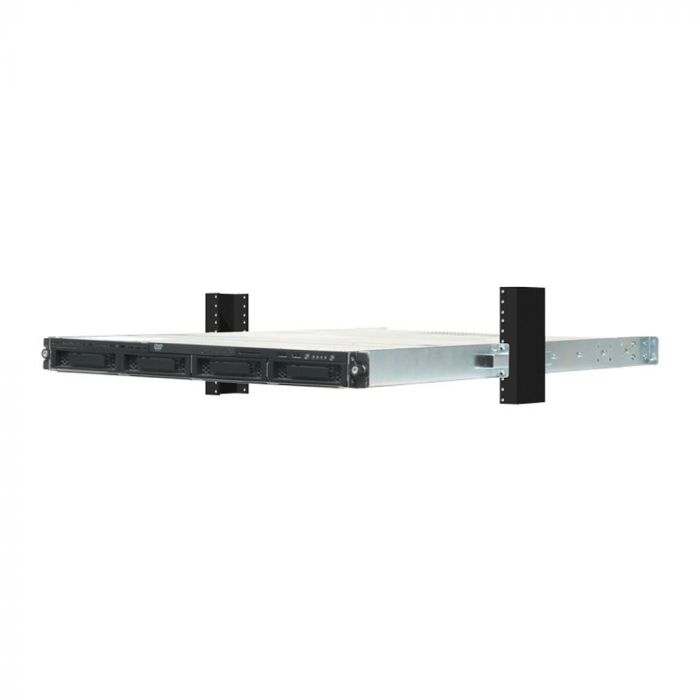

Note: Your server may look different than the one pictured


+ HP Quick-Rails
The server ships with Fixed Rails which support several rack options
+ Sliding Rail Option
The Slide Rail option is for square holed racks with an installation depth of approximately 29"
+ 2Post Rail Option
The 2Post Rail option supports uprights from 3" to 6.5"
+ 3rd Party Rail Option
The 3rd Party Rail option supports round or square holed racks with an installation depth from 28" to 33"
+ 2Post center mount
Use the HP 3rd party rail kit, and convert 2U of 2Post rack to 4Post using 2POST-2UKIT
+ 2Post flush mount
Use the HP 3rd party rail kit and 4UKIT-003 (4 servers per 4U kit)
+ 4Post square hole racks
Use the HP Quick-Rails for Compaq square hole racks only. (29.12" mounting depth)
Use the HP 3rd party rail kit for all other square hole racks
Cage nuts are required
+ 4Post round hole racks
Use the HP 3rd party rail kit
+ 4Post threaded hole racks
Use the HP 3rd party rail kit
+ Double 2Post Racks
Use the HP 3rd party rail kit
+ Wall Mounting
Use HP Universal Rail Kit
Use 1URACK-110 Wall Mount Kit
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
