Front view 4Post with server - HP DL320G5P Fixed Rails

 Front view 4Post with server - HP DL320G5P Fixed Rails

Hover to View, Click to Zoom

  • Rear view 4Post with server - HP DL320G5P Fixed Rails

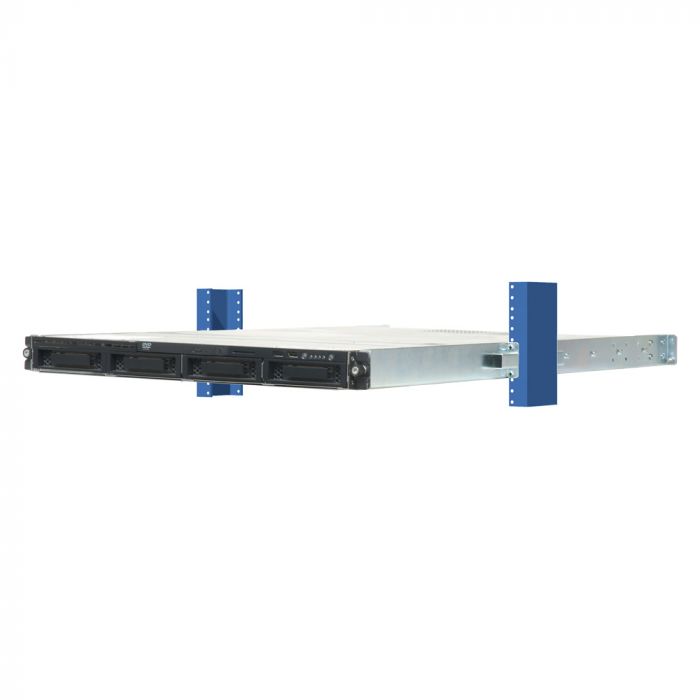

  • Side view, 2Post center mount with server - HP DL320G5P Fixed Rails
  • Rear view, 2Post center mount with server - HP DL320G5P Fixed Rails

HP DL320 G5P, DL320S, DL160 G6 Rack Rails

Fits any 4Post,2Post rack

  • Square, round, threaded holes
  • Supports L, C, Z, and ? rack upright shapes
  • HP standard rail kit not required

4Post Mounting

  • 4Post Mounting :Requires the P/N: BRK-HP-4P-001

2Post Mounting

  • 2Post Center Mount : Requires the P/N: BRK-HP-2PC-001
  • 2Post Flush Mount: Requires the P/N: BRK-HP-2PF-001

Be the first to review this product

Items in stock ship out today if you complete your order in the next 7 hours and 46 minutes!
Product Name P/N: Availability Price Qty
2Post Centermount Rails for HP DL320 G5P, DL320S, DL160, DL360 G6/G7 BRK-HP-2PC-001
In Stock
$119.99
2Post Flushmount Rails for HP DL320 G5P, DL320S, DL160 BRK-HP-2PF-001
In Stock
$129.99
4Post Rails for HP DL320 G5P, DL320S, DL160 BRK-HP-4P-001
In Stock
$114.99

Features

These three rail kits allow the HP DL320 G5P to be installed into any type of server rack. These rail kits replace the HP rail kits that would normally come with the sever. The rail kits are compatible with several of the HP servers such as the DL320S and the DL160. These rail kits allow the DL320G5P to be installed into a typical 4Post server racks as well as 2Post server racks in both the center mount and flush mount configurations.

HP DL320 G5P, DL320S, DL160 G6 Rack Rails - Technical Specifications

Rail OEM HP
Server Compatibility HP DL320G5P
HP DL320S
HP DL160 G6
Rack Type BRK-HP-2PC-001: 2Post center mount
BRK-HP-2PF-001: 2Post flush mount
BRK-HP-4P-001: 4Post
Rack Type 4Post, 2Post
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
Rail Type Fixed rail, non-ball bearing slides
Rack Units 1U
Mounting Depth Range 4Post rack dimensions: Compatible with server rack depths from 3" (76.2 mm) to 32.5"(825.5 mm)
2Post rack dimensions: Compatible with relay racks with upright dimensions of 3" (76.2 mm)
Cable Management Cabling crossbar is included
Included Hardware All necessary hardware is included
Finish Zinc plated
Tech Notes This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack
Assembly Notes Phillips head screwdriver required
