HP DL360 G4 - Rackmount Rail Guide

In stock
Grouped product items
Product Name SKU Qty
1U, Universal Rack Rails
2U, 2Post Conversion Kit
4U Flush Mount Conversion Kit for 2Post Racks

Our Rackmount Rail Guide serves to show how the HP DL360 G4 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 1UKIT-109 and 4UKIT-003 as mounting solutions for this server chassis.

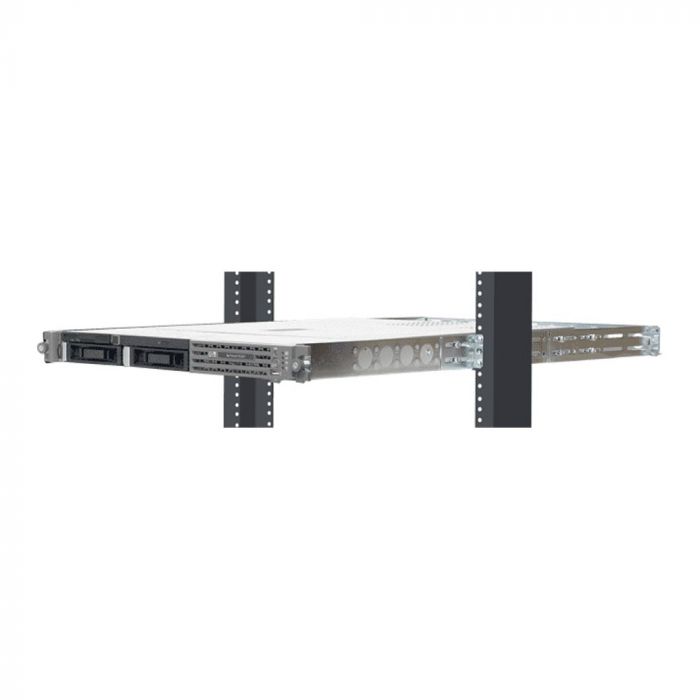

Note: Your server may look different than the one pictured

 + HP Standard 1U Universal Rail Kit

The standard rail kit supports square or round holed racks with an installation depth of 22.25" - 37.75"

 + 2Post center mount

Use the HP 3rd party rail kit. Convert 2U of 2Post rack to 4Post using 2POST-2UKIT (One kit mounts two servers)

 + 2Post flush mount

Use the HP 3rd party rail kit and 4UKIT-003 (4 servers per 4U kit)

 + 4Post square hole racks

Use the HP standard 1U universal rail kit for HP square racks. (29.12" mounting depth)

If you don't have the HP rails, use replacement rails 1UKIT-109

 + 4Post round hole racks

Use replacement rails 1UKIT-109

 + 4Post threaded hole racks

Use replacement rails 1UKIT-109

 + Double 2Post racks

Use replacement rails 1UKIT-109

 + Wall Mounting

Use HP Universal Rail Kit

Use 1URACK-110 Wall Mount Kit

Rack Issues, Problems

Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
