HP DL380 G1 - Rackmount Rail Guide

Out of stock
Grouped product items
Product Name SKU
2U Conversion Bracket 4-Pack (3in Uprights) 2U Conversion Bracket 4-Pack (3in Uprights)
$139.99
2POST-2UKIT
3U Universal Rail 24in (D) with Wirebar 3U Universal Rail 24in (D) with Wirebar
$159.99
3UKIT-109
2U 2Post Universal Rail 24in (D) with Wirebar 2U 2Post Universal Rail 24in (D) with Wirebar
$169.99
2UKIT-009

Our Rackmount Rail Guide serves to show how the HP DL380 G1 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 3UKIT-109 and 2UKIT-009 as mounting solutions for this server chassis.

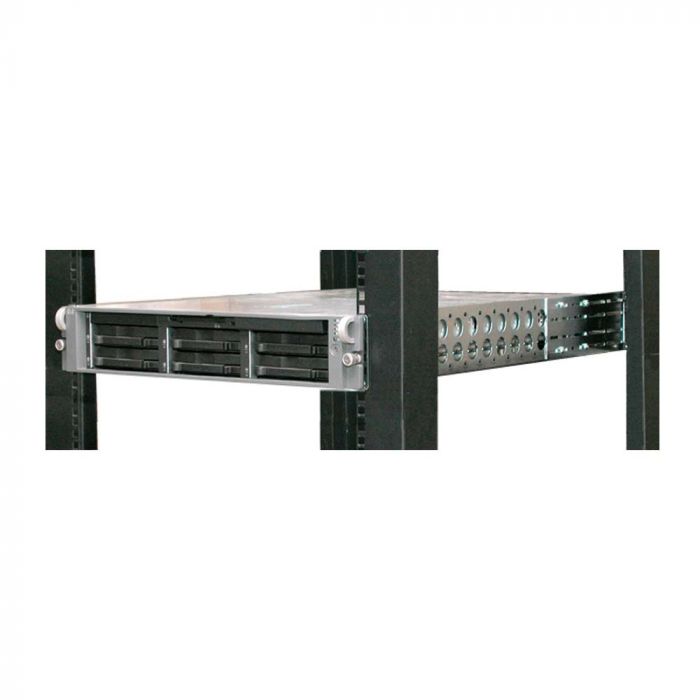

Note: Your server may look different than the one pictured

+ HP Standard Sliding Rails

Used for HP square hole racks only (29.12" mounting depth)

+ 2Post center mount

Use the 2UKIT-009 fixed rail kit and convert 2U of 2Post rack to 4Post using 2POST-2UKIT (1 kit mounts 1 server)

+ 2Post flush mount

Use the 2UKIT-009

+ 4Post square hole racks

Use the standard rails for HP and 4Post square hole racks only. (Mounting depth range is 28 7/8" to 29 1/8")

Use the 3UKIT-109 for all other depth 4 Post square hole racks (mounting depth 3" to 31 9/16")

+ 4Post round hole racks

Use the 3UKIT-109 (mounting depth 3" to 31.56")

+ 4Post threaded hole racks

Use the 3UKIT-109 (mounting depth 3" to 31.56")

+ Double 2Post racks

Use the 3UKIT-109 (mounting depth 3" to 31.56")

+ Wall Mounting

Use HP Universal Rail Kit

Use 1URACK-110 Wall Mount Kit

Rack Issues, Problems

Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
