HP DL380 G6 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP DL380 G6 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis.

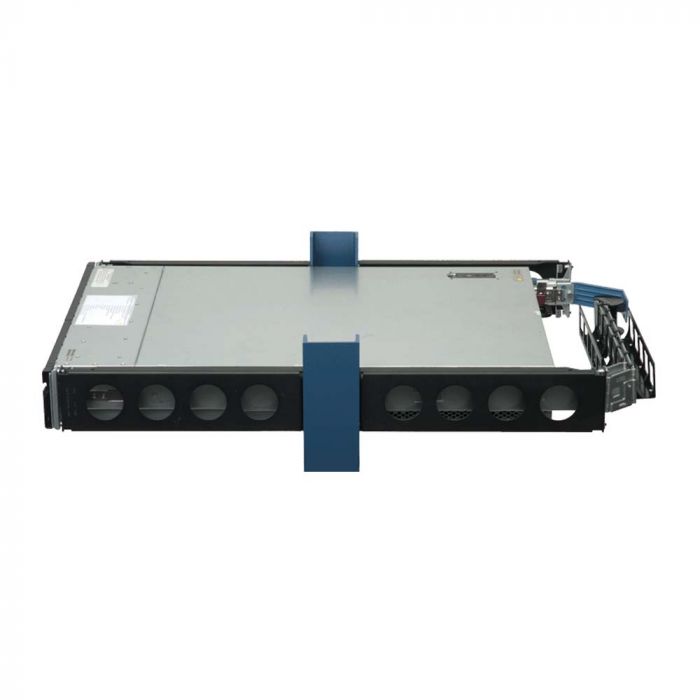

Note: Your server may look different than the one pictured


+ HP Standard 2U Universal Rail Kit
Used for Most 19" 4Post Racks.
Compatible with both square and round holed racks.
Rack mounting depth must be between 23 11/16" and 36 3/8"
+ 2Post center mount racks
Use the HP standard 2U universal rail kit. Convert 2U of 2Post rack to 4Post using 2POST-2UKIT (One kit mounts one server)
Compatible with upright depths from 3 - 10"
For HP alternative use our 2UKIT-009
+ 2Post flush mount racks
Use the HP standard 2U universal rail kit
Convert 4U of the 2Post rack to a 4Post rack using 4UKIT-003 (two servers per 4U kit)
Compatible with upright depths from 3 - 10"
+ 4Post racks
Use HP's Quick deploy rail system (no RackSolutions product needed)
Tool-free support for racks with square or round mounting holes
Adjustment range of 24 - 36" (610 - 914 mm)
For HP alternative use our 2UKIT-109
+ Wall Mounting
Use HP Universal Rail Kit
Use 2URACK-110 Wall Mount Kit
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
