HP DL580 G1 - Rackmount Rail Guide

In stock
Grouped product items
Product Name SKU Qty
2U, 2Post Conversion Kit
$139.99
2POST-2UKIT
4U, Flush Mount, Conversion Kit for 2Post Racks
$199.99
4UKIT-003

Our Rackmount Rail Guide serves to show how the HP DL580 G3 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis

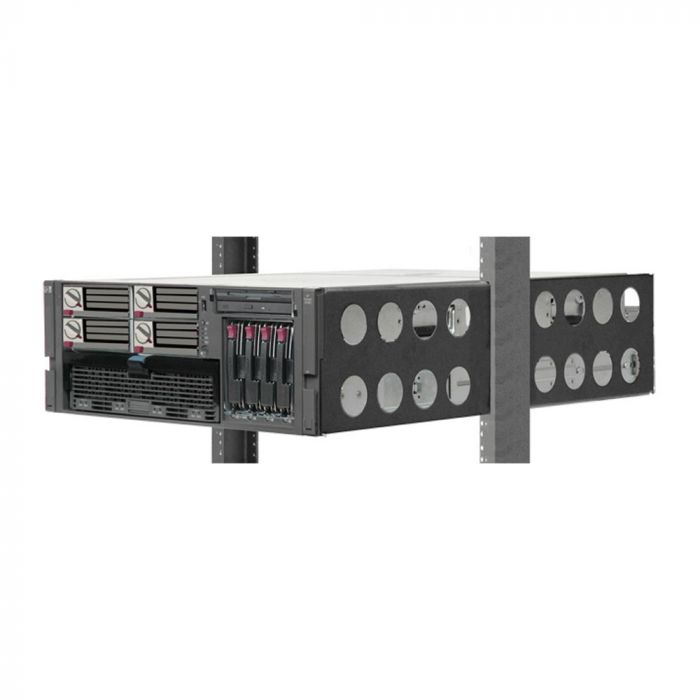

Note: Your server may look different than the one pictured

+ Rail Options

Call for Support

+ 2Post center mount

Convert 4U of 2Post rack to 4Post using 2POST-2UKIT (one kit mounts one server)

Compatible with upright depths from 3 - 6" (76 - 152 mm)

+ 2Post flush mount

Convert 4U of 2Post rack to 4Post using 4UKIT-003 (one kit mounts one server)

Compatible with upright depths from 3 - 6" (76 - 152 mm)

+ 4Post square hole racks

Use the HP standard 3U - 7U universal rail kit

Call RackSolutions for depths less than 23 3/4"

+ 4Post round hole racks

Use the HP standard 3U - 7U universal rail kit

Call RackSolutions for depths less than 23 3/4"

+ 4Post threaded hole racks

Use the HP standard 3U - 7U universal rail kit

Call RackSolutions for depths less than 23 3/4"

+ Double 2Post racks

Use HP Standard Quick-Rails

Call RackSolutions for depths less than 23 3/4"

Rack Issues, Problems

Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
