HP DL580 G2 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP DL580 G2Â can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis.

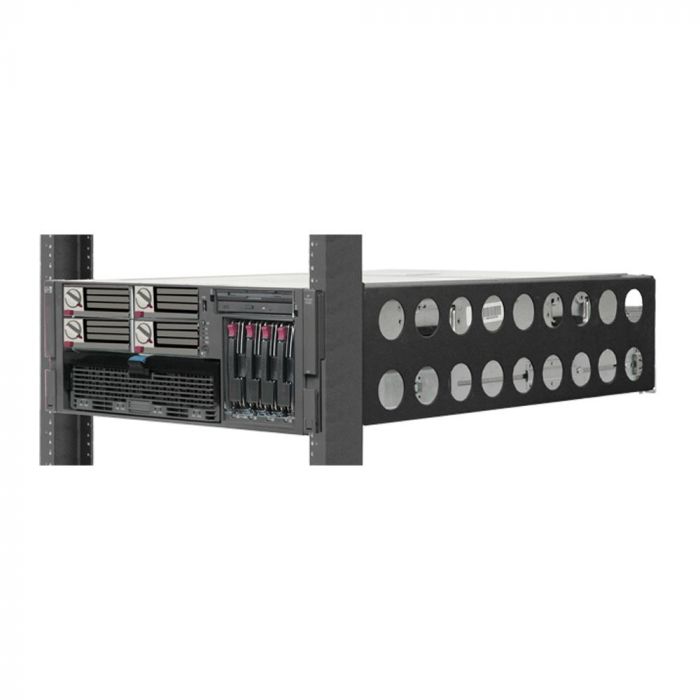

Note: Your server may look different than the one pictured


+ HP Standard Sliding Rails
Used for Most Square Hole Racks, Round Hole Racks, or Threaded Hole Racks
Rack mounting depth must be between 23 3/4" and 35 3/8"
+ 2Post Center Mount
Convert 4U of 2Post rack to 4Post using 2POST-2UKIT (one kit mounts one server)
Compatible with upright depths from 3 - 6" (76 - 152 mm)
+ 2Post Flush Mount
Convert 4U of 2Post rack to 4Post using 4UKIT-003 (one kit mounts one server)
Compatible with upright depths from 3 - 6" (76 - 152 mm)
+ 4Post Square Hole Racks
Use the HP standard 3U - 7U universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ 4Post Round Hole Racks
Use the HP standard 3U - 7U universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ 4Post Threaded Hole Racks
Use the HP standard 3U - 7U universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ Double 2Post Racks
Use the HP standard 3U - 7U universal rail kit
Call RackSolutions for depths less than 23 3/4"
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
