HP DL580 G4 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how to rack a HP DL580 G4 both 4 post and 2 post configurations. RackSolutions offers the 3UKIT-009 / 3UKIT-109 as an HP alternative rail for this server chassis, The rail kits mount in both 2 post and 4 post racks respectively.

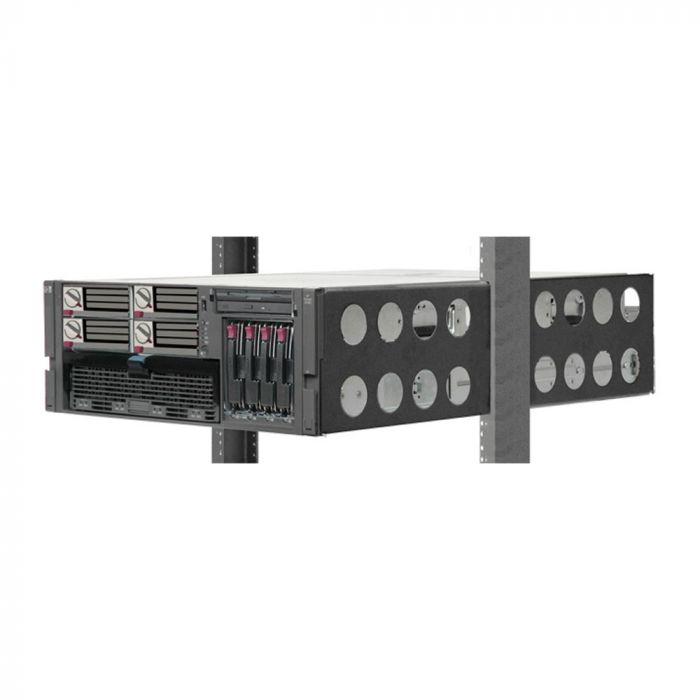

Note: Your server may look different than the one pictured


+ HP Standard 3U-7U Universal Rail Kit
Used for Most Square Hole Racks, Round Hole Racks, or Threaded Hole Racks
Rack mounting depth must be between 24" and 36".
+ 2Post center mount
Convert 4U of 2Post rack to 4Post using 2POST-4UKIT (one kit mounts one server)
Compatible with upright depths from 3 - 6" (76 - 152 mm)
+ 2Post flush mount
Convert 4U of 2Post rack to 4Post using 4UKIT-003 (one kit mounts one server)
Compatible with upright depths from 3 - 6" (76 - 152 mm)
+ 4Post square hole racks
Use the HP standard 3U - 7U universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ 4Post round hole racks
Use the HP standard 3U - 7U universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ 4Post threaded hole racks
Use the HP standard 3U - 7U universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ Double 2Post racks
Use the HP standard 3U - 7U universal rail kit
Call RackSolutions for depths less than 23 3/4"
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
