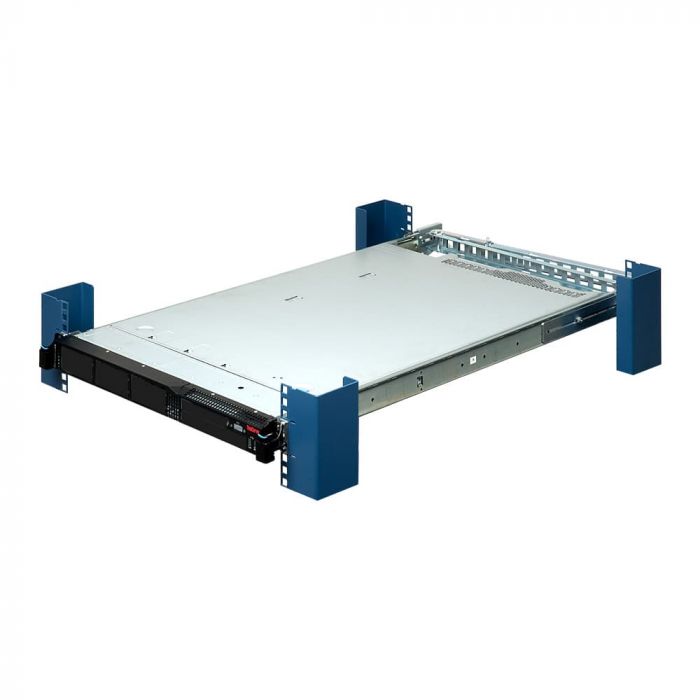

Front view with server - IBM x3550 M2, x3650 M2, x3650 M3 Slide Rails

 Front view with server - IBM x3550 M2, x3650 M2, x3650 M3 Slide Rails

Hover to View, Click to Zoom

  • Front view with server - IBM x3550 M2, x3650 M2, x3650 M3 Slide Rails
  • Side view with server and CMA - IBM x3550 M2, x3650 M2, x3650 M3 Slide Rails
  • Rear view with server and CMA - IBM x3550 M2, x3650 M2, x3650 M3 Slide Rails
  • Rear view with server - IBM x3550 M2, x3650 M2, x3650 M3 Slide Rails

IBM x3550 M2, x3650 M2, x3650 M3 Slide Rails

P/N: 1URAIL-IBM-3X50, 1URAIL-IBM-3X50-CMA

Works with 4Post, 2Post and Double 2Post Racks

  • Allows xSeries 3550, 3650 M2, 3650 M3 to mount in most racks
  • Supports various upright shapes such as "C", "Z", and "?" shapes
  • This slide rail kit replaces the IBM supplied slide rails
  • This kit also supports shallow racks without cable management
  • Available with or without (CMA) cable management arm

Alternate Mounting

Be the first to review this product

Items in stock ship from our warehouse tomorrow!
Product Name P/N: Availability Price Qty
IBM X3550 M2, X3650 M2, x3650 M3 Rails 1URAIL-IBM-3X50
In Stock
$169.99
IBM X3550 M2, X3650 M2, x3650 M3 Rails with CMA 1URAIL-IBM-3X50-CMA
In Stock
$194.98
CMA for IBM X3550 M2, X3650 M2, x3650 M3 Rails 1UARM-IBM-3X50
In Stock
$24.99

You may also be interested in the following product(s)

Product Name P/N: Availability Price Qty
2 Post, Center Mount Conversion, 2U-7U
In Stock
Starting at:
$139.99

IBM x3550 M2, x3650 M2, x3650 M3 Slide Rails - Technical Specifications

Rail OEM IBM
Server Compatibility IBM xSeries 3550 M2
IBM xSeries 3650 M2
IBM xSeries 3650 M3
Rack Type 4 Post 19" Rack (Server Racks, Equipment Racks, Cabinet Racks and Open Frame Racks)
2 Post 19" Relay Racks, 2 Post Racks, Telco Racks
Center Mount (2POST-2UKIT) or Flush Mount (4UKIT-003)
Rack Depth 2" - 5", 2" - 8.5" with -EXT kit
Hole Type 4 Post
Compatible with industry standard 3/8" square hole racks.
Compatible with all standard round (non-threaded) holes.
Compatible with all standard threads including 10-32, and 12-24.
2 Post
Compatible with all standard threads including 10-32, 12-24 and metric M6
Rail Type Sliding - High quality ball bearing type
Rack Units 1U
Mounting Depth Range 18" - 31.5" (457 - 800 mm)
Please contact RackSolutions for solutions outside the listed depth range
Cable Management Optional Cable Management Arm
Included Hardware Includes screws, cage-nuts, and nuts for all standard rack types
Tech Notes Standard "L" shaped uprights or non-standard "C", "Z" and "?" shapes
Front flange to door 1.50" (38 mm) minimum
Rear flange to door 4.25" (108 mm) max with cable management
