IBM x300, x305, x306, x325, x330, x330DC, x335 Slide Rails

1URAIL-IBM-335

Availability: In stock

IBM x300, x305, x306, x325, x330, x330DC, x335 Slide Rails
  • Front view 4post - IBM x335 Rails
    Front view 4post - IBM x335 Rails
    close
  • Front view 2post center mount - IBM x335 Rails
    Front view 2post center mount - IBM x335 Rails
    close
  • Front view 2post center mount - IBM x335 Rails
    Front view 2post center mount - IBM x335 Rails
    close
  • Front view 2post flush mount - IBM x335 Rails
    Front view 2post flush mount - IBM x335 Rails
    close
  • Detail view - IBM x335 Rails
    Detail view - IBM x335 Rails
    close
Made in America

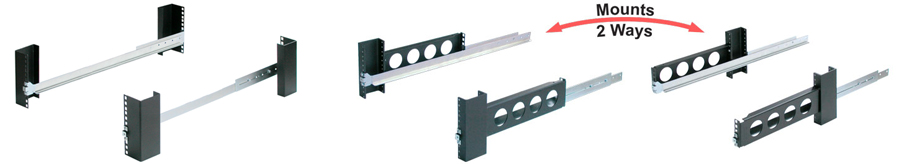

Fits any 4Post or 2Post rack

  • Square, round, threaded holes
  • Alternative to IBM rail kit
  • Adjustable mounting depth of 15.9 - 34" (403 - 870 mm)
  • Supports L, C, Z and ? rack upright shapes

4Post mounting

  • Purchase P/N: 1URAIL-IBM-335
Rack Solutions Promise
Product Name SKU Price Qty
IBM x300, x305, x306, x325, x330, x330DC, x335 Slide Rails 1URAIL-IBM-335
$49.99
Description

Details

Features

IBM x335 Rail Kit

The IBM x335 rail kit is compatible with both 4Post and 2Post server racks. Common obstruction issues caused by "C", "Z" and "?" shaped side post are fixed with the use of the IBM x335 rail kit. This rail kit is compatible with several models of IBM servers including: x300, x305, x306, x325, x330, x330DC and x335.

Additional Information

Additional Information

Compatibility IBM x300
IBM x305
IBM x306
IBM x325
IBM x330
IBM x330DC
IBM x335
Rail OEM IBM
Fixed/Sliding Fixed
Tool-less/Standard Standard
Included Hardware All mounting hardware included
Cable Management Not included
Assembly Notes Phillips head screwdriver required
Rail Type Fixed rail, non-sliding
Mounting Depth Range 15.9" - 34.25" (403 - 870 mm)
Tech Notes This rail kit replaces the IBM rail kit.
The rail kit resolves most common installation problems associated with the IBM rail kit.
Threaded front flange mates with the IBM thumb screws (M4x0.7 threads)
4Post standard 19" racks. Meets EIA-310 requirements. Use reducer brackets for 23" and 24" racks.
2Post racks, relay racks, Telco racks.
Compatible with APC, CPI Chatsworth, Bud and most other racks.
Rack depth 1" - 8"
Finish Zinc plated
Rack Units 1U
Rack Type 2 Post , 4 Post
RoHS Compliant Yes
Hole Type 4Post
Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and Metric M6
2Post
Compatible with all standard threads including 10-32, 12-24 and Metric M6
