Light Duty Sliding Equipment Shelf

Limited Stock

Sliding Shelf for Desktops and Workstations

  • Dry slide rails
  • Secure PC with included anti-slip mat and strap
  • Only takes up 1U of rack space

Fits Any 4 Post Rack

  • Weight Capacity: 45 lbs (21 kgs)
  • Shelf Depth: 17.75” (450.6mm)
  • Mounting Depth: 11” - 30" (279mm - 762mm)
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for Tech Specs.

The RackSolutions Sliding Computer Shelf lets users install a desktop PC on a server rack with a 1U sliding shelf for easy accessibility and storage. The Sliding Computer Shelf is designed for compatibility with most standard 19" EIA standard server racks, making it an ideal solution for those trying to mount PCs close to servers, but needing an efficient, space-saving way to do so. The 18.79" (477mm) wide shelf stretches to a depth of 17.75" (450.85mm), letting it support most desktop PCs with plenty of room for space. It also comes equipped with a non-slip mat and strap to keep the device in place while the shelf is slid for use. Our Sliding Computer Shelf is a light-duty sliding shelf with a weight capacity of 45 lbs (21kgs). All of this meets with the shelf's 30" (762mm) extension range to create an easy way to service equipment on the shelf. While such advanced features as seismic and transport options are available to meet specialized deployment needs, the shelf does come with a cable management arm by default. This gives users the ability to professionally route cables from the device to maintain airflow and maximize troubleshooting efficiency.

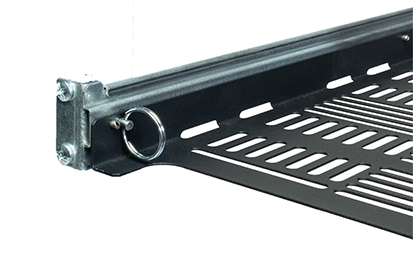

Secured Clevis PinSecured Clevis Pin

Secured Clevis Pin

Keep your shelf locked in place with our clevis pin. This pin can easily be pulled in and out for easy access to the sliding feature of our shelves, as well as keeping the shelf fixed in place.

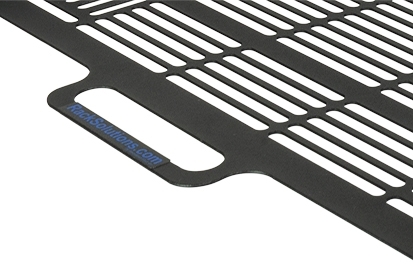

Easy Equipment AccessEasy Equipment Access

Easy Equipment Access

Conveniently access your equipment utilizing the handle located at the front of the shelf. This handle gives you the benefit of getting to your non-rack mountable equipment in the fastest way possible.
More Information
Assembly Notes Equipment is secured via an anti-slip mat and strap to prevent equipment movement
Equipment Depth Maximum shelf depth 17.75"
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 17.75 x 16.375" (451 x 416 mm) L x W
Finish Black textured powder coat
Included Hardware 10-32 & 12-24 screws
Cage nuts are provided for square hole racks
Anti-slip mat and 72" strap
Locking pin with pull ring (3/16 x 11/16)
Weight Capacity 45 lbs (21 kgs) capacity
Rack Units 1U
Tool-less/Standard Standard
Material 13 Gauge US Steel
Amazon ASIN B07FXNL9C7
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes This kit uses a unique "universal racking system" designed to mount in all 4Post rack types.
