105-B Wall Mount for Dell, HP Mini and Zotac

As low as $139.99
In stock

Wall Mount for SFF PCs

  • Wall mounts a PC with monitor for an all-in-one solution
  • Compatible with Dell, HP, and Zotac PCs
  • Open front for easy access to front ports and power button
  • Removable rear cover to limit access to vital rear ports
  • Wall mount bracket supports up to 50 lbs
  • Compatible with monitors using 75 mm and 100 mm VESA hole pattern
  • Includes tilt bracket to adjust the monitor to a more comfortable position
  • All required mounting hardware is included

Compatible Products

  • OptiPlex FX160
  • HP EliteDesk 800 Mini Series
  • HP EliteDesk 800 G4 Mini
  • HP EliteDesk 700 Mini Series
  • HP EliteDesk 705 G4 Mini
  • HP ProDesk 600 G4 Mini
  • HP ProDesk 400 Mini
  • Zotac ZBox B Series
  • Zotac ZBox R Series

Read the Burger King case study to see how they used this wall mount in their kitchen.

NOTE: See "Additional Information" below for all compatible models.

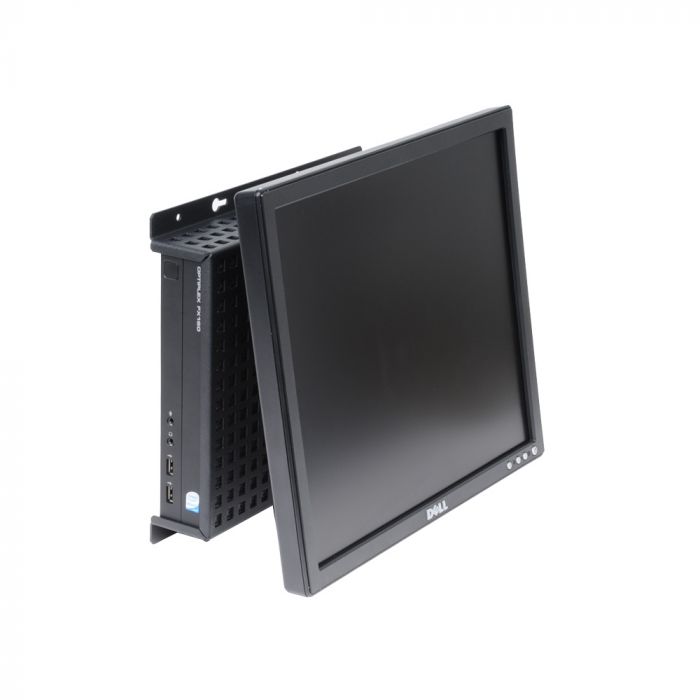

RackSolutions' Dell OptiPlex FX160 / HP EliteDesk 800 Mini Series Wall Mount is designed to mount a range of SFF PCs along with a monitor, creating a space-efficient all-in-one solution. While the mount was designed for Dell's FX160 and HP's EliteDesk 800 Mini Series, the mount is also compatible with the HP EliteDesk 700 Mini Series. Additionally, the wall mount will also work with Zotac ZBox B and R Series PCs. The wall mount is an excellent solution for clearing desk space or for work areas that need to utilize floor space, such as warehouses or cramped backroom work areas. A monitor can be attached to the mount using the VESA hole pattern on the mount, or by using the included tilt bracket, which allows the monitor to be positioned in a more comfortable position. All mounting hardware is included.


VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications GuidesVESA Specifications Guides

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.

More Information
Compatibility Dell, HP
Weight Capacity 50 lbs
Dimensions 10.72" x 12.03" x 2.35" (H x W x D)
With most monitors, the complete assembly will extend approximately
5" - 7" away from the wall.
Rack Type Wall Mount
Finish Powder coated black
Amazon ASIN B00UVKDG8C
Tech Notes Will my monitor work with the monitor wall mount?
VESA mount is compatible with 100 mm or 75 mm VESA hole patterns (this is required).
Most LCD displays have four hole VESA mounting holes on the back.
The VESA holes may be hidden by the display stand.
Width: LCD display width: 17.5" maximum 15" 17" or 19" LCD display typically fit.
Thickness LCD display thickness: 2.75"
RoHS Compliant Yes
TAA Compliant Yes
Included Hardware Four anchors included in kit
Total shear strength 540 lbs (vertical)
Total pullout strength 160 lbs (horizontal)
