HPE ProLiant DL160 Gen10: Specs and Rack Compatibility



The HP Proliant DL160 Gen10 is an entry level server that offers expandability for those who need it down the line. Critics are generally satisfied with its performance considering the lower price.

Upon release, the DL160 g10 listed for around $1000 and comes with only one CPU socket filled. Unlike some entry level Dell servers, the base model’s motherboard has two CPU sockets and with that comes additional memory slots.

ProLiant DL160 Mounting Equipment

ProLiant DL160 Mounting specifications

Chassis Dimensions:

  • Length (depth): 24.21” (614.9 cm)
  • Width: 17.11” (434.6 mm)
  • Height: 1.69” (429 mm)
  • Weight: 34.69 lb maximum

Mounting Requirements:

  • U height: 1U
  • Rack width: 19”
  • Mountable depth: 24” or greater

ProLiant DL160 hardware specifications

  • RAM: Up to 1TB DDR4 / 64GB per slot / 16 slots
  • Storage: Up to 48TB / 4 x 12TB SAS or SATA HDD (hot plug)
  • CPU options: Up to two Intel Xeon Skylake Series processors
  • Power: 2x Flexible Slots (comes with single 500W)
  • Remote management: HPE iLO Remote Management Network Port (1GB)

ProLiant DL160 dimensions and rack compatibility

The ProLiant DL160 chassis is 1 rack units in height, has a depth of 24.2 inches and will fit in standard EIA 19 inch racks

Open Frame Desk Rack
Rails allow for the most efficient use of space when mounting servers.

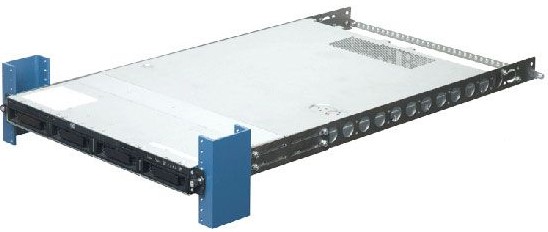

HP DL160 1U rail
Universal rails that have a height of 1U and support up to 29 inches of depth will be compatible with the ProLiant DL160. A benefit of these is the ability to re-use them for different servers or future upgrades. Plus, it’s easy to slide your server in and out of them for maintenance.

universal rails 1U
Other products that will be useful when mounting your server can be found here:
