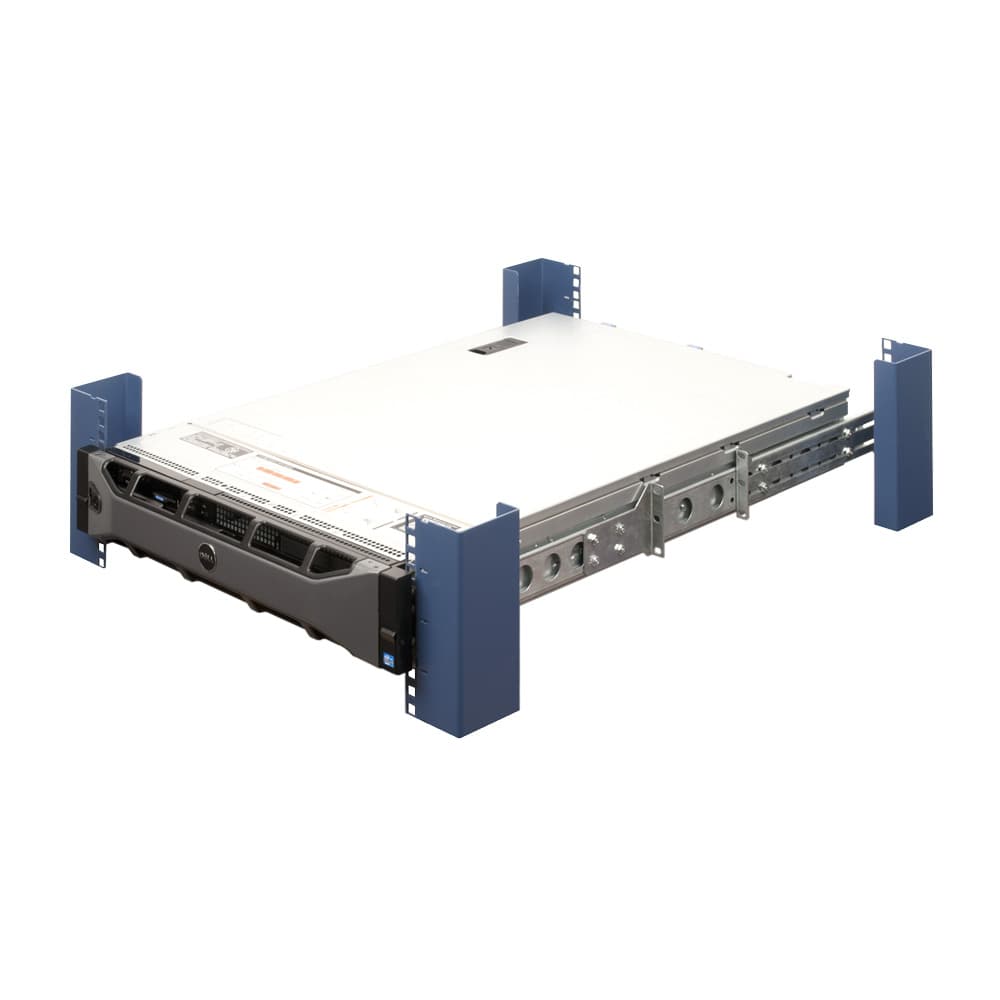

Dell PowerEdge R520, R530 Rack Rails

As low as $129.99
In stock

Fixed Alternative to OEM Rail Kit

4Post Mounting

  • 4Post Deep Mounting depth of 11 - 34" (279 - 864 mm) : Requires the P/N:109-1837

2Post Mounting

  • 2Post Center Mount or Flush Mount: Requires the P/N:109-1872
  • Dell R510 chassis with 12 hard drives require 2UKIT-009 rails

See "Additional Information" for compatibility.


Get custom bezels for this server.

Compatible Dell PowerEdge/Precision Servers

  • Dell PowerEdge Gen 14: R540, R540XD, R7415, R7425
  • Dell PowerEdge Gen 13: R530
  • Dell PowerEdge Gen 12: R520, R820
  • Dell PowerEdge Gen 11: R510

The Dell PE R510 rail kit is a replacement for the Dell rail kit that is provided with the R510 server. The R510 rails work with 4Post server racks. The Dell R510 rail kit is not a ball-bearing rail kit. The Dell R510 rail kit is a fixed rack mounting device.

More Information
Compatibility Dell PowerEdge 13th Generation Servers
Dell PowerEdge R530

Dell PowerEdge 12th Generation Servers
Dell PowerEdge R520

Dell PowerEdge 11th Generation Servers
Dell PowerEdge R510
Dell Part Number 109-1837 - A4644380
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Rail OEM Dell
Fixed/Sliding Fixed
Tool-less/Standard Standard
Included Hardware

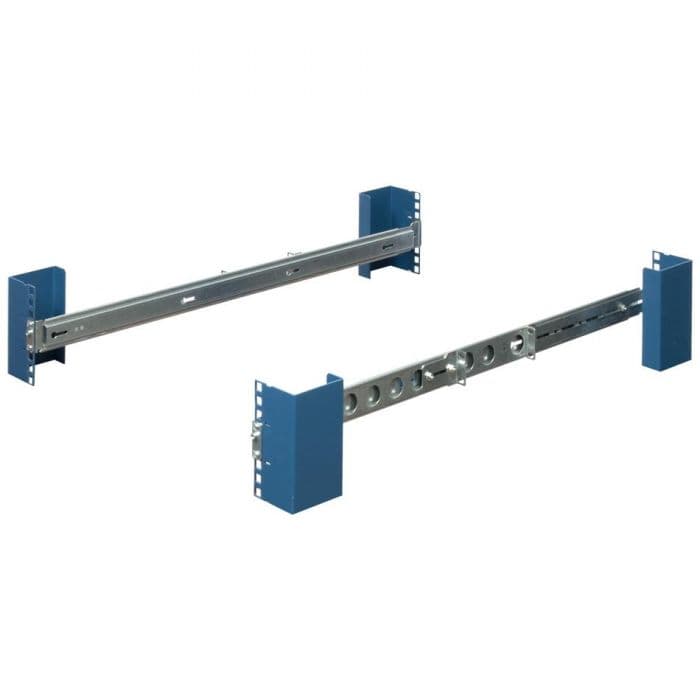

Kit Contents:
(1) Right Rail Assembly
(1) Left Rail Assembly
Mounting Hardware:
(2) Hook Plates (Left & Right)
(6) 8-32 x .500 Pan Head
(8) 10-32 x .500 Pan Head
(8) 12-24 x .500 Pan Head
(8) 2-24 Cage Nut
Assembly Notes Phillips head screwdriver required
Rail Type Fixed
Mounting Depth Range P/N: 109-1685
Pre-set at 26 - 29.35" (660 - 745 mm)
30.1 - 32.5" (764 - 825 mm) range may be attained with a hardware adjustment

P/N: 109-1837
Pre-set at 26.2 - 30.3" (665 - 769 mm)
11 - 34" (279 - 769 mm) range may be attained with a hardware adjustment
Finish Galvanized
Rack Units 2U
Rack Type 2 Post , 4 Post
Amazon ASIN 109-1872 = B00UVK92IA 109-1837 = B0090XVVN8
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
TAA Compliant Yes
