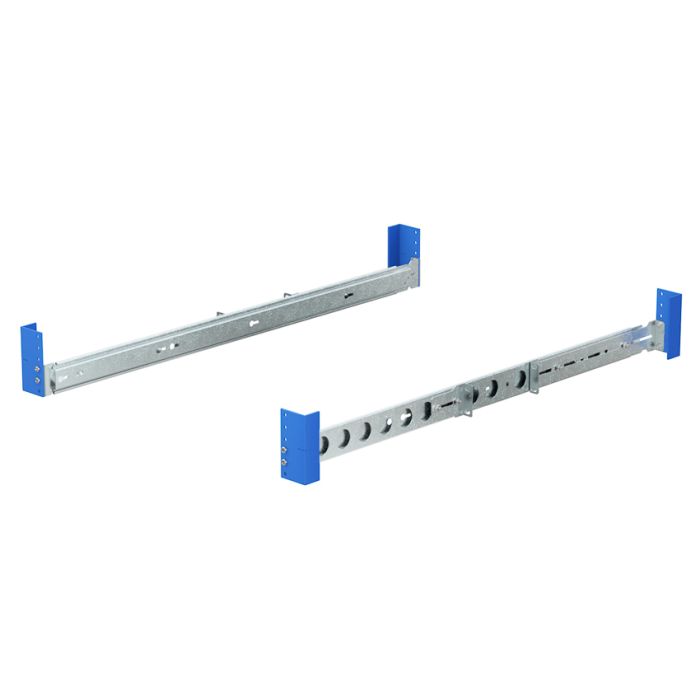

1U Cobra 110-A Dry Slide Rail for Dell
Replaces Dell ReadyRails
- Compatible with 11th - 14th Gen 1U Dell PowerEdge Servers
- Sliding rails extend equipment from the rack to allow for easier servicability
- High-quality dry slide that lasts longer than ball bearing rail kits
- Dell OEM ReadyRail kit not required
- Learn about the Cobra product lineÂ
Installs in both 2-Post and 4-Post racks
- 4-Post Mounting: 20 - 32" (508 - 812.8 mm) Mounting Depth
- 2-Post Mounting: Center mounts in 2-Post racks with 3 - 6" (76.2 - 152.4 mm) uprights
- Works with universal square, round, and threaded hole racks
- Supports L, C, and ? (opens in a new tab) rack upright shapes
- Occupies 1U of rack space
Compatible Dell PowerEdge Servers
- Dell PowerEdge Gen 15: R350, R450, R6515
- Dell PowerEdge Gen 14: R240, R340, R440, R640, R6415
- Dell PowerEdge Gen 13:Â R230, R330, R430, R630
- Dell PowerEdge Gen 12:Â R320, R420, R620
- Dell PowerEdge Gen 11: R310, R410, R415
- Dell PowerVault: NX300, NX400, NX440
- Compatible with most Dell EMC VxRails
Alternative to Dell ReadyRails
The 1U Cobra 79 Rail for Dell can provide a stable, sturdy and easy-to-install sliding rail solution for Dell-compatible server racks. These slide rails are compatible with standard 19" EIA-310 server racks, and can work with either 2 post or 4 post models. In terms of server compatibility, the slide rails are designed for the Dell PowerEdge R320, R330, R410, R415, R420, R620, R630, R230, NX300 and NX400. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 20 - 32" (508 - 812.8 mm) in 4 Post and 3 - 6" (76.2 - 152.4 mm) in 2 Post. This rail kit is not a ball-bearing rail kit.
2-Post and 4-Post Compatibility
Unlike the Dell OEM Rail Kit, RackSolutions' rail kit rack mounts in both 2-Post and 4-Post racks as long as they are 19" EIA 310 server racks. The rail kit also works with threaded, round, and universal square holes. In 4-Post Racks, the mounting depth is adjustable 20 - 32" (508 - 812.8 mm).
| Weight (lbs) | 4.200000 |
|---|---|
| Country of Manufacture | United States |
| Compatibility | Dell PowerEdge 15th Generation Servers Dell PowerEdge R450 Dell PowerEdge R6515 Dell PowerEdge 14th Generation Servers Dell PowerEdge R240 Dell PowerEdge R340 Dell PowerEdge R440 Dell PowerEdge R640 Dell PowerEdge R6415 Dell PowerEdge 13th Generation Servers Dell PowerEdge R230 Dell PowerEdge R330 Dell PowerEdge R430 Dell PowerEdge R630 Dell PowerEdge 12th Generation Servers Dell PowerEdge R320 Dell PowerEdge R420 Dell PowerEdge R620 Dell PowerEdge 11th Generation Servers Dell PowerEdge R415 Dell PowerEdge R410 Dell PowerVault Dell PowerEdge NX300 Dell PowerEdge NX400 Dell PowerEdge NX440 Compatible with most Dell EMC VxRails |
| Dell Part Number | 122-2579 - A6289666 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
| Synnex Part Number | 122-2579 - 4614559 |
| Ingram Part Number | 122-2579 - PP6889 |
| Rail OEM | Dell |
| Fixed/Sliding | Sliding |
| Tool-less/Standard | Standard |
| Included Hardware | 122-2579
|
| Assembly Notes | Phillips head screwdriver required |
| Rail Type | Dry slide rails |
| Mounting Depth Range | 4 Post: 20 - 32" (508 - 812.8 mm) 2 Post: 3 - 6" (76.2 - 152.4 mm) |
| Rack Units | 1U |
| Rack Type | 2 Post , 4 Post |
| RoHS Compliant | Yes |
| Hole Type | Compatible with round, square and threaded racks. |
| TAA Compliant | Yes |
Download 1U Cobra 79 Rail for Dell (122-2579) - Installation Instructions (opens in a new tab)
Download 1U Cobra 79 Rail for Dell (122-2579) - 4 Post Dimensional Drawings (opens in a new tab)
Download 1U Cobra 79 Rail for Dell (122-2579) - 2 Post Center Mount Dimensional Drawings (opens in a new tab)
Download 1U Cobra 79 Rail for Dell (122-2579) - 2 Post Flush Mount Dimensional Drawings (opens in a new tab)
