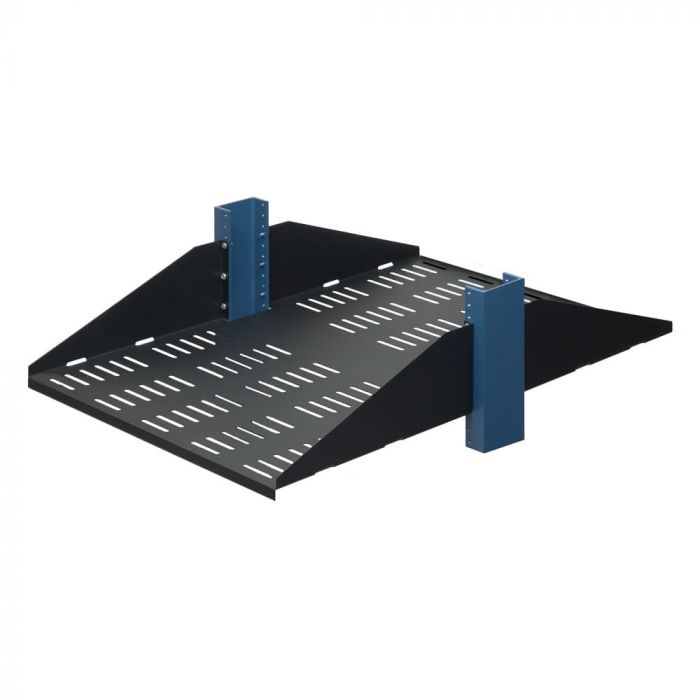

3U 2Post Center Mount Rack Shelf 29in Depth

100 % of 100
As low as $74.99
In stock

Great for Mounting Large Networking and IT Equipment

  • Solid and vented options available
  • Options with equipment stops (flanges) facing up or down
  • Slots for¬†equipment straps¬†along the side of the shelf
  • Center mounts on 2 Post relay and telco racks

Compatible With 2 Post Racks

  • Weight Capacity: 300 lbs (136 kgs)
  • Shelf Depth: 29" (737 mm)
  • Compatible with round, threaded, or square rack holes

Want something more versatile? Check out our configurable or adjustable version.

NOTE: Compatible with 2 Post racks with 3" (76.2 mm) uprights.

RackSolutions 3U 2 Post Relay Rack Shelf has depth of 29 inches (737 mm) and a 300 pound (136 kgs) weight capacity, making it a perfect for solution for mounting large heavy networking IT equipment in a 2Post rack. The shelf features slots along its side used for securing equipment using our equipment straps. Options with flanges, also called equipment stops, facing either up or down to fit a wider variety of needs. Both vented and solid options are available to assist with airflow. Our 2 Post shelves are compatible with most standard EIA 19" 2 post telco and relay racks.

3U 2 Post Relay Rack Shelf Features3U 2 Post Relay Rack Shelf Features

3U 2 Post Relay Rack Shelf Features

RackSolutions 3U 2 Post Relay Rack Shelf is available vented or solid with flanges up or down.

More Information
Dell Part Number 3USHL-022FULL-29DV - A0582030
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Assembly Notes Phillips head screwdriver required
Equipment Depth Supports equipment up to 29" (736 mm). The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges increase load capacity and prevent equipment movement.
Shelf Type Solid , Vented
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area Flanges Up: 28.89" x 17.78" (734 x 445 mm)
Flanges Down: 29" x 17.78" (737 x 445 mm)
Finish Black textured powder coat
Mounting Depth Range Compatible with 2Post racks with 3" (76.2 mm) side posts
Included Hardware 10-32 & 12-24 pan head screws
Weight Capacity 300 lbs (136 kgs)
Rack Units 3U
Tool-less/Standard Standard
Overall Installation Depth 29" (736.6 mm)
Material 16 GA Steel
3USHL-022FULL-29DV = B0006I5HBS
3USHL-022FULL-29DS = B0006I5HCC
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes Shelf depth is measured from front to rear including flanges
