2U 2Post Center Mount Relay Rack Shelf 20in Depth
Center Mounted Shelf for a Wide Variety of IT Equipment
- Choose from solid or vented options
- Options with flanges facing up or down
- Center mounts to 2 Post Relay and Telco racks
- Slots along the side of the shelf for equipment straps
Compatible With Most 2 Post Racks
- Weight Capacity: 150 lbs (68 kgs)
- Shelf Depth: 20" (508 mm)
- Compatible with round, threaded, or square rack holes
Want something more versatile? Check out our configurable or adjustable version.
NOTE: NOT Compatible with 2 Post racks with 5" - 6" wide uprights.
RackSolutions' 2U 20 inch (508 mm) deep relay rack shelf is perfect for rack mounting networking and telecommunications rack in a 2 post rack, also called a "relay" or "telco" rack. Shelves can be used in a rack to mount equipment that might not ordinarily be rack mountable. It's large depth and 150 lb (68 kgs) weight capacity give it the ability to support a wide variety of electronic equipment. Four different configurations are available for this shelf, with vented and solid options to assist with airflow needs, as well as those with flanges facing up or down. The shelf features slots along the side of the shelf for securing equipment down using equipment straps. Our 20 inch deep 2U 2 Post Relay Rack Shelf is EIA 310 compliant meaning it can fit most standard 19" 2 post racks.
The RackSolutions 2U 2 Post Relay Rack Shelf is EIA 310 compliant meaning it can fit most standard 19" 2 post racks.
|Dell Part Number||2USHL-022FULL-20DS - A7423049
2USHL-022FULL-20DV - A0475500
2USHL-022FULL-20UV - A1623696
2USHL-022FULL-20US - A9082832
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
|Synnex Part Number||2USHL-022FULL-20US - 5772007
2USHL-022FULL-20DS - 4614650
2USHL-022FULL-20UV - 4614651
2USHL-022FULL-20DV - 5070226
|Ingram Part Number||2USHL-022FULL-20US - E93444
2USHL-022FULL-20DS - E93446
2USHL-022FULL-20UV - E93443
2USHL-022FULL-20DV - E93445

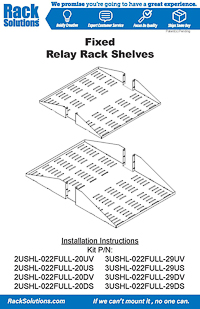

|Assembly Notes||Phillips head screwdriver required|
|Shelf Type||Solid , Vented|
|Rack Type||2 Post|
|Finish||Black, textured powder coat|
|Included Hardware||12-24 & 10-32 pan head screws|
|Weight Capacity||150 lbs (68 kgs)|
|Overall Installation Depth||20" (508 mm)|
|Material||16 GA Steel|
|Amazon ASIN||2USHL-022FULL-20UV = B0006I5H72 2USHL-022FULL-20DV = B00UVK9RYE 2USHL-022FULL-20US = B0006I5H7M 2USHL-022FULL-20DS = B00UVK9PLO|
|Tech Notes||Shelf depth is measured from front to rear including flanges|
