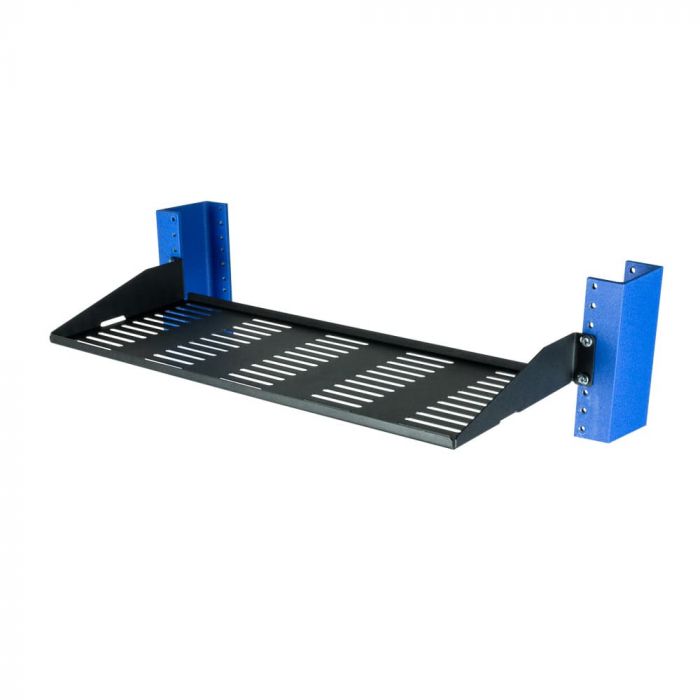

1U 2Post Cantilever Shelf 7in Depth

As low as $29.99
In stock

Great for Mounting Small IT or AV Equipment in a Rack

  • Mount in 2 post or 4 post racks
  • Fits most 19 inch EIA standard relay racks
  • Vented option to help airflow
  • Choose angle of the flanges to suit your equipment needs
  • Compatible with round, threaded or square rack holes

Made to Meet the Highest Standards

  • Made in the USA from high quality 16 GA steel
  • Weight Capacity: 30lbs (14kgs)
  • Slots for optional equipment straps
  • Over 20 years in the server mounting industry

Want something more versatile? Check out our configurable (opens in a new tab) version.

See "Additional Information" for Technical Specifications.

A Small, Cantilever Server Shelf Built for Mounting IT Equipment

Whether it's routers, switches, AV equipment, or small computers, this rack shelf can keep them secure in place. With a weight capacity of up to 30lbs, this shallow rack shelf easily supports IT equipment with a 7 inch depth.

Choose Between Different Designs

Vented shelves allow for more airflow and heat dissipation. Choosing the flanges up option ensures that the equipment won’t slip off of the rack. The flanges down option allows more access to the front of the equipment.

1U Cantilever 2 Post Rack Shelf Feaures (desktop image)1U Cantilever 2 Post Rack Shelf Feaures (mobile image)

1U Cantilever 2 Post Rack Shelf Features

RackSolutions 1U Cantilever 2 Post Rack Shelf is available vented or solid with flanges up or down.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 1USHL-022HALF-7UV | 1USHL-022HALF-7US | 1USHL-022HALF-7DV | 1USHL-022HALF-7DS
  • Assembly Hardware:
  • (1) Shelf
  • (4) 10-32 Pan Head Screws
  • (4) 12-24 Pan Head Screws
Dell Part Number 1USHL-022HALF-7DV - A0445188
1USHL-022HALF-7US - AB291549
1USHL-022HALF-7UV - A0762056
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 1USHL-022HALF-7US - 5216051
1USHL-022HALF-7DS - 5881897
1USHL-022HALF-7UV - 4614648
1USHL-022HALF-7DV - 4614647
Ingram Part Number 1USHL-022HALF-7US - E93436
1USHL-022HALF-7DS - E93438
1USHL-022HALF-7UV - E93435
1USHL-022HALF-7DV - E93437
Assembly Notes Phillips head screwdriver required
Equipment Depth The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement. Max depth with the flanges up would be 6.88", max depth with the flanges down would depend on the use case.
Shelf Type Solid , Vented
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area 7" x 17.5" (177 x 445 mm)
Finish Black textured powder coat
Mounting Depth Range These relay rack shelves are cantilever mounted and will install into any relay rack as well as any 4Post server rack.
Weight Capacity 30 lbs (14 kgs)
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth 7"
Material Made from high quality 16 GA steel
Tech Notes These relay rack shelves can be installed in a 4Post server rack.
Shelf depth is measured from front to rear excluding flanges.
