115-B Wall Mount for Dell OptiPlex SFF

As low as $109.99
In stock

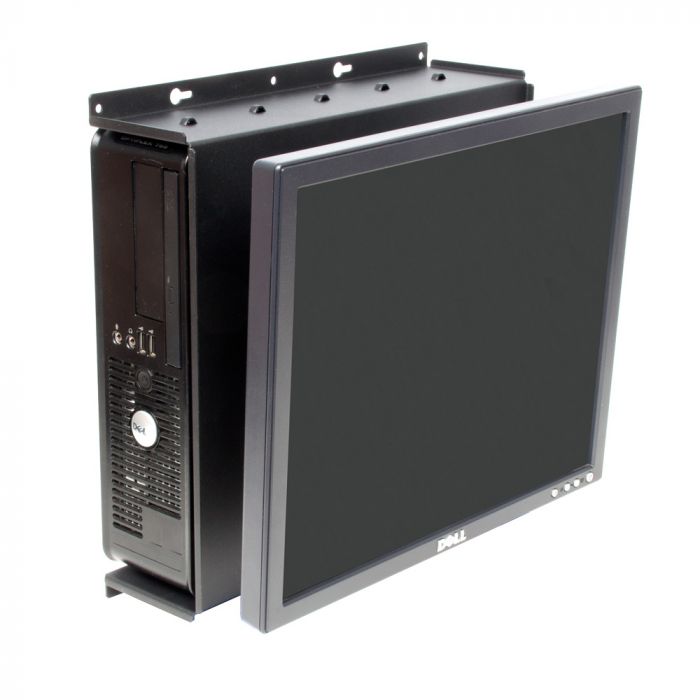

Wall mount a Dell OptiPlex 780 SFF

  • Only Compatible with SFF PCs - Full Compatibility Below
  • 75 mm and 100 mm VESA hole pattern
  • Wallmount bracket supports up to 50 lbs
  • Includes all required mounting hardware
  • PC & Monitor not included

Customize to your needs

  • Compatible with most flat panel displays
  • Pairs great with one of our keyboard wall mounts
  • Tilt and fixed monitor options available

NOTE: See "Additional Information" below for additional compatible models. PC & Monitor NOT included.

Dell Compatible Products

  • Optiplex 780 Small Form Factor (SFF)

  • Optiplex 960 Small Form Factor (SFF)

  • Optiplex 980 Small Form Factor (SFF)

RackSolutions' Dell OptiPlex 780 SFF Wall Mount creates a wall mounted compact all-in-one solution for Dell OptiPlex 780 Small Form Factor (SFF) PCs. Using 75 mm and 100 mm VESA mounting patterns, the wall mount allows almost any flat panel display to be paired with the PC and wall mount. There are two options when choosing a Dell OptiPlex 780 USFF Wall Mount, a version that stays fixed, and an upgraded version that allows your monitor to tilt to be positioned to your needs. For a fully wall mounted system, try combining the setup with one of our keyboard wall mounts. All required mounting hardware is included

VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications GuidesVESA Specifications Guides

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.

More Information
Dell Part Number 104-2095: A5602172
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page
Compatibility Dell
Assembly Notes Requires Phillips screwdriver
Dimensions Tilt Monitor Outside Dimensions P/N: 104-2095
H x W x D = 14.11" (358 mm) x 13.64" (346 mm) x 5.08" (129 mm)

Finish Black, textured powder finish
RoHS Compliant Yes
TAA Compliant Yes
Included Hardware
  • Monitor Hardware:
  • (8) Nylon spacers
  • (4) M4 x 10 mm pan head screws
  • (4) M4 x 18 mm pan head screws
  • (4) M4 x 25 mm pan head screws

  • Wall Mount Hardware:
  • (4) pan head screws
  • (4) pan anchors

  • Pivot Hardware:
  • (4) 8-32 flat head screws
  • Pivot hardware is only included with P/N: 104-2095
