1U 110-D Fixed Rail for Dell

In stock

Fits any 4Post cabinet, 2Post rack

Alternative to Dell R210, R220 rails

  • High quality, ball bearing slide rails
  • Solid steel construction

Get custom bezels for this server.

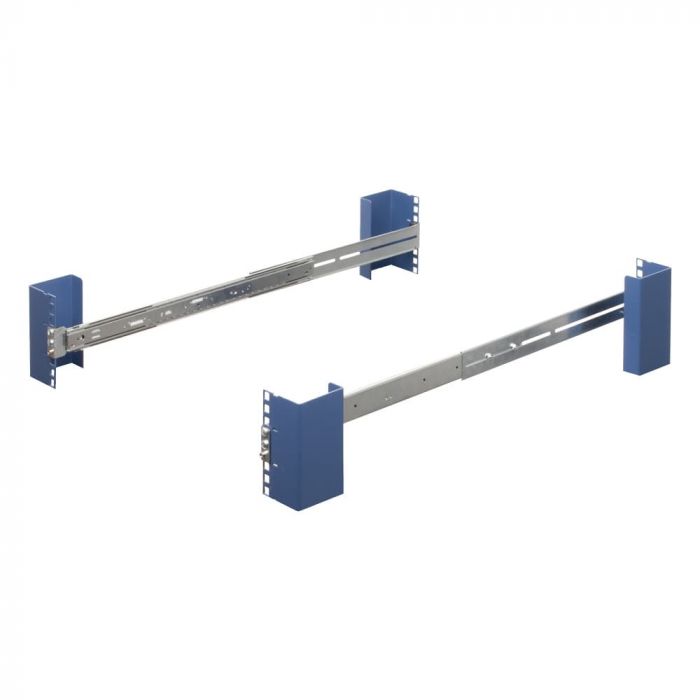

Rail Kit for Dell PowerEdge R210 and R220

The RackSolutions Dell PowerEdge R210, R220 Slide Rails are an upgrade over the standard Dell R210, R220 rail kit, as Dell's rails do not slide. RackSolutions' model is also compatible with round, square or threaded server racks. Versatility is ingrained into every aspect of the RackSolutions Dell PowerEdge R210, R220 Slide Rails' design. They feature a mounting depth ranging from 3" to 30.5", an extension range of 17.5". These rails are an alternative to the Dell R210, R220 rails. The slide rails are built with high-quality design principles applied to a stainless steel frame. The slides themselves feature ball bearing construction to ensure smooth and stable functionality. These rails may also be installed in a 2 post center mount configuration (P/N: 120-2245), 2 post flush mount or 4 post configuration (P/N: 120-2382). The RackSolutions Dell PowerEdge R210 Slide Rails will ship with all of the necessary hardware for installation. As a result, buyers need only have a Phillip's head screwdriver to assemble the product.

More Information
Compatibility Dell PowerEdge R210
Dell PowerEdge R220
Dell Part Number Dell Poweredge R210,R220 Slide Rails - 4Post or 2Post Flush Mount - A5820745
Rail OEM Dell
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware Kit Contents:
  • (1) Right Rail
  • (1) Left Rail
  • (2) Long Rear Bracket
  • (2) Short Rear Bracket

Kit Contents:
  • Mounting hardware:
  • (4) M4 x .375 Flat Head
  • (4) M4 Keps Nut
  • Rack hardware kit:
  • (8) 10-32 x .500 Pan Head
  • (8) 12-24 x .500 Pan Head
  • (8) 12-24 Square Nut
  • (8) 12-24 Cage Nut

Assembly Notes Phillips head screwdriver required
Rail Type Ball bearing slide rails
17.5" (444 mm) extension
Mounting Depth Range 3 - 30.5" (76 - 774 mm)
Tech Notes 4Post or 2Post, 19" EIA-310 standard server rack
Rack Units 1U
Rack Type 2 Post , 4 Post
Amazon ASIN B00UVKAU04
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and Metric M6
TAA Compliant Yes
