Light Duty Sliding Seismic Transport Shelf w/ CMA

$144.99
In stock
SKU
1USHL-112-T

24" (610 mm) Transport, Seismic Shelf w/ CMA

  • Dell, HP, IBM compatible
  • Secure PC with 2 anti-slip mats and straps (included)
  • (CMA) Cable management arm included

Fits Any 4 Post Rack

  • 45 lbs (21 kgs) capacity
  • Supports items up to 20" (508 mm) deep, 17.7" (450 mm) wide
  • Shelf extends 22.5" (572 mm)
  • Mounting depth range 11 - 30" (279 - 762 mm)
  • Fits square, round, threaded holes

See "Additional Information" for Technical Specifications.

The RackSolutions seismic sliding computer shelf is compatible with most 19" EIA standard server racks. The sliding seismic shelf has a 45 lb (20 kgs) equipment capacity and will support a wide variety of electronic equipment. Computer equipment up to 20" (508 mm) deep can be supported on a 19 inch sliding computer shelf. Rack mounting a computer desktop and workstation up to 17.6" (447 mm) wide can be accomplished using sliding computer shelf. The slide rails extend a full 22.5" (572 mm) on the sliding computer shelf. Cable management is a standard feature of sliding computer shelf providing a method to professionally route and secure the cables. Transport and seismic option comes with 2 anti-slip mats and 2 straps for securing equipment.

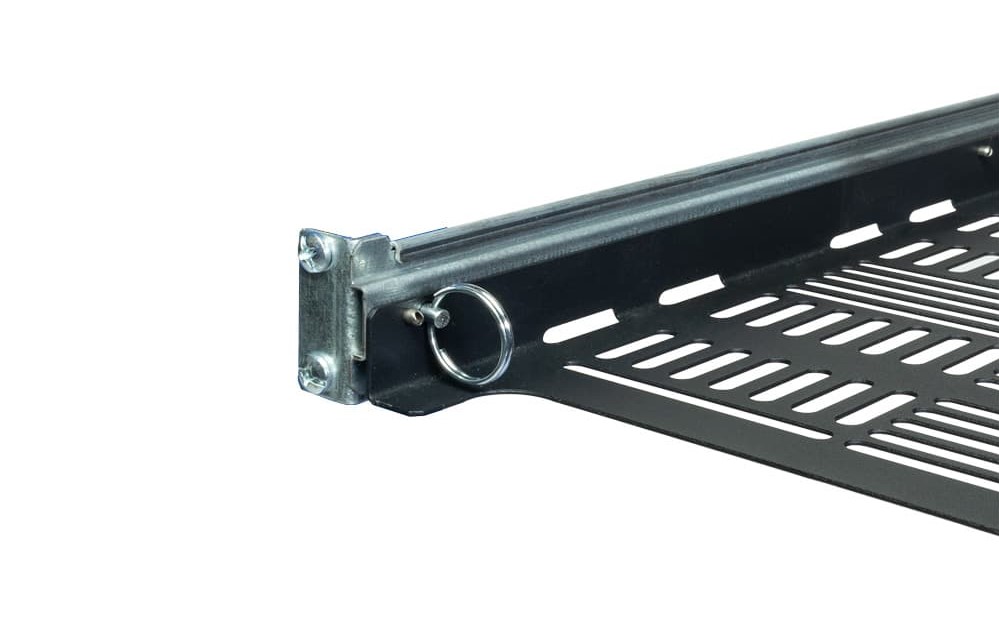

Seismic transport shelf clevis pinSeismic transport shelf clevis pin

Secured Clevis Pin

Keep your shelf locked in place with our clevis pin. This pin can easily be pulled in and out for easy access to the sliding feature of our shelves, as well as keeping the shelf fixed in place.

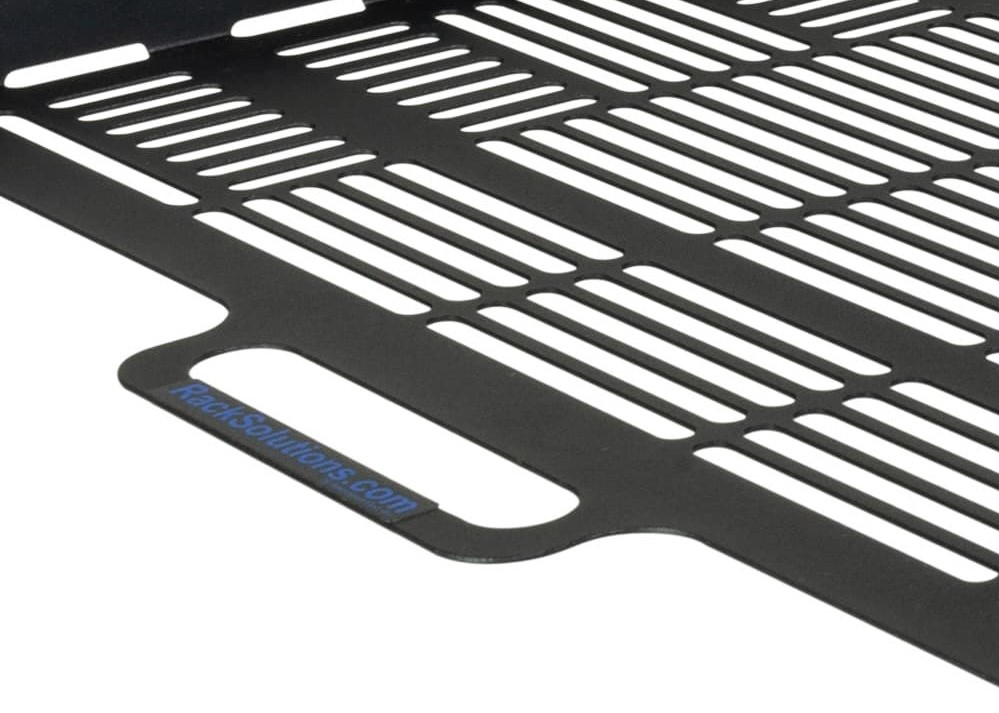

Sliding seismic transport shelf handleSliding seismic transport shelf handle

Easy Equipment Access

Conveniently access your equipment utilizing the handle located at the front of the shelf. This handle gives you the benefit of getting to your non-rack mountable equipment in the fastest way possible.

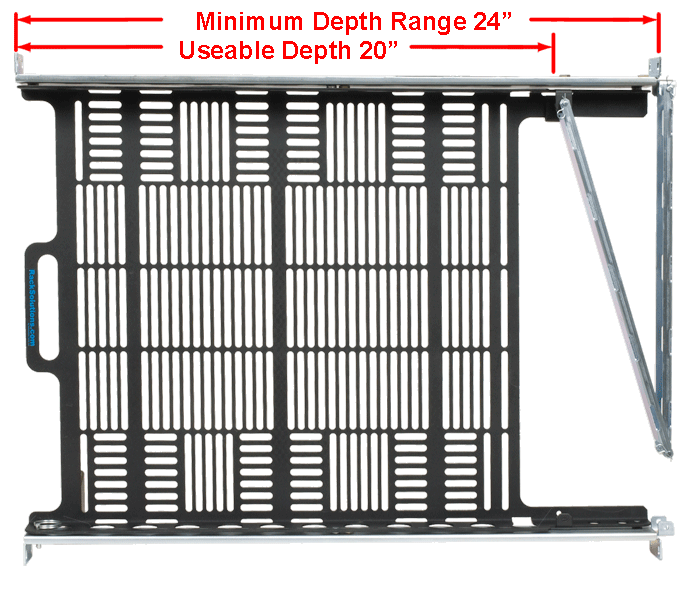

sliding seismic transport shelf cable management barsliding seismic transport shelf cable management bar

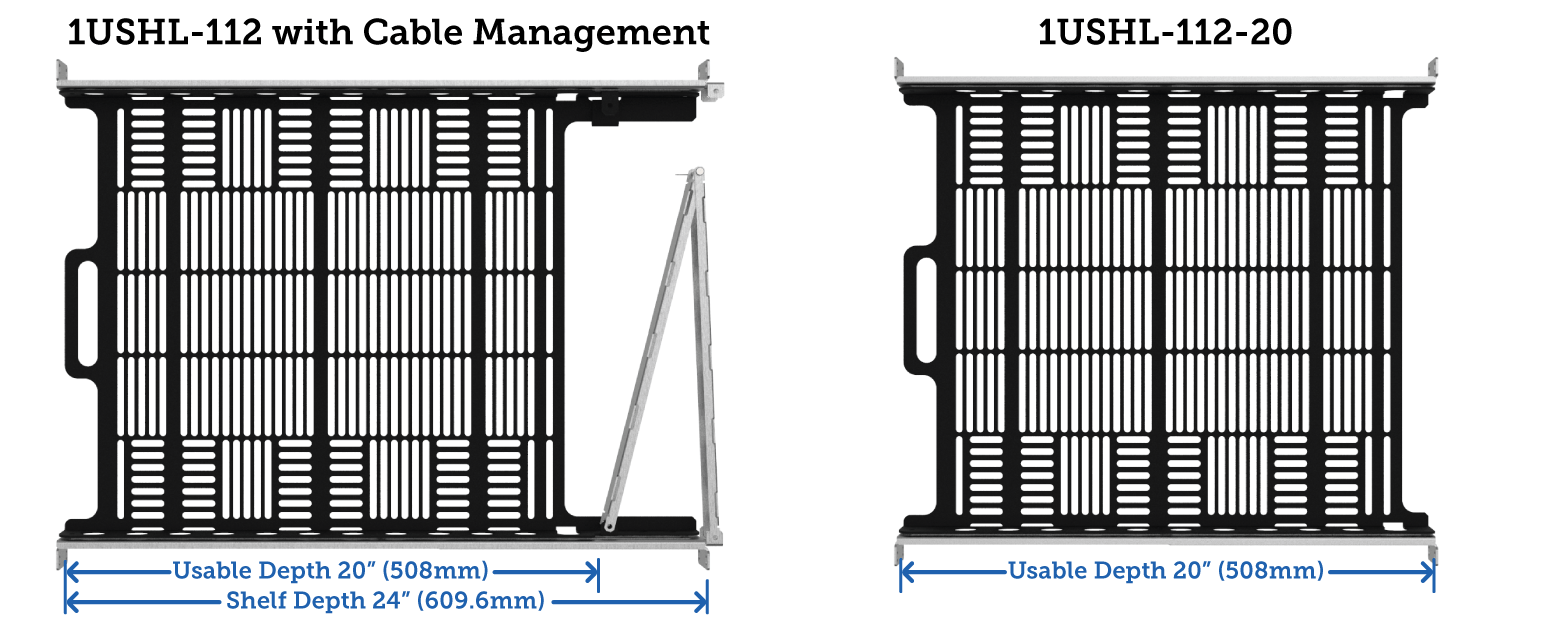

Choose your depth

Choose between the 1USHL-112 and the 1USHL-112-20 based on your needs for equipment mounting.

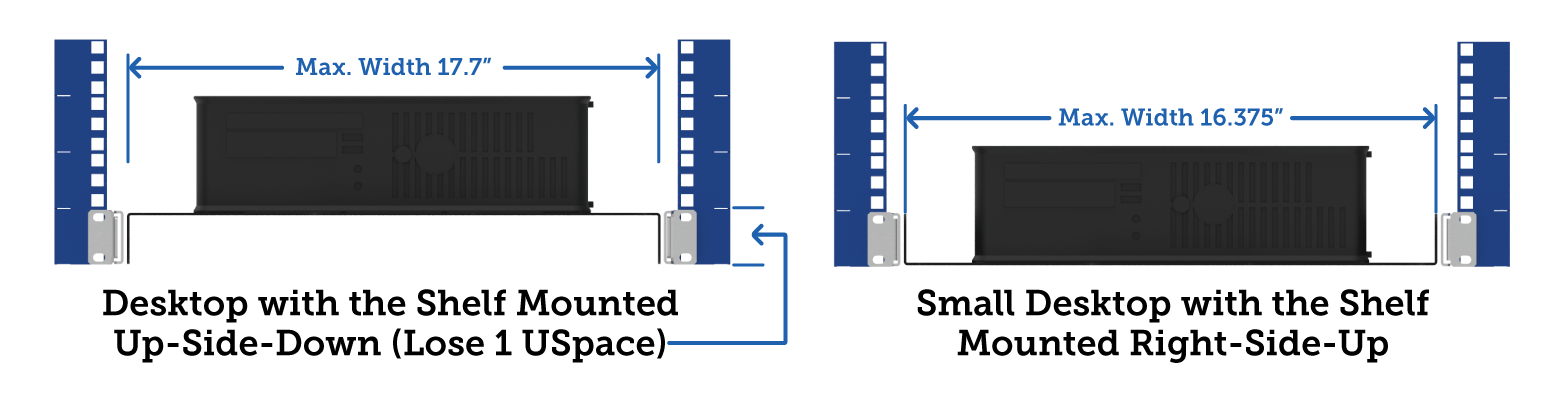

sliding seismic transport shelf mount upside downsliding seismic transport shelf mount upside down

Shelf can mount upside down

Mounts up-side-down for maximum width or right-side-up for minimum U space.

More Information
Visbility Bypass Enabled Yes
Equipment Depth Maximum shelf depth 20.0"
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 17.75 x 16.375" (451 x 416 mm) L x W
Finish Black textured powder coat
Mounting Depth Range 11 - 30" (279 - 762 mm)
Included Hardware 10-32 & 12-24 screws
Cage nuts are provided for square hole racks
(2) anti-slip mats and (2) 72" straps
Locking pin with pull ring (3/16 x 11/16)
Weight Capacity 45 lbs (21 kgs) capacity
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth 24" (610 mm)
Material 13 Gauge US Steel
Amazon ASIN B00UVKE8QQ
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes
This kit uses a unique "universal racking system" designed to mount in all 4 Post rack types.
