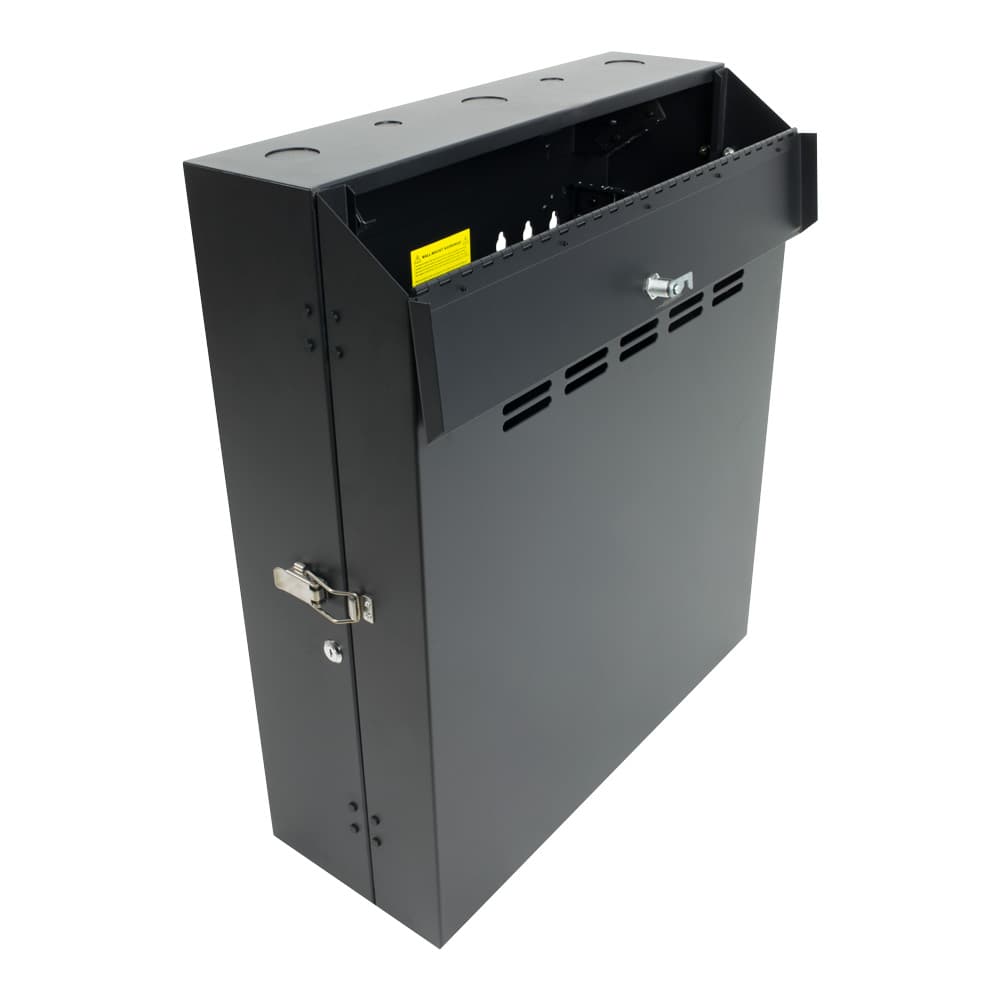

5U Secure Vertical Wall Mounts with Hinged Doors
5U of Secure Rackable Space
- Top cover and rack door are lockable
- Vented bottom
- Vented locking hinged cabinet door with latch
- 12 punch outs for routing cables
- Mount (2) 120mm fans to vented bottom for efficient airflow
Mounts 19" equipment
- 180-5281 23” rack - overall length is 29.7”
- 180-5282 30” rack - overall length is 36.7”
- 2U of extra rack space designed for patch panels
- Adjustable vertical mounting bracket
- Load capacity: 150 lbs
- Threaded holes for M6 or 12-24 screws
See "Additional Information" for Tech Specs.
Security and Accessibility
Saving Floor Space
Cable Access and Management

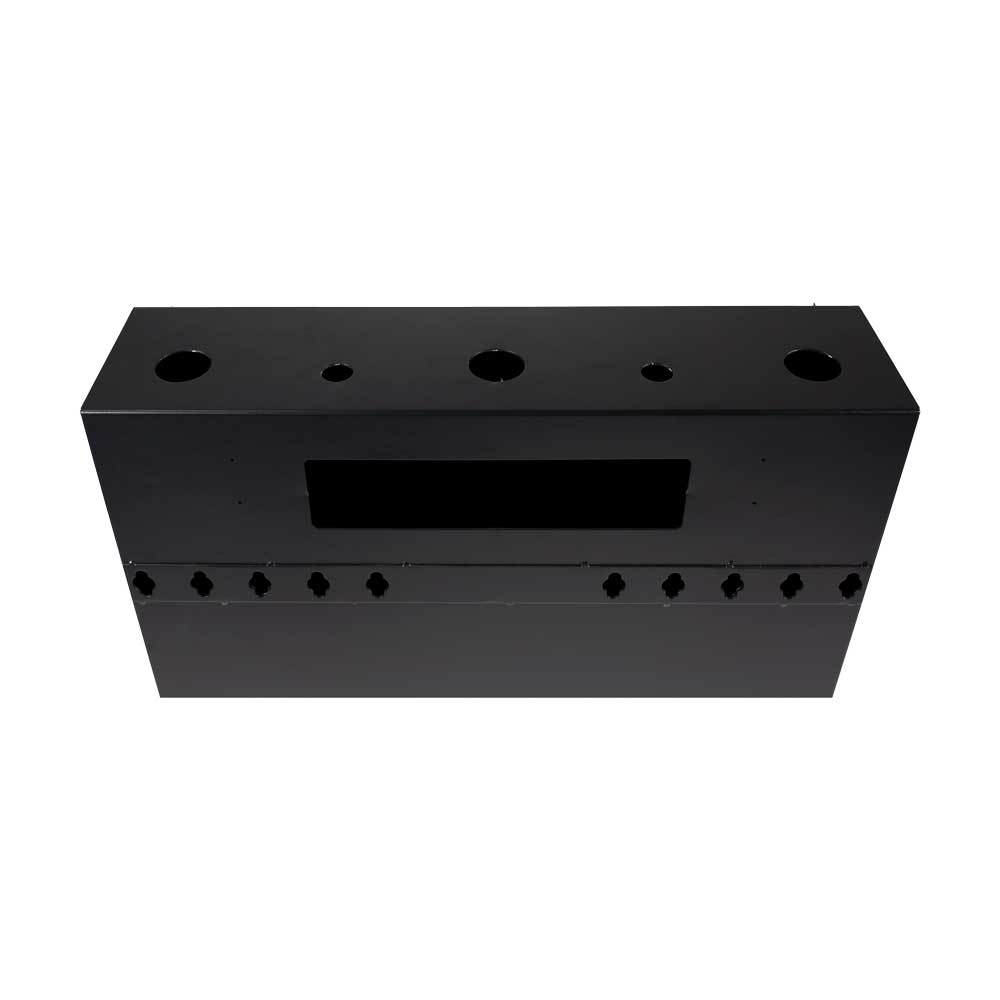

12 total punch outs for routing cables. Circular punch outs located on the top (5) and bottom (5), rectangular punch outs (2) located on the back of the rack.

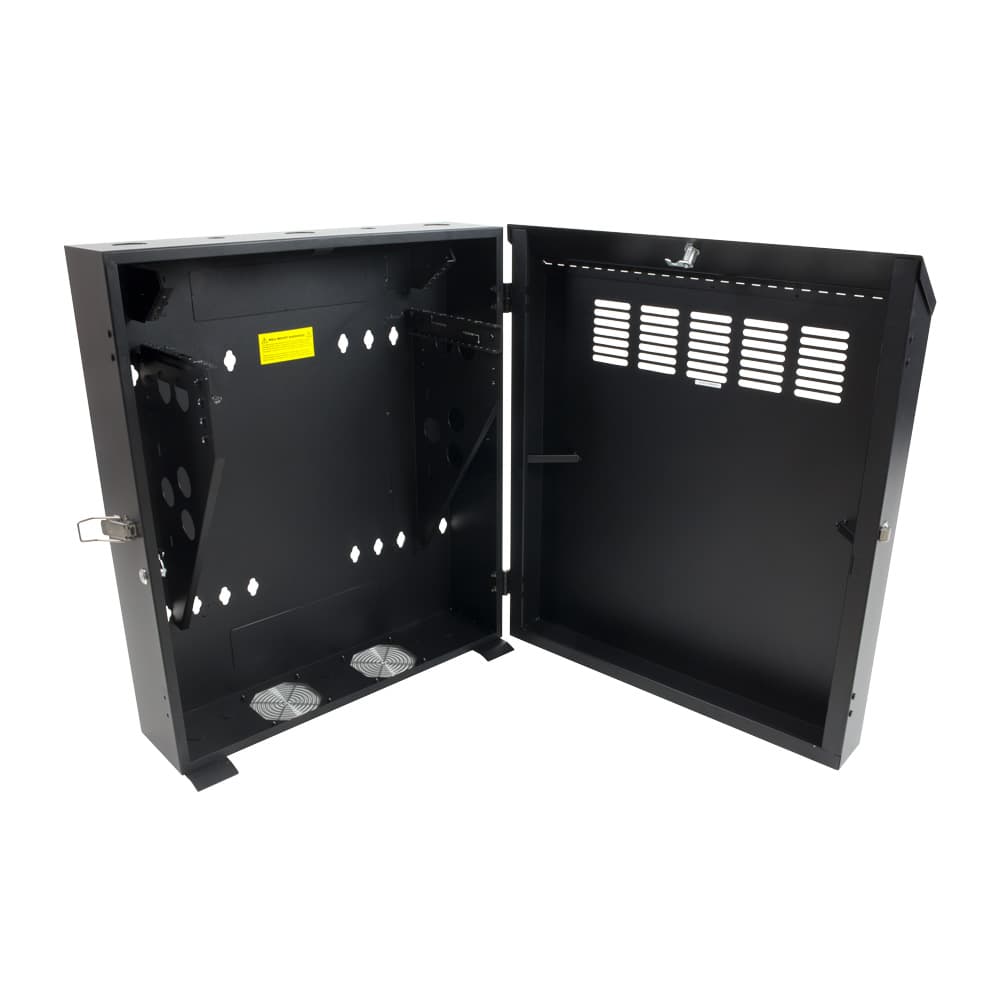

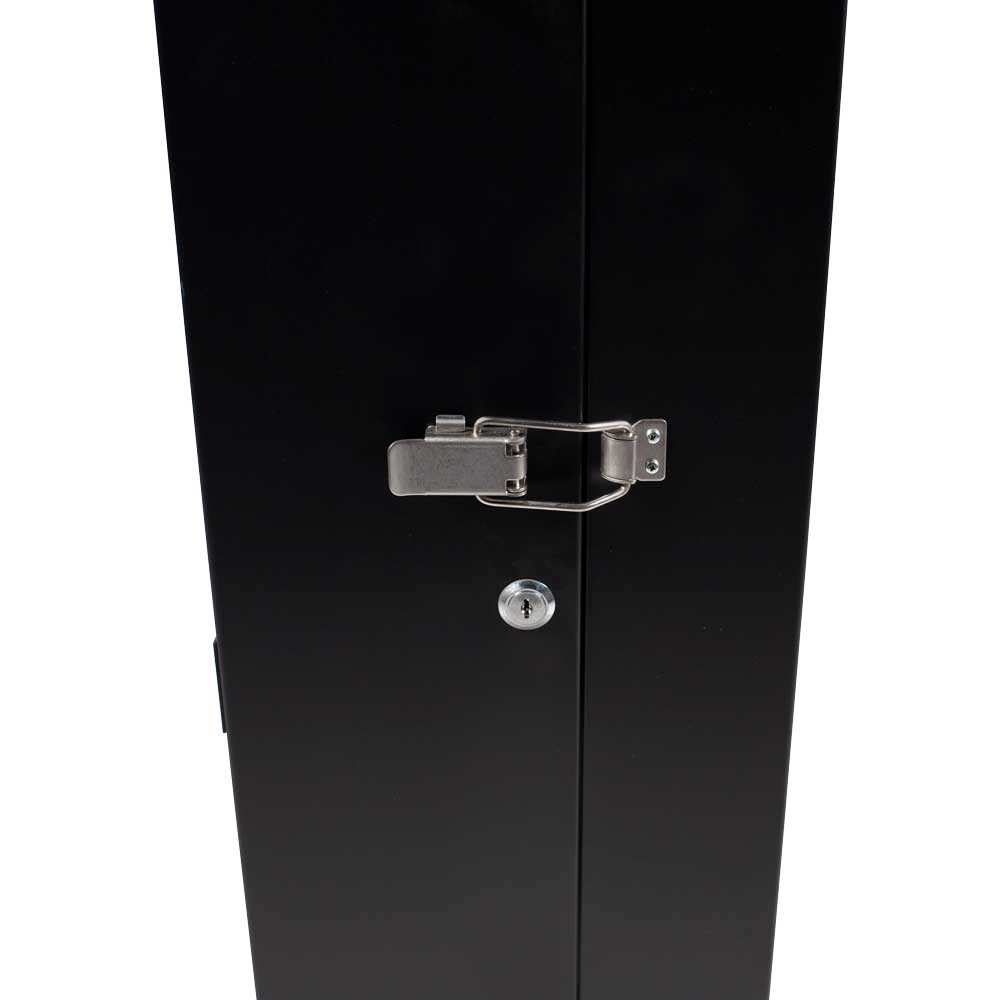

Vented Locking Hinged Cabinet Door With Latch
Tab on the locking hinged door must be pressed down to avoid equipment damage.

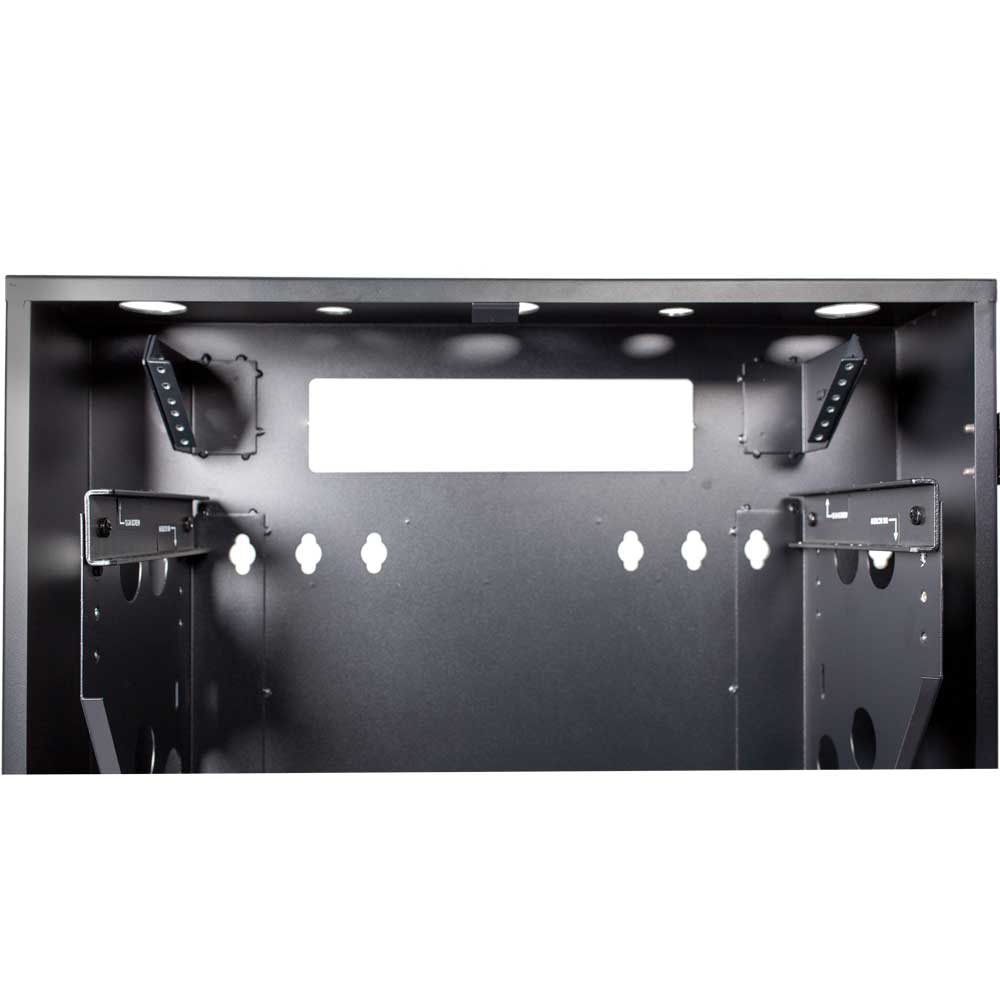

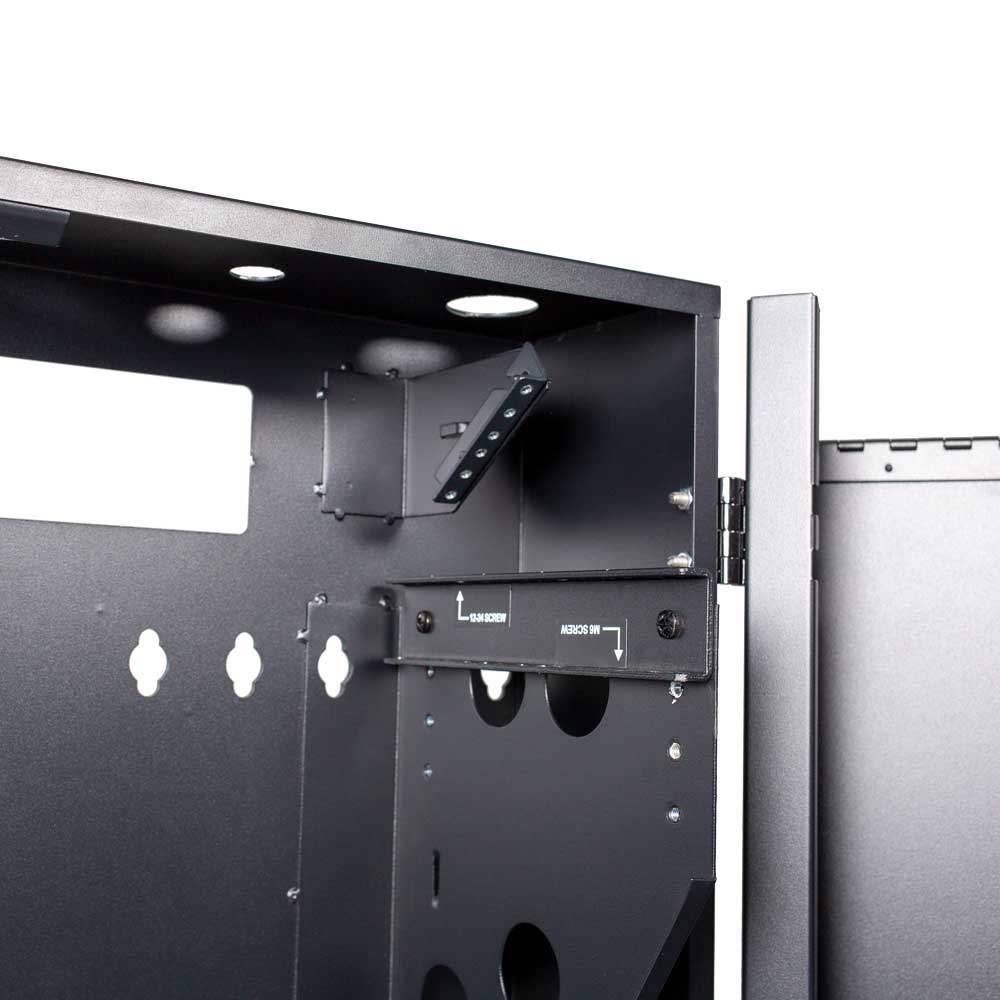

Adjustable Vertical Mounting Bracket
Adjustable mounting depths between 20-23” for 180-5281 and 27-30” for 180-5282, compatible with M6/12-24 screws.
Optional Patch Panel
Additional 2U slide-out mounting bracket to secure patch panels for easy cable access.
|Rack Type||Enclosed, Wall Mount|
|Hole Type||12-24 Threaded mounting holes|
|Rack Internal Width||EIA 19" Standard Rack|
|Rack Mount Depth||180-5281-23" 180-5282-30"|
|Dell Part Number||180-5282 - AA503081|
|Rack Height ( U Height)||5U|
|Rack Doors||Vented locking hinged cabinet door with latch|
|Rack Ventilation||Vented bottom|
|Amazon ASIN||180-5281 = B07L41952Z 180-5282 = B01N6ADQ16|
