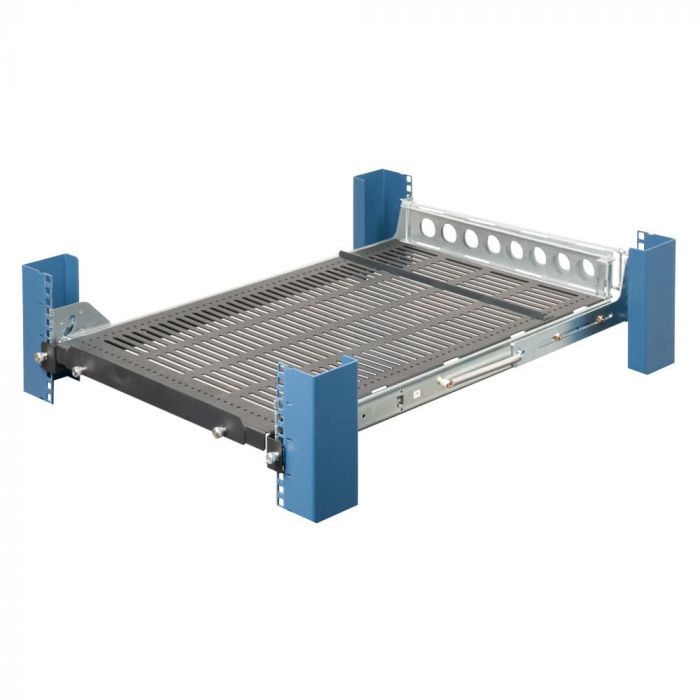

1U 115 Tool-less Sliding Equipment Shelf
Cut Down Installation Time
- Tool-less shelf takes up 1U of rack space
- Thumb screws lock shelf in place when needed
- Installation brackets take up 3U of rack space
- Optional (CMA) cable management arm available for an organized cord routing option
Fits Any 4 Post Rack
- Weight Capacity: 95 lbs (43kgs)
- Shelf Depth: 26.63” (676mm)
- Mounting Depth: 28.5” - 30" (711mm - 762mm)
- Compatible with square rack holes only
See "Additional Information" for Technical Specifications.
RackSolutions Tool-less Rack Shelf is compatible with 19" server racks from manufacturers such as Dell, HP, and IBM. This rack shelf can only be installed in racks with square holes.
Rackmount equipment weighing up to 95 lbs (43 kgs) can be installed using this rack shelf. The rack shelf is 28" (711 mm) deep and can be installed into server racks with installation depths up to 30" (762 mm).
Use RackSolutions Tool-less Rack Shelf for a simple and fast install to your rack. This product will save you time and move the installation process along quicker by eliminating the need for tools.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | U Height | 1U | Rack Type | 4 Post | Rack Hole Type | Square Hole | Shelf Type | Vented | Shelf Depth | 25"- 30" (635mm-762mm) | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Textured, powder coated, black or zinc plated | Material | 14 GA Steel | Dell Part Number | 115-1516 - A5394226 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 115-1516 - 4670219 137-1515 - 4670225 | Ingram Part Number | 115-1473 - DY9024 115-1516 - DY9023 137-1515 - 1P3206 |
|---|
Assembly Components:
- (1) Left Rail
- (1) Right Rail
- (2) Retainer Brackets
- (1) Anti-Slip Mat
- (1) Rear Stop
- (1) Front Stop
Assembly Hardware Kit:
- (2) Retainer Brackets
- (2) 8-32 x 3/8 Truss Head Screws
- (2) 8-32 Nuts
Assembly Components:
- (1) Left Rail
- (1) Right Rail
- (2) Retainer Brackets
- (1) Anti-Slip Mat
- (1) Rear Stop
- (1) Front Stop
Assembly Hardware Kit:
- (2) Retainer Brackets
- (2) 8-32 x 3/8 Truss Head Screws
- (2) 8-32 Nuts
Kit Contents:
- (1) Front Metal Stop Bracket
Cable Arm Hardware:
- (1) Cable Arm Assembly
- (1) Hook and Loop
