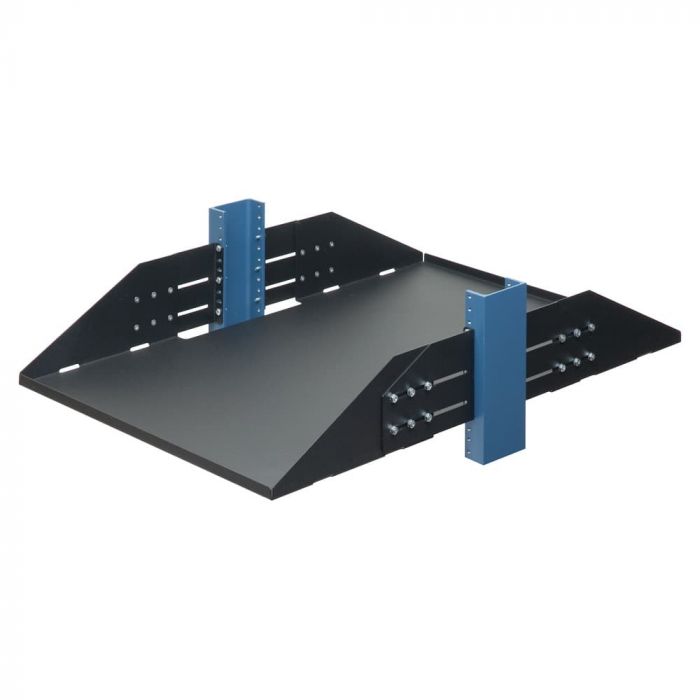

3U 2Post Adjustable Center Mount Rack Shelf 29in Depth
Adjustable to Fit Most 2 Post Racks
- Options with flanges facing up or down
- Mounting brackets adjustable to fit 3" - 8" (76 - 203 mm) uprights
- Slots for equipment straps along the side of the shelf
- Can be mounted upside down
Compatible With 2 Post Racks
- Weight Capacity: 300 lb (136 kgs)
- Shelf Depth: 29" (736 mm)
- Compatible with round, threaded, or square rack holes
See "Additional Information" for Technical Specifications.
RackSolutions 29 inch (736 mm deep) 3U Adjustable 2 Post Relay Rack Shelf is designed to fit almost every standard EIA 19" 2 Post telco or relay racks by using adjustable mounting brackets that can fit uprights ranging 3 - 8 inches (76 - 203 mm). Choose from options with flanges, also called equipment stops, facing up or down. The shelf features slots for equipment straps along the side of the shelf for securing any equipment on the shelf.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | U Height | 3U | Rack Type | 2 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Type | Solid | Shelf Depth | 25"- 30" (635mm-762mm) | Fixed/Sliding | Fixed | Weight Capacity | 300 - 550 lbs | Finish | Black Textured Powdercoat | Material | 16 GA Steel | Dell Part Number | 3USHL-024FULL-29US - A5898252 107-2237 - A7270128 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 3USHL-024FULL-29US - 5809083 107-2237 - 5000056 | Ingram Part Number | 3USHL-024FULL-29US - GV8606 107-2237 - KT8237 |
|---|
Data Sheet
Flanged Up | 3U 2Post Adjustable Center Mount Solid Shelf 29in (D) (3USHL-024FULL-29US)
Open PDF

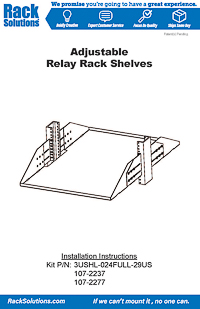

Installation Instructions
Flanged Up | 3U 2Post Adjustable Center Mount Solid Shelf 29in (D) (3USHL-024FULL-29US)
Open PDF
Dimensional Drawings
Flanged Up | 3U 2Post Adjustable Center Mount Solid Shelf 29in (D) (3USHL-024FULL-29US)
Open PDF
Data Sheet
Flanged Down | 3U 2Post Adjustable Center Mount Solid Shelf 29in (D) (107-2237)
Open PDF
Installation Instructions
Flanged Down | 3U 2Post Adjustable Center Mount Solid Shelf 29in (D) (107-2237)
Open PDF
Dimensional Drawings
Flanged Down | 3U 2Post Adjustable Center Mount Solid Shelf 29in (D) (107-2237)
Open PDFAssembly Components:
- (1) Shelf
- (2) Left Brackets
- (2) Right Brackets
Rack Hardware Package:
- (13) 10-32 Pan Head Screw
- (13) 12-24 Pan Head Screw
Bracket Hardware Package:
- (25) 8-32 Pan Head Screw
- (25) 8-32 Keps Nuts
Assembly Components:
- (1) Shelf
- (2) Left Brackets
- (2) Right Brackets
Rack Hardware Package:
- (13) 10-32 Pan Head Screw
- (13) 12-24 Pan Head Screw
Bracket Hardware Package:
- (25) 8-32 Pan Head Screw
- (25) 8-32 Keps Nuts
