3U Adjustable 2 Post Relay Rack Shelf - 29" depth

Availability: In stock

3U Adjustable 2 Post Relay Rack Shelf - 29" depth
Made in America

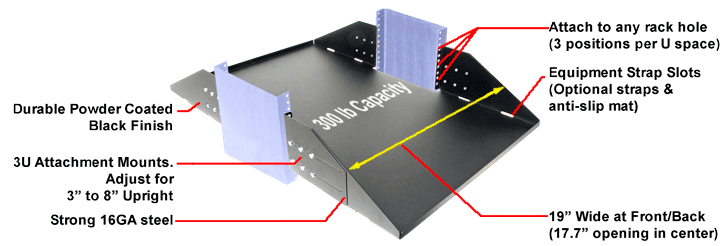

Adjustable to Fit Most 2 Post Racks

  • Options with flanges facing up or down
  • Mounting brackets adjustable to fit 3" - 8" (76 - 203 mm) uprights
  • Slots for equipment straps along the side of the shelf
  • Can be mounted upside down

Compatible With 2 Post Racks

  • Weight Capacity: 300 lb (136 kgs)
  • Shelf Depth: 29" (736 mm)
  • Compatible with round, threaded, or square rack holes
See "Additional Information" for Technical Specifications.
Rack Solutions Promise

Choose from flanges facing up or down

Product Name SKU Price Qty
29" Adjustable Rack Shelf - Flanges Up 3USHL-024FULL-29US
$89.99
29" Adjustable Rack Shelf - Flanges Down 107-2237
$89.99

Out of stock

Description

Details

RackSolutions 29 inch (736 mm deep) 3U Adjustable 2 Post Relay Rack Shelf is designed to fit almost every standard EIA 19" 2 Post telco or relay racks by using adjustable mounting brackets that can fit uprights ranging 3 - 8 inches (76 - 203 mm). Choose from options with flanges, also called equipment stops, facing up or down. The shelf features slots for equipment straps along the side of the shelf for securing any equipment on the shelf.

3U Adjustable 2 Post Relay Rack Shelf - 29
Additional Information

Additional Information

Dell Part Number 3USHL-024FULL-29US - A5898252
Assembly Notes Phillips Head Screwdriver Required
Equipment Depth Supports equipment up to 29" (736 mm).

The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges increase load capacity and prevent equipment movement.
Shelf Type Solid
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area 17.7" x 29" (450 mm x 736.6 mm)
Finish Black Textured Powdercoat
Mounting Depth Range These Telco Rack Shelves are compatible with a Telco Rack
with 3" to 8" (76.2 mm to 203 mm) Side Post.
Included Hardware 10-32 & 12-24 Pan Head Screws
Weight Capacity 300 lb (136 kgs)
Rack Units 3U
Tool-less/Standard Standard
Overall Installation Depth 29" (736.6 mm)
Material 16 GA Steel
Amazon ASIN 3USHL-024FULL-29US = B00UVKB21A
107-2237 = B00UVK8LQE
TAA Compliant Yes
RoHS Compliant Yes
