2U Sliding Laptop Shelf 17in Depth
Use Your Laptop Right at Your RackÂ
- High-quality ball bearing slide rails provide 20" of extension
- Made from 16 Gauge US Steel
- Front cover takes up 2U of spaceÂ
- Cable management arm included
Fits in Any 4Post Rack
- Capacity 75 lbs (35 kgs)
- Supports laptops up to 16.3" (414 mm) deep
- Adjustable mounting depth: 10 - 30" (254 - 762 mm)
- Fits square, round, threaded holes
See "Additional Information" for technical specifications.

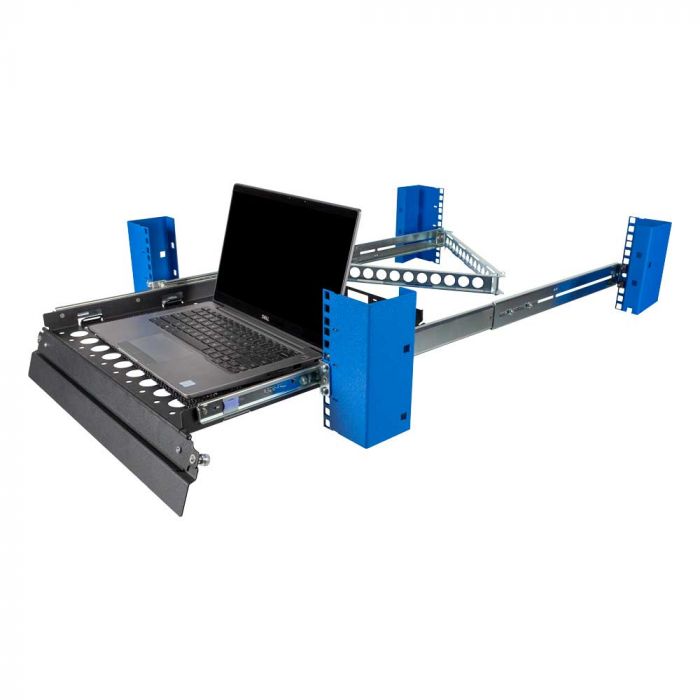

The RackSolutions laptop shelf allows you to install your laptop in a 19" server rack. You can use this shelf, along with a laptop, as a replacement for your KVM.
The high quality ball bearing slide rails provide 20" of extension and have a safety lock-out feature. The notebook shelf comes standard with a 1U and a 2U front cover. There is extra room in the rear of the laptop shelf to secure any cabling or AC adapter.
Our rackmount laptop shelf can support up to 75 lbs of equipment. The Transport Upgrade for Laptop Sliding Shelf is available with transport straps and anti-slip mats for the notebook shelf if required.
Rear Shelf Stop
The built-in shelf stop keeps equipment from sliding off the shelf and has cable tie pass-throughs for cable management.
2U Built in Blanking Panel
The shelf's design enables air flow with the use of a filler panel to cover the space occupied by the shelf. Captive fasteners secure the built in blanking panel.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | U Height | 2U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Type | Vented | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Black textured powder coat | Material | 16 Gauge US Steel | Dell Part Number | 1USHL-139-TRNS-UPGRD - AA507392 1USHL-139 - A1195458 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 1USHL-139 - 4786733 1USHL-139-TRNS-UPGRD - 5556101 | Ingram Part Number | 1USHL-139 - M65273 1USHL-139-TRNS-UPGRD - PQ8280 |
|---|
Kit Contents:
- (1) Partially Assembled Shelf w/Door
- (2) Rear Brackets
- (2) Cable Management Arms
- (16) Tie Straps
Rear Bracket Hardware:
- (7) 8-32 x 3/8" Truss Head Screws
- (7) 8-32 Keps Nuts
- (1) Hook and Loop (16" Long)
- (2) Rear Cable Management Brackets
Rack Mount Hardware:
- (9) 12-24 Square Nut
- (9) 10-32 Pan Head Screws
- (9) 12-24 Pan Head Screws
- (9) 12-24 Cage Nuts *Black*
Cable Arm Hardware:
- (3) Clevis Pins
- (3) Cotter Pins
2U Door Hardware:
- (3) 8-32 x 3/16 Flat Head Screws
Kit Contents:
- (2) 72" heavy-duty straps
- (1) Anti-slip mat
