Laptop Sliding Shelves

In stock
Grouped product items
Product Name SKU Qty
Laptop Sliding Shelf
$229.99
1USHL-139
Transport Upgrade for Laptop Sliding Shelf
$19.99
1USHL-139-TRNS-UPGRD

Will accommodate most laptops & small desktops

  • High-quality ball bearing slide rails
  • Made from 16 Gauge US Steel
  • 1U, 2U front cover
  • Cable management arm included

Fits in Any 4Post Rack

  • Capacity 75 lbs (35 kgs)
  • Supports laptops up to 16.3" (414 mm) deep
  • Adjustable mounting depth: 10 - 30" (254 - 762 mm)
  • Fits square, round, threaded holes

Optional Transport Upgrade for Laptop Sliding Shelf

Includes:

  • Two, 72" heavy-duty straps
  • One, anti-slip mat
  • 1USHL-139 comes with one anti-slip mat

See "Additional Information" for technical specifications.

The RackSolutions laptop shelf allows you to install your laptop in a 19" server rack. The rack mount laptop shelf provides 16.3" of space to accommodate most laptops. The high quality ball bearing slide rails provide 20" of extension and have a safety lock-out feature. The notebook shelf comes standard with a 1U and a 2U front cover. There is extra room in the rear of the laptop shelf to secure any cabling or AC adapter. Our rackmount laptop shelf can support up to 75 lbs of equipment. The Transport Upgrade for Laptop Sliding Shelf is available with transport straps and anti-slip mats for the notebook shelf if required.

1U Cantilever 2 Post Rack Shelf Feaures1U Cantilever 2 Post Rack Shelf Feaures

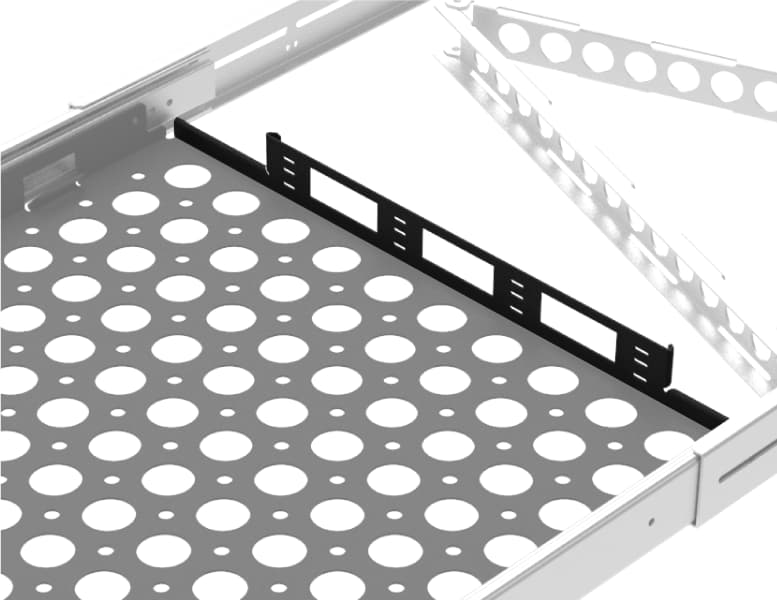

Rear Shelf Stop

The built in shelf stop keeps equipment from sliding off the shelf and have cable tie pass throughs for cable management.

1U Cantilever 2 Post Rack Shelf Feaures1U Cantilever 2 Post Rack Shelf Feaures

2U Built in Blanking Panel

The shelf's design enables air flow with the use of a filler panel to cover the space occupied by the shelf. Captive fasteners secure the built in blanking panel.

More Information
Dell Part Number 1USHL-139-TRNS-UPGRD - AA507392
Assembly Notes Phillips head screwdriver required
Equipment Depth 16.8" of usable depth
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 16.3" L x 15.4" W (415 x 391 mm)
Finish Black textured powder coat
Mounting Depth Range 10 - 30" (254 - 762 mm)
Included Hardware Cage nuts and screws
Weight Capacity 75 lbs (35 kgs)
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth Minimum: 21.5" (546 mm)
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24 and metric M6
Material 16 Gauge US Steel
Amazon ASIN 1USHL-139 = B019LBECLG
TAA Compliant Yes
RoHS Compliant Yes
