Dell PowerEdge R610: Specs and Rack Compatibility



The Dell PowerEdge R610 is a 1U rack server designed for high performance, power efficiency, and ease of maintenance. To better manage your data center operations, the server features simplified systems management and advanced thermal control for optimizing performance while reducing power consumption.

PowerEdge R610 Mounting Equipment

PowerEdge R610 Mounting specifications

Chassis Dimensions:

  • Length (depth): 30.39” (772 mm)
  • Width: 19” (482.44 mm)
  • Height: 1.67”  (42.6 mm)
  • Weight: 17.69 kg max (39 lbs)

Mounting Requirements:

  • U height: 1U
  • Rack width: 19”
  • Mountable depth: 30” – 35”

PowerEdge R610 Hardware Specifications

  • RAM: Up to 192GB (12 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3 800MT/s, 1066 MT/s, or 1333 MT/s
  • Storage: Internal hard drive bay and hot-plug backplane. Up to six 2.5” SAS, or SSD Drives. Up to 12TB.
  • CPU options:  Intel Xeon processors 5500 and 5600 series
  • Power: One or two hot-plug high-efficiency 502W Energy Smart power supplies or one or two hot-plug 717W high-output power supplies
  • Remote management:  iDRAC6 Enterprise (optional)

Dell PowerEdge R610 Dimensions and Rack Compatibility

The PowerEdge R610 chassis is 1 rack unit in height, has a depth of 30 inches and will fit in standard EIA 19 inch racks



4-Post Rack
4-Post, Open Frame Rack

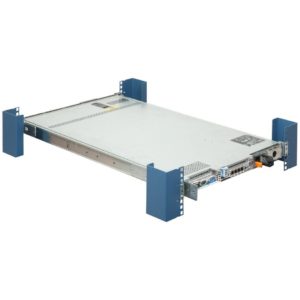

Rails allow for the most efficient use of space when mounting servers. RackSolutions specifically designed a slide rail kit to fit the shoulder screws of the PowerEdge R610.



Dell PowerEdge R610 Slide Rails

Universal rails that have a height of 1U and support up to 30 inches of depth will be compatible with the PE R610. A benefit of these is the ability to re-use them for different servers or future upgrades. Plus, it’s easy to slide your server in and out of them for maintenance. You can also use our slam latch accessory kit for your Dell servers to be secured in place when using our universal rails. The retaining plate is only compatible with 1U-2U standard width universal rails.



universal rails r6515
Universal Rails
1U Dell Slam Latch Retaining Plate
1U Dell Slam Latch Retaining Plate

Other products that will be useful when mounting your server can be found here:
