Rack Upright Shapes Explained: L, C, and ?
The shape of a rack upright, also known as a rack post, plays an important role in the strength and stability of a server rack. Server rack uprights typically come in three standard shapes: L-shape, C-shape, and ?-shape. Each upright shape design is intended for different applications and load requirements.
They also help determine the rack’s weight capacity, depth, and compatible mounting accessories for your data center or server closet. Understanding the differences between each rack upright shape can help you choose the right rack for your application.
1) L-SHAPE
The “L-SHAPE” is the most common shape, mostly found in 4 post racks. Formed at a 90-degree angle, these rack posts are typically used in lighter-duty server racks and open-frame designs. They are commonly used for standard IT and networking equipment because they provide easier cable routing, improved airflow access, and a cost-efficient design. L-shaped uprights are best for applications with moderate equipment loads where maximum structural support is not necessary.
- Follows EIA Standards
- Square hole
- 10-32 Threaded hole
- 12-24 Threaded hole
- #12 Through hole

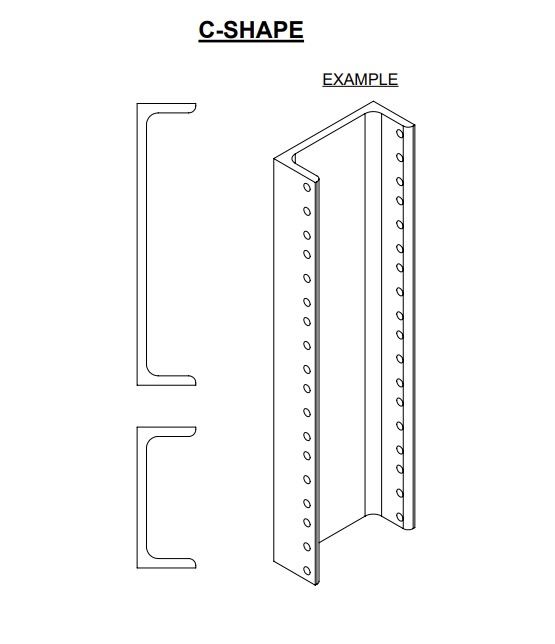

2) C-SHAPE
The “C-SHAPE” comes in 3” or 6” wide configurations, and is usually found in 2 post racks. Compared to L-shaped uprights, C-shaped uprights feature additional inward bends in the steel that create a channel-like structure for increased strength and rigidity. Their reinforced design helps resist twisting and bending under heavy equipment loads.
- Follows EIA Standards
- Square hole
- 10-32 Threaded hole
- 12-24 Threaded hole
- #12 Through hole

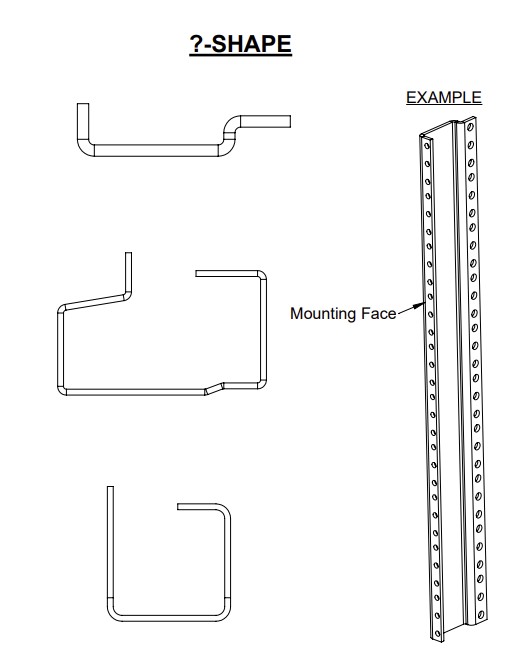

3) ?-SHAPE
The “?-SHAPE” has a wide variety of shapes and is mostly found in 4 post racks. It can also be known as the question mark or hat-shaped rack upright. They feature a main front rail with a wider inner or outer flange for added support. This rack upright design is commonly used in telecommunications and central office environments. Depending on the equipment requirements, the flanges may be equal or different sizes.
- Mounting face follows EIA Standards
- 10-32 Threaded hole
- 12-24 Threaded hole
- #12 Through hole
Do You Need a Server Rack?
Choosing the right rack upright shape is crucial when building a reliable and efficient setup. RackSolutions provides a variety of server racks and mounting solutions designed for a variety of work environments, from small IT closets to enterprise data centers.
If you have any questions about our server racks, feel free to contact us for more information. With our high-quality, in house manufacturing, you can be confident that you are buying the best equipment possible!
Looking for a Custom Solution?
At RackSolutions, we understand that one size does not fit all. Sometimes you need something custom. If you can’t find exactly what you need, our engineers will design a custom solution for you. You can contact our sales team and support for more information on custom products.
FAQs: Rack Upright Shapes
What is the difference between L-shaped and C-shaped rack uprights?
L-shaped uprights feature a simple angled design that is lightweight and cost-efficient. In comparison, C-shaped uprights feature reinforced bends for increased strength and load capacity.
Why does a rack upright shape matter?
Rack upright shapes are important because they affect the rack’s strength, stability, weight capacity, airflow access, and compatibility with mounting accessories.
