2 Post Rack Rails

Availability: In stock

2 Post Rack Rails
  • Front View - Rack Rails for 2 Post Rack - Center Mounted 1UKIT-009
    Front View - Rack Rails for 2 Post Rack - Center Mounted 1UKIT-009
    close

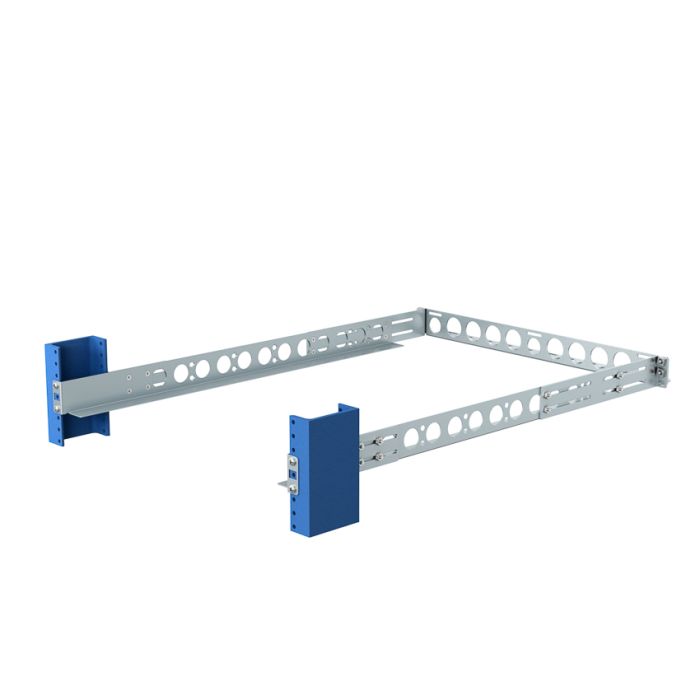

  • 1U Universal 2 Post Rack Rails 1UKIT-009 Flush Mounted
    1U Universal 2 Post Rack Rails 1UKIT-009 Flush Mounted
    close
  • 1U Universal 2 Post Rack Rails 1UKIT-009 flush mount with server
    1U Universal 2 Post Rack Rails 1UKIT-009 flush mount with server
    close
  • 1U Universal 2 Post Rack Rails 1UKIT-009 with server
    1U Universal 2 Post Rack Rails 1UKIT-009 with server
    close
  • 1U Universal 2 Post Rack Rails 1UKIT-009 Flush mount rear view
    1U Universal 2 Post Rack Rails 1UKIT-009 Flush mount rear view
    close
  • 2U Universal 2 Post Rack Rails 2UKIT-009
    2U Universal 2 Post Rack Rails 2UKIT-009
    close
  • 2U Universal 2 Post Rack Rails 2UKIT-009
    2U Universal 2 Post Rack Rails 2UKIT-009
    close
  • 2U Universal 2 Post Rack Rails 2UKIT-009
    2U Universal 2 Post Rack Rails 2UKIT-009
    close
  • 2U Universal 2 Post Rack Rails 2UKIT-009
    2U Universal 2 Post Rack Rails 2UKIT-009
    close
  • 3U Universal 2 Post Rack Rails 3UKIT-009
    3U Universal 2 Post Rack Rails 3UKIT-009
    close
  • 3U Universal 2 Post Rack Rails 3UKIT-009
    3U Universal 2 Post Rack Rails 3UKIT-009
    close
  • 3U Universal 2 Post Rack Rails 3UKIT-009
    3U Universal 2 Post Rack Rails 3UKIT-009
    close
  • 3U Universal 2 Post Rack Rails 3UKIT-009
    3U Universal 2 Post Rack Rails 3UKIT-009
    close
Made in America

Mounts in any 2Post rack

  • Square or round hole racks (10-32, 12-24, metric M6 threads)
  • Weight capacity, 45 - 200 lbs
  • Includes cable management bar
  • Velcro straps provided for securing cables

Excellent alternative to OEM rails

  • Dell, HP & IBM compatible
  • Mounting depth: 10 - 31.75" (254 - 806 mm)
  • 24" (610 mm) long

Alternate products

Rack Solutions Promise
Product Name SKU Price Qty
1U, 2Post Rack Rails 1UKIT-009
$119.99
2U, 2Post Rack Rails 2UKIT-009
$169.99
3U, 2Post Rack Rails 3UKIT-009
$189.99
Description

Details

Features

The RackSolutions 2 Post Rack Rails are designed to give users a durable, high-performance rail solution for standard 19" server racks. As a result, the 2 Post Rack Rails are simultaneously durable and versatile. Durability comes from strong construction principles and a zinc plating finish. This allows the device to support 45 lbs for 1U devices, 75 lbs for 2U and a maximum weight of 200 lbs for 3U devices. All of this is achieved in a form factor 24" long with a mounting depth of 10" to 31.75". The 2 Post Rack Rails get their diversity from a form factor compatible with Dell, HP and IBM. servers. Furthermore, the rails can be mounted in both center and flush settings, making them easy to deploy in a variety of settings. This ease is furthered by the rails' compatibility with square, round or threaded holes. Besides giving users durability and versatility, the rails also offer a reliable, professional solution. To make this possible, RackSolutions equipped the rails with a built-in cable management bar to ease cable routing and Velcro straps to help keep wires from going astray. The 2 Post Rack Rails ship with screws, cage nuts and nuts for all rack types, easing installation and ensuring users have all the hardware they need to assemble the server storage solution.

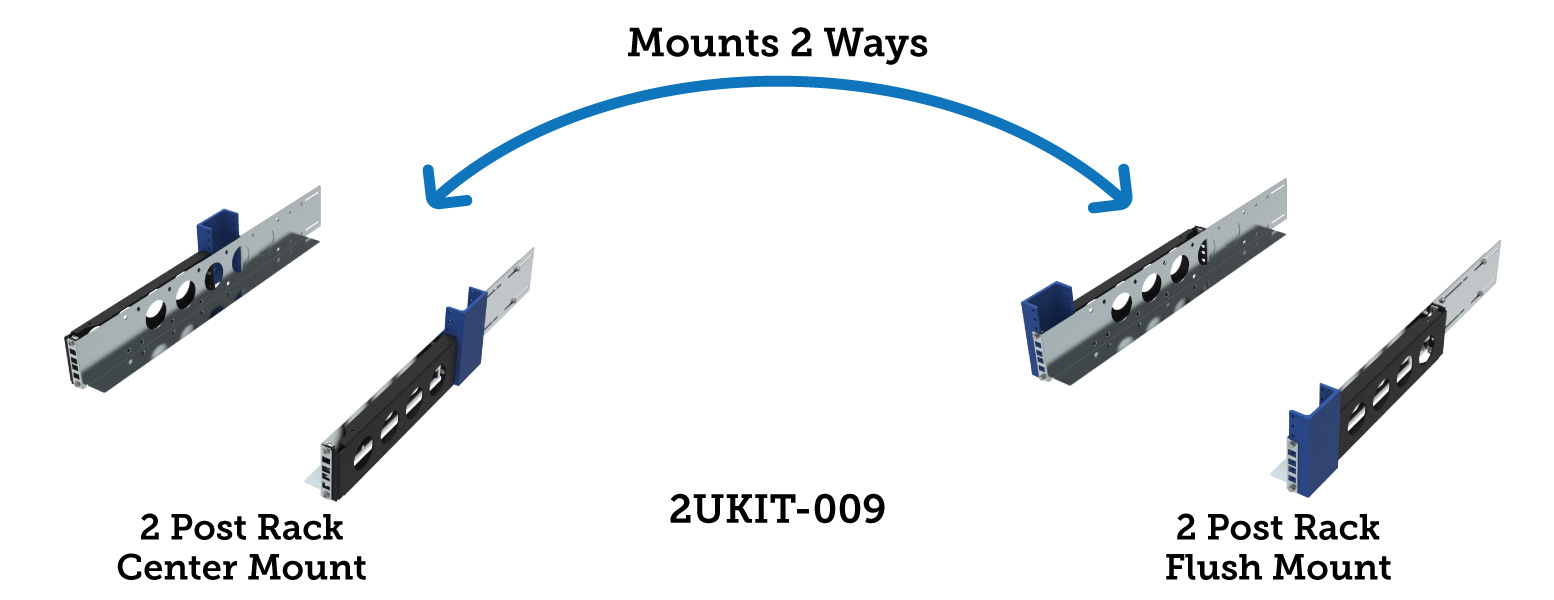

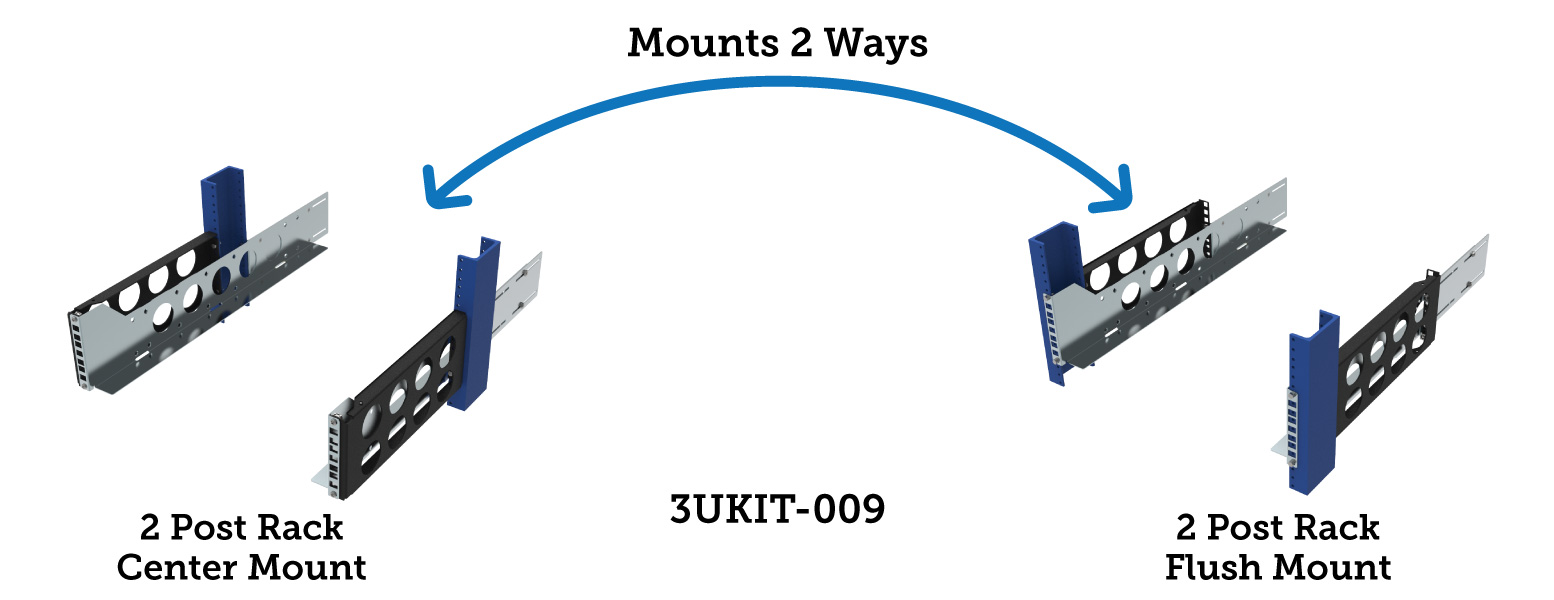

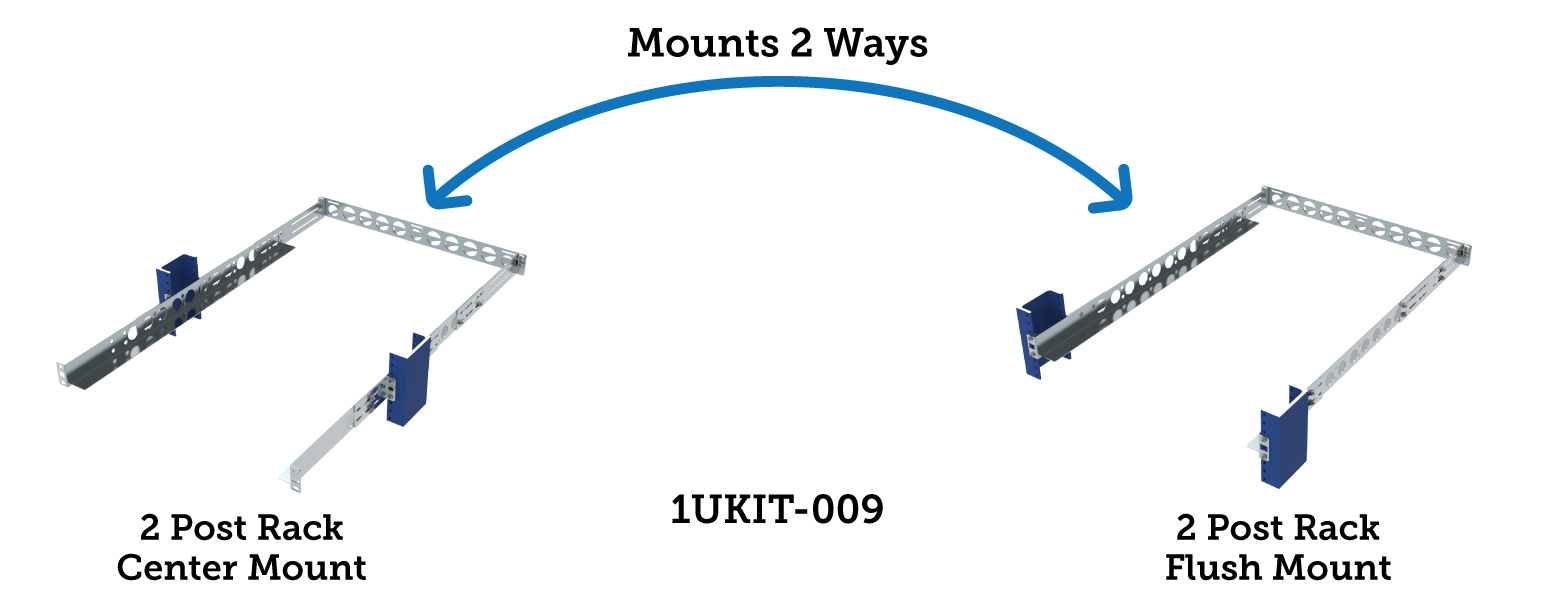

Mounts 2 Ways - Center and Flush Mount

Additional Information

Additional Information

Equipment Depth The rack rails support flange is 23 1/2" (597 mm) long
The rack rail will support servers computers or equipment up to 35" (889 mm) deep
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area *Maximum: 17.6" (447 mm)
1U Minimum: 16.625" (422 mm)
2U Minimum: 16.375" (416 mm)
3U Minimum: 16.75" (413 mm)
*Maximum equipment width allowed is based on worst case conditions. Wider equipment may fit depending on the mounting configuration and/or actual equipment dimensions. Please contact technical support for further assistance.
Finish Zinc plating
Mounting Depth Range Mounting depth: 10 - 31.75" (254 - 806 mm)
Included Hardware Includes relay rack mounting hardware: screws, cage nuts and nuts for all standard rack types
Weight Capacity 2Post center mount
1U: 45 lbs (20.4 kgs)
2U: 75 lbs (34 kgs)
3U: 200 lbs (90.7 kgs)

2Post flush mount
1U: 30 lbs (13.64 kgs)
2U: 50 lbs (22.73 kgs)
3U: 125 lbs (56.82 kgs)
Rack Units 1U, 2U and 3U
Tool-less/Standard Standard
Overall Installation Depth Maximum overall depth is the same as the rack's mounting depth
Hole Type Compatible with all standard threads including 10-32, 12-24 and metric M6
RoHS Compliant Yes
