Fujitsu Primergy RX100 S8: Specs and Rack Compatibility



The Fujitsu Primergy RX100 S8 is designed to provide operational expansions that best meet individual demands. This server features enhanced usability, high performance, and ease of maintenance. For those who want optimized virtualization and storage capacity, this rack server is energy efficient and low in cost.

Fujitsu Primergy RX100 S8 Mounting Equipment

Fujitsu Primergy RX100 S8 Mounting specifications

Chassis Dimensions:

  • Length (depth): 23” (572 mm)
  • Width: 19” (482.6 mm)
  • Height: 1.68” (42.8mm)
  • Weight: 13 kg max (28.66 lbs)

Mounting Requirements:

  • U height: 1U
  • Rack width: 19”
  • Mountable depth: 23”

Fujitsu Primergy RX100 S8 hardware specifications

  • RAM: Up to 32GB (4 DIMM slots): 2GB/4GB/8GB up to 1,600MHz
  • Storage:  4/8 x 2.5-inch hot-plug SAS/SATA or 4 x 3.5-inch hot-plug SAS/SATA or 10 x 2.5-inch hot-plug SAS/SATA
  • CPU options: Intel Xeon processor E3-1200v3 product family, Intel Core i3 processor, Intel Pentium processor
  • Power: 300W standard power supply output, 450W hot-plug power supply redundancy, 1x standard power supply or 1x hot-plug power supply or 2x hot plug power supplies for redundancy
  • Remote management: Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible

Fujitsu Primergy RX100 S8 dimensions and rack compatibility

The Fujitsu Primergy RX100 S8 chassis is 1 rack unit in height, has a depth of 23 inches and will fit in standard EIA 19 inch racks



4-Post Rack
4-Post, Open Frame Rack

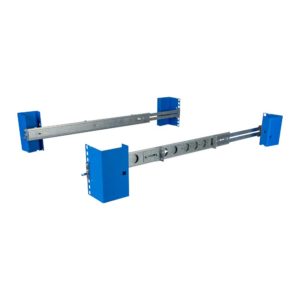

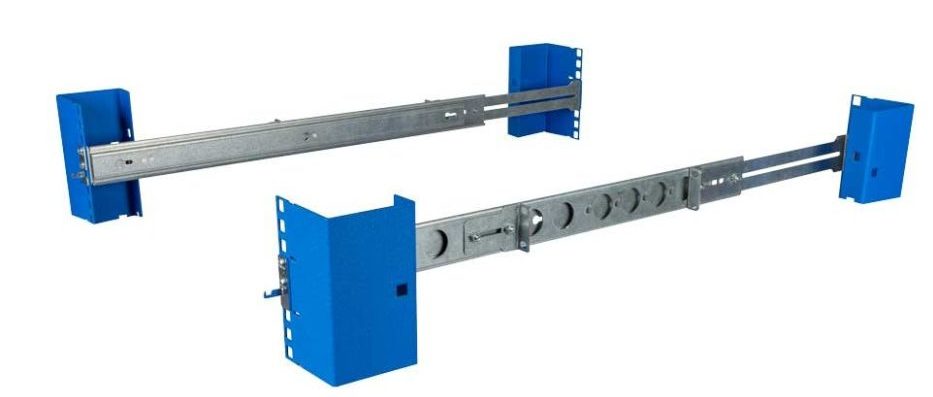

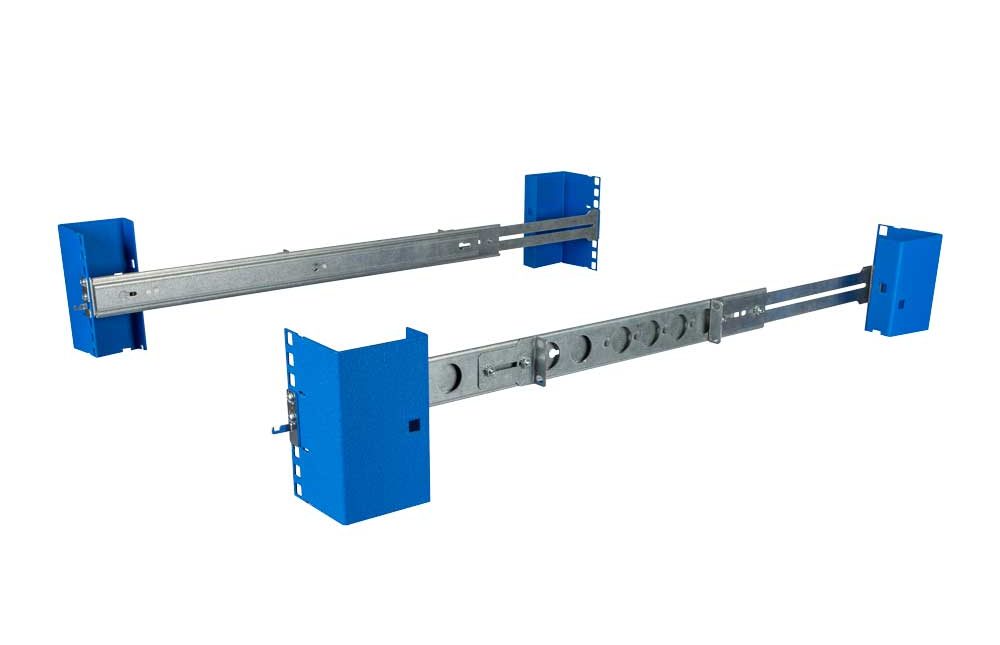

Rails allow for the most efficient use of space when mounting servers. RackSolutions specifically designed the Fujitsu Primergy RX100 Slide Rails to fit the shoulder screws of the Fujitsu Primergy RX100 S8. Our sliding rails allow for easy serviceability and replacement.



Fujitsu Primergy RX100 Slide Rails
Fujitsu Primergy RX100 Slide Rails

Other products that will be useful when mounting your server can be found here:
