Modular Shelf Bracket for Dell Pro Max Micro and Dell Precision
Dell Precision PC Brackets Designed for the Modular ShelfÂ
- Simply drop the workstation into placeÂ
- I/O ports are accessibleÂ
- Fit multiple on the 4 post shelf and Cantilever shelf
Modular Shelf Bracket Compatibility
- Mounts 5 Dell Precision 3260 workstations (101-9075)
- Mounts 4 Dell Precision 3280 / Dell Pro Max Micro workstations (101-9077)
- Mounts 4 Dell Precision 3460 SFF workstations (101-9113)Â
The Dell Pro Max Micro and Dell Precision Modular Shelf Bracket allows you to securely store and manage your devices into place. You can group the devices by size or operating system, which will help those who are testing for small-scale deployments. We provide PC brackets specifically designed for the Dell Precision 3260 (101-9075), Dell Precision 3280 / Dell Pro Max Micro (101-9077), and Dell Precision 3460 (101-9113). You can fit multiple devices on the Modular 4 post shelf or 2 post shelf.
These brackets feature built-in obrounds that fit flush with the legs of your workstation, ensuring that your device is placed in the correct position. The faceplate of the bracket allows airflow from the front of the rack to directly exhaust to the rear, so you can be confident that your devices will not overheat.
Dell Precision 3260 Modular Shelf Bracket
SKU: 101-9075
The Dell Precision 3260 Modular Shelf Bracket mounts 5 workstations with a single bracket.
4-Unit Dell Pro Max Micro Face Plate/Bracket Set for Modular Shelf
SKU: 101-9077
The Dell Precision 3280 / Dell Pro Max Micro Modular Shelf Bracket mounts 4 workstations with a single bracket.
Note: The Dell Precision 3280 is part of the Dell Pro Max Desktop lineup—specifically in the “Micro” category.
To learn more about Dell’s new PC‑naming convention, read more here. (opens in a new tab)
Dell Precision 3460 SFF Modular Shelf Bracket
SKU: 101-9113
The Dell Precision 3460 SFF Modular Shelf Bracket mounts 4 workstations with a single bracket.
No Interference With The Cold Air Intake
For optimal cooling and thermal efficiency, the PC bracket does not interfere with the cold air intake and exhaust ports.This allows the intake and exhaust of the rack shelf to separate the hot and cold air. The airflow from the front of the PC bracket cutout directly exhausts to the rear, so you can be confident that your devices will not overheat.
PC Mounting Stabilization
To keep the devices in place, the PC brackets feature obround cutouts to act as a stabilizer. This prevents your devices from wobbling or shifting on the rack shelf. The Dell Precision workstations are equipped with shallow rubber bumper feet, thus the Precision brackets are engineered with mounting flanges and obround cutouts to ensure a seamless installation.
Cabling Organization and Accessibility
The open design of the PC bracket does not interfere with the power button or peripheral ports. This allows for your PC cables to seamlessly route through the back of the bracket. Additionally, the design leaves vacant space for PC cables while still providing access to the I/O ports.
| Made In America | Yes | BABA Compliant | Yes | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Dell | Product Line | Precision, Pro | Form Factor | Compact, Small | Device Type | Computer | Finish | Black, Textured Powder Coat | Material | Steel |
|---|
Data Sheet
4-Unit Dell Pro Max Micro Face Plate/Bracket Set for Modular Shelf (101-9077)
Open PDF

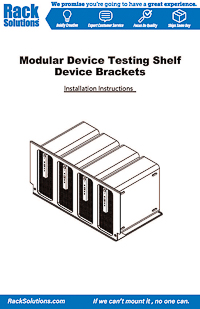

Installation Instructions
4-Unit Dell Pro Max Micro Face Plate/Bracket Set for Modular Shelf (101-9077)
Open PDF

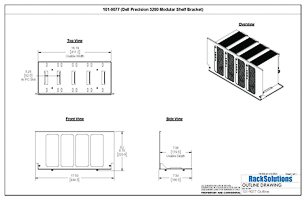

Dimensional Drawings
4-Unit Dell Pro Max Micro Face Plate/Bracket Set for Modular Shelf (101-9077)
Open PDF
Data Sheet
5-Unit Dell Precision 3260 Face Plate/Bracket Set for Modular Shelf (101-9075)
Open PDF
Installation Instructions
5-Unit Dell Precision 3260 Face Plate/Bracket Set for Modular Shelf (101-9075)
Open PDF

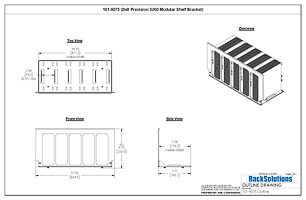

Dimensional Drawings
5-Unit Dell Precision 3260 Face Plate/Bracket Set for Modular Shelf (101-9075)
Open PDF
Data Sheet
4-Unit Dell Precision 3460 SFF Face Plate/Bracket Set for Modular Shelf (101-9113)
Open PDF

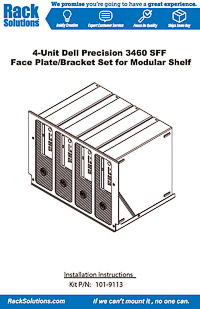

Installation Instructions
4-Unit Dell Precision 3460 SFF Face Plate/Bracket Set for Modular Shelf (101-9113)
Open PDF

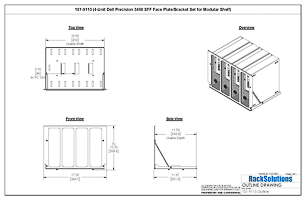

Dimensional Drawings
4-Unit Dell Precision 3460 SFF Face Plate/Bracket Set for Modular Shelf (101-9113)
Open PDF
Kit Contents:
- (1) Base Plate
- (1) Face Plate
Bracket Hardware:
- (5) #8-32 x .250" Flat Head Screw
Mounting Hardware:
- (3) #8-32 Keps Nut
Kit Contents:
- (1) Base Plate
- (1) Face Plate
Bracket Hardware:
- (5) #8-32 x .250" Flat Head Screw
Mounting Hardware:
- (3) #8-32 Keps Nut
Kit Contents:
- (1) Base Plate
- (1) Face Plate
- (2) Side Support Bracket (Left & Right)
Bracket Hardware:
- (6) #8-32 x .250" Flat Head Screw
Mounting Hardware:
- (4) #8-32 Keps Nut
Kit Contents:
- (1) Modular Shelf
- (2) Ball Bearing Slides (Left & Right)
- (2) Rear Rail Brackets (Left & Right)
- (1) Cable Management Attachment
Assembly Hardware:
- (8) 8-32 x .375 Truss Head Screws
- (8) 8-32 Keps Nuts
- (2) 8-32 x .312 Flat Head Screws
Mounting Hardware:
- (9) 10-32 x .500 Pan Head Screw
- (9) 12-24 x .500 Pan Head Screw
- (9) 12-24 x Square Nut
- (9) 12-24 x Cage Nut
Assembly Components:
- (1) Left Rail
- (1) Right Rail
- (2) Retainer Brackets
Cable Arm Hardware:
- (1) Cable Arm Assembly
- (2) CMA Extension Brackets (L/R)
- (1) Hook and Loop
Components:
- (1) Shelf
Mounting Hardware:
- (4) 10-32 Pan Head Screws
- (4) 12-24 Pan Head Screws
- (4) 12-24 Cage Nuts
- (4) 12-24 Square Nuts
2U Cable Management Arm Hardware:
- (6) 12" Zip Ties
- (1) 50" Hook and Loop
- (1) Plastic Lanyard 6"
- (1) Chassis Bracket with Adhesive
Rack Mount Hardware:
- (3) 12-24 Square Nuts
- (3) 10-32 Pan Head Screws, 3/4"
- (3) 12-24 Pan Head Screws, 3/4"
- (3) 12-24 Cage Nuts "Black"
- Precision Workstation 3260
- Precision Workstation 3280
- Precision Workstation 3460 SFF
- Pro Max Micro
