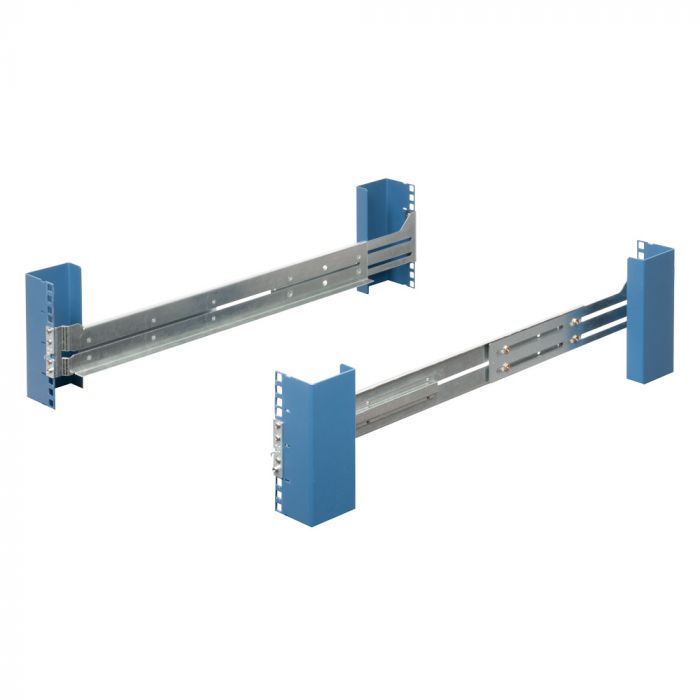

Dell PowerEdge R510 Rack Rails

P/N: 109-1685

Fits any 4 Post rack

  • Square, round, threaded holes
  • Supports L, C, Z, and ? rack upright shapes
  • Compatible with 4 hard drive and 8 hard drive chassis only
  • Dell R510 chassis with 12 hard drives require 2UKIT-109 rails

4Post Mounting

  • 4Post Shallow Mounting of 30.1 - 32.5" (764 - 825 mm): Requires the P/N:109-1685
  • 4Post Deep Mounting depth of 11 - 34" (279 - 864 mm) : Requires the P/N:109-1837

2Post Mounting

  • 2Post Center Mount or Flush Mount: Requires the P/N:109-1872
  • Dell R510 chassis with 12 hard drives require 2UKIT-009 rails

Be the first to review this product

Items in stock ship out today if you complete your order in the next 11 hours and 15 minutes!
Product Name P/N: Availability Price Qty
Dell R510 Rack Rails (See Mounting Depth Details) 109-1685
In Stock

Regular Price: $129.99

Special Price: $69.99

Dell R510 Rack Rails (11 - 34" Mounting Depth) 109-1837
In Stock
$129.99
Dell R510 Rack Rails - 2Post Flush or Center Mount 109-1872
In Stock
$159.99

Features

The Dell PE R510 rail kit is a replacement for the Dell rail kit that is provided with the R510 server. The R510 rails work with 4Post server racks. The Dell R510 rail kit is not a ball-bearing rail kit. The Dell R510 rail kit is a fixed rack mounting device.

Dell PowerEdge R510 Rack Rails - Technical Specifications

Rail OEM Dell
Server Compatibility Dell PowerEdge R510
Rack Type 4Post, 2Post, 19" EIA-310 standard server rack
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
Rail Type Fixed
Mounting Depth Range P/N: 109-1685
Pre-set at 26 - 29.35" (660 - 745 mm)
30.1 - 32.5" (764 - 825 mm) range may be attained with a hardware adjustment

P/N: 109-1837
Pre-set at 26.2 - 30.3" (665 - 769 mm)
11 - 34" (279 - 769 mm) range may be attained with a hardware adjustment
Included Hardware
Kit Contents:
(1) Right Rail Assembly
(1) Left Rail Assembly
Mounting Hardware:
(2) Hook Plates (Left & Right)
(6) 8-32 x .500 Pan Head
(8) 10-32 x .500 Pan Head
(8) 12-24 x .500 Pan Head
(8) 2-24 Cage Nut
Finish Galvanized
Assembly Notes Phillips head screwdriver required
