Raven Rails for HP Servers



We maintain a large selection of server rack replacement rails for many OEM servers, including HP ProLiant and HP SimpliVity servers. Our “Raven Rails” product line is designed to replace HP rail kits that are incompatible with your server rack. These server rails are compatible with any hole type and mounts into any 4 post or 2 post rack.

Server Rack Replacement Rails

When using the HP rail kit that typically comes with the server, you could face installation problems and compatibility issues such as:

  • Attachment method is incompatible
  • Installation depth is incompatible
  • HP rails are incompatible with the server rack
  • HP rail kit is broken or lost
  • Data center moves to a new location
  • Purchasing used rails or from anyone but the manufacturer

Our Raven Rails provide a sturdy and easy-to-install rail solution for HP compatible server racks. OEM rail kits are expensive, so these Raven Rails are the perfect alternative if you need something cost-effective. By using our server rails, you will be confident knowing that it will work and last in any situation that you may need them for.

HP Server Rails and Compatibility

1U Raven 76 Rail

Full sized rails can protrude past the rear uprights in shallow racks, which makes it difficult for individuals to close the rear door or install accessories. For racks that have a shallow depth, the 1U Raven 76 Rail is designed to provide a better fit for short HP servers by minimizing the length of the inner rail. We reduced the inner rail length of the Raven 76 to avoid the rail from sticking out of your rack. You can even use smaller racks such as the Transport Case Rack or Portable Server Rack Enclosure

  • Rail Type: non-ball bearing, dry slides
  • 4 Post Mounting Depth: 16.75” – 32″ (425 mm – 812 mm)
  • 2 Post Mounting Depth: 3” – 6” (76.2 mm – 152.4 mm)
  • HP Server Compatibility: HP ProLiant DL325 G10, HP ProLiant DL20 G10, HP ProLiant DL20 G9, HP ProLiant DL160 G10, HP ProLiant DL160 G9, HP ProLiant DL120 G9, HP ProLiant DL60 G9

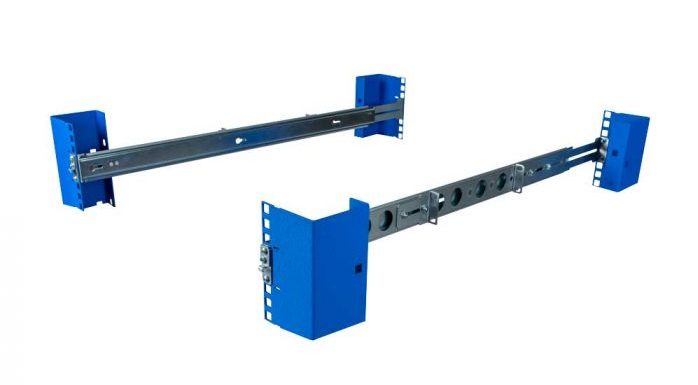

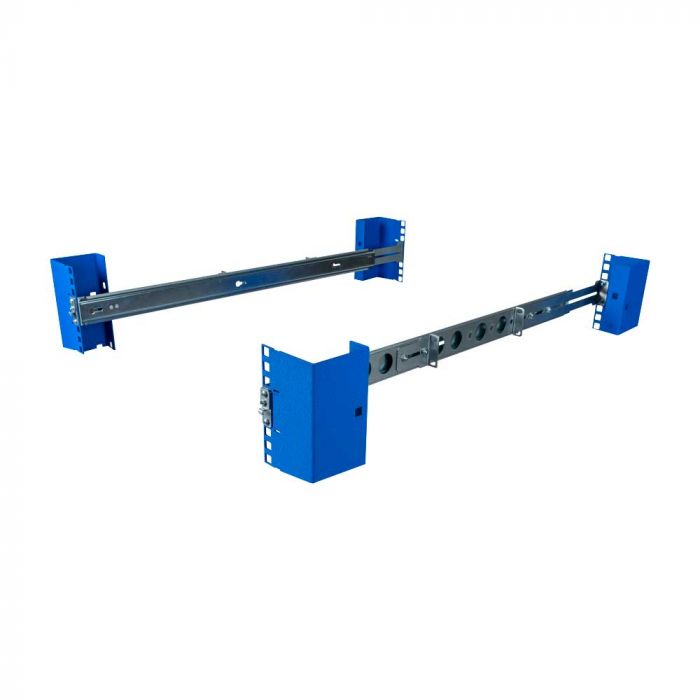

1U raven 76
1U Raven 76 Rail

2U Raven 47 Rail

Specifically designed to mount 2U servers, the 2U Raven 47 Rail has an extensive compatibility list. This rail allows the HP DL380 Gen 8, HP DL380 Gen 9, HP DL Gen 10, and more to be installed to any type of server rack. You can install the HP ProLiant server to any 4 post or 2 post server rack with any hole type.

  • Rail Type: non-ball bearing, dry slides
  • 4 Post Mounting Depth: 18.5″ – 32″ (469.9 mm – 812.8 mm)
  • 2 Post Mounting Depth: 3” – 6” (76.2 mm – 152.4 mm)
  • HP Server Compatibility: HP DL380p Gen 8, HP DL385p Gen 8, HP DL380e Gen 8, HP DL560 Gen 8, HP DL180 Gen 9, HP DL380 Gen 9, HP DL560 Gen 9, HP DL 80 Gen 9, HP DL380 Gen 10, HP DL560 Gen 10, HP DL180 Gen 10, HP DL385 Gen10, HP SimpliVity 380 Gen 10
2U raven 47
2U Raven 47 Rail

1U Raven 13 Rail

The 1U Raven 13 Rail allows the HP DL320 Gen 8, HP DL360 Gen 8, and more to be installed in any 4 post or 2 post server rack with any hole type. Similar to previous rails, the Raven 13 are considered dry slides that allow you to slide the server in and out of the rack for easy serviceability.

  • Rail Type: non-ball bearing, dry slides
  • 4 Post Mounting Depth: 18″ – 34.5″ (457 mm – 876 mm)
  • 2 Post Mounting Depth: 3” – 6” (76.2 mm – 152.4 mm)
  • HP Server Compatibility: HP DL320 Gen 8, HP DL360 Gen 8, HP DL 360e Gen 8, HP DL360 Gen 9, HP DL160 Gen 9, HP DL120 Gen 9, HP DL60 Gen 9, HPE DL 160 Gen 10, HPE DL 120 Gen 10, HP DL 360 Gen 10, HPE DL325 Gen10
1u raven 13
1U Raven 13 Rail

Additional Accessories

Other products that will be useful when mounting your server can be found here:
