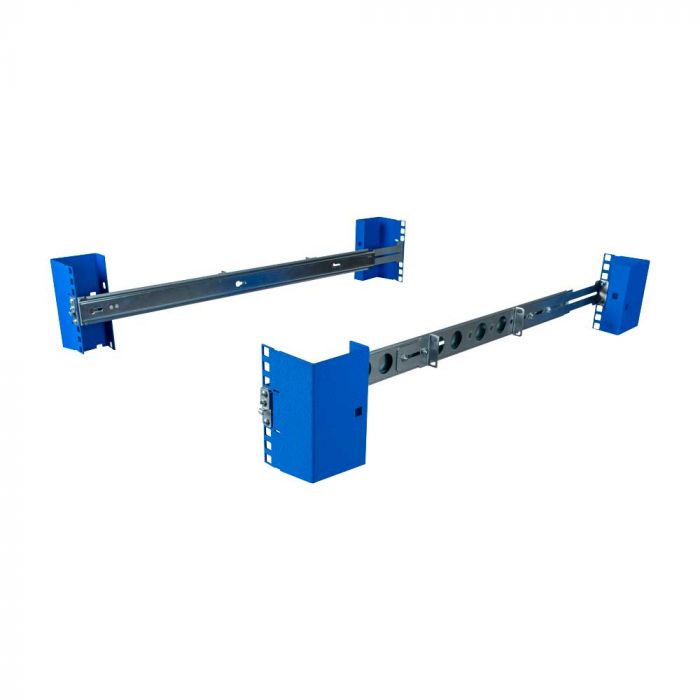

1U Raven 165-A Dry Slide Rail for HPE
By minimizing the length of the inner rail, this HPE server rail kit is designed to take advantage of short HPE servers. Full sized slide rails can protrude past the rear uprights of shallow racks, which makes it difficult to close the rear door or install accessories. This rail kit allows the HPE ProLiant DL20 Gen 10 to be installed into any type of server rack and replaces the HPE rail kit that would normally come with the server. Depending on your needs, you can select between our standard depth or short depth rail kit. A flush mount kit (opens in a new tab)is required for flush mount rail installation. The conversion brackets must match the corresponding rail’s U height (e.g., 1U rail = 1U Conversion Bracket).
These rails allow the DL20 G10 to be installed into a typical 4 Post and 2 Post server racks. The inner rail of this kit is shortened so that users will also be able to take advantage of smaller racks such as our Transport Case Rack (opens in a new tab).
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | HP / HPE | Generation | Gen10, Gen9 | Product Line | ProLiant | Form Factor | Server | U Height | 1U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Zinc Plated | Synnex Part Number | 122-7776 - 6224806 |
|---|
Installation Instructions

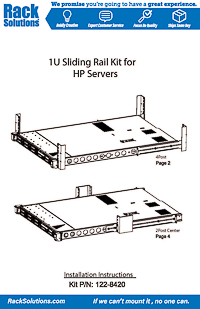

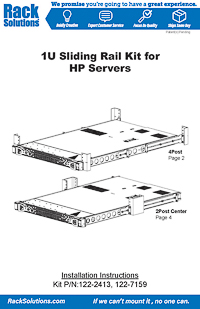

1U Raven 165-A Dry Slide Rail for HPE Standard Installation Depth (122-7776)
Open PDF
4 Post Mounting Dimensional Drawings
1U Raven 165-A Dry Slide Rail for HPE Standard Installation Depth (122-7776)
Open PDF
2 Post Center Mounting Dimensional Drawings
1U Raven 165-A Dry Slide Rail for HPE Standard Installation Depth (122-7776)
Open PDF
Kit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail (Left & Right)
- (2) Rear Bracket
Rear Bracket Hardware:
- (4) 8-32 x .375 Flat Head Screw
- (4) 8-32 Keps Nut
Mounting Hardware:
- (8) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate (Left & Right)
- (2) Mounting Plate
- (2) Latch Plate (Left and Right)
Rack Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
Kit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail (Left & Right)
- (2) Rear Bracket
Rear Bracket Hardware:
- (4) 8-32 x .375 Flat Head Screw
- (4) 8-32 Keps Nut
2Post Hardware:
- (4) 8-32 x .312 Flat Phil Screw
- (4) 8-32 Keps Nut
- (2) 2Post Bracket
Mounting Hardware:
- (8) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate (Left & Right)
- (2) Mounting Plate
- (2) Latch Plate (Left & Right)
Rack Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
- DL120 G9
- DL160 G10
- DL160 G9
- DL20 G10
- DL20 G9
- DL325 G10
- DL60 G9
Designed for shallow depth racks
Mount in a 4 or 2 post rack with any hole type
- 4 Post: 16.75" to 29.50" (425mm - 749mm)
- 2 Post: 3” - 6” (76.2mm - 152.4mm)
- 4 Post: 14.56" - 30.26" (370mm - 769mm)
- 2 Post: 3” - 6” (76.2mm - 152.4mm)
Compatible with these HPE servers:
