HP DL320 & DL360 Gen 8, Gen 10 Rack Rails

122-2413

Availability: In stock

Front view with server - DL360 Gen 8 Rack Rails
Front view with server - DL360 Gen 8 Rack Rails
Side view with server - DL360 Gen 8 Rack Rails
Side view with server - DL360 Gen 8 Rack Rails
Rear view with server - DL360 Gen 8 Rack Rails
Rear view with server - DL360 Gen 8 Rack Rails

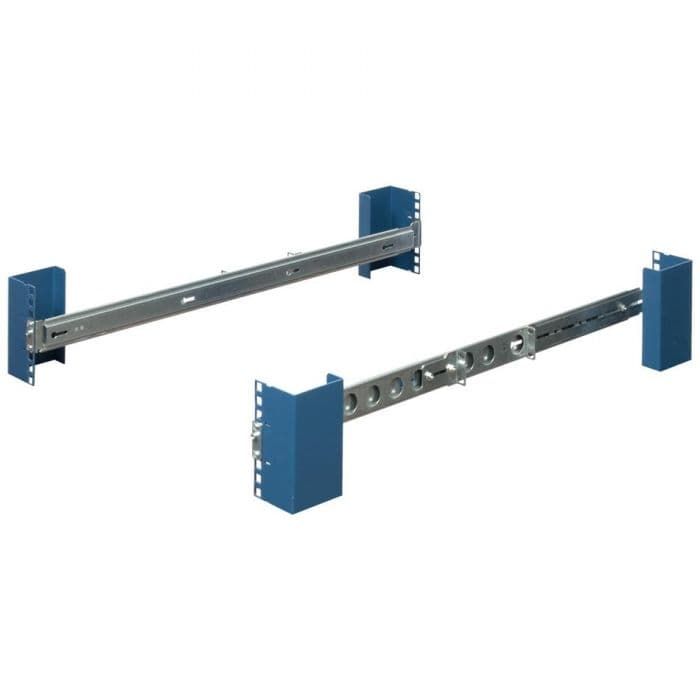

Front view - DL360 Gen 8 Rack Rails
Front view - DL360 Gen 8 Rack Rails
2Post front view with server - DL360 Gen 8 Rack Rails
2Post front view with server - DL360 Gen 8 Rack Rails
2Post side view with server - DL360 Gen 8 Rack Rails
2Post side view with server - DL360 Gen 8 Rack Rails
2Post rear view with server - DL360 G8 Rack Rails
2Post rear view with server - DL360 G8 Rack Rails
2Post front view - DL360 Gen 8 Rack Rails
2Post front view - DL360 Gen 8 Rack Rails
2Post side view - DL360 Gen 8 Rack Rails
2Post side view - DL360 Gen 8 Rack Rails
<
  1. Front view with server - DL360 Gen 8 Rack Rails
  2. Side view with server - DL360 Gen 8 Rack Rails
  3. Rear view with server - DL360 Gen 8 Rack Rails
  4. Front view - DL360 Gen 8 Rack Rails
  5. 2Post front view with server - DL360 Gen 8 Rack Rails
  6. 2Post side view with server - DL360 Gen 8 Rack Rails
  7. 2Post rear view with server - DL360 G8 Rack Rails
  8. 2Post front view - DL360 Gen 8 Rack Rails
  9. 2Post side view - DL360 Gen 8 Rack Rails
>
HP DL320 & DL360 Gen 8, Gen 10 Rack Rails
close
  • Front view with server - DL360 Gen 8 Rack Rails
    Front view with server - DL360 Gen 8 Rack Rails
    close
  • Side view with server - DL360 Gen 8 Rack Rails
    Side view with server - DL360 Gen 8 Rack Rails
    close
  • Rear view with server - DL360 Gen 8 Rack Rails
    Rear view with server - DL360 Gen 8 Rack Rails
    close
  • Front view - DL360 Gen 8 Rack Rails
    Front view - DL360 Gen 8 Rack Rails
    close
  • 2Post front view with server - DL360 Gen 8 Rack Rails
    2Post front view with server - DL360 Gen 8 Rack Rails
    close
  • 2Post side view with server - DL360 Gen 8 Rack Rails
    2Post side view with server - DL360 Gen 8 Rack Rails
    close
  • 2Post rear view with server - DL360 G8 Rack Rails
    2Post rear view with server - DL360 G8 Rack Rails
    close
  • 2Post front view - DL360 Gen 8 Rack Rails
    2Post front view - DL360 Gen 8 Rack Rails
    close
  • 2Post side view - DL360 Gen 8 Rack Rails
    2Post side view - DL360 Gen 8 Rack Rails
    close
  • Front view with server - DL360 Gen 8 Rack Rails
  • Side view with server - DL360 Gen 8 Rack Rails
  • Rear view with server - DL360 Gen 8 Rack Rails
  • Front view - DL360 Gen 8 Rack Rails
  • 2Post front view with server - DL360 Gen 8 Rack Rails
  • 2Post side view with server - DL360 Gen 8 Rack Rails
  • 2Post rear view with server - DL360 G8 Rack Rails
  • 2Post front view - DL360 Gen 8 Rack Rails
  • 2Post side view - DL360 Gen 8 Rack Rails
Made in America
HP DL320 Gen 8,DL360 Gen 8 & Gen 9 Rack Rails

Fits any 4 Post rack

  • Non-ball bearing, slide rails
  • Square, round, threaded hole compatible
  • Adjustable mounting depth of 18 - 34.5" (457 - 876 mm)
  • HP rail kit not required
  • Supports L, C, Z and ? rack upright shapes

Alternative to HP DL320 Gen 8, DL360 Gen 8, Gen 9 & Gen 10 rail kit

  • Mounts HP DL320 Gen 8, DL360 Gen 8, Gen 9 & Gen 10 in 4Post racks
  • Mounts HP DL320 Gen 8, DL360 Gen 8, Gen 9 & Gen 10 in any 2Post Relay Rack

Fits any 2Post rack

  • Center mounts in 2Post rack
  • Works with 3" - 6" uprights
HPE Servers

Product Downloads

pdf

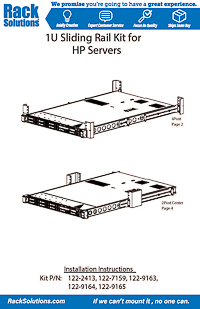

Installation Instructions - HP DL320 & DL360 Gen 8 Rack Rails
(Size: 1.6 MB)
Rack Solutions Promise
Product Name SKU Price Qty
HP DL320 & DL360 Gen 8, Gen 10 Rack Rails 122-2413
$129.99
Description

Details

HP DL360 Gen 8 Rack Rails

Features

This slide rail kit allows the HP DL320 Gen 8, DL360 Gen 8, Gen 9 and Gen 10 to be installed in any type of server rack. These rails replace the HP rail kit that would normally come with the sever. This 1U HP rail kit allows the server to be installed in typical 4Post server racks as well as 2Post server racks. These rails are considered a dry slide type. They allow the server to slide in and out, but they are not ball bearing slides. Also, the rails do not include a stop catch mechanism that prevents the server from sliding completely out of the rack when removing it for servicing.

Additional Information

Additional Information

Compatibility HP DL320 Gen 8
HP DL360 Gen 8
HP DL 360e Gen 8
HP DL360 Gen 9
HP DL160 Gen 9
HP DL120 Gen 9
HP DL20 Gen 9
HP DL60 Gen 9
HPE DL 160 Gen 10
HPE DL 120 Gen 10
HPE DL 360 Gen 10
HPE DL325 Gen10 (Expected compatibility but server has not been tested)
Rail OEM HP
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware Mounting Hardware:
(8) 8-32 x .500 Pan Head Screws
(2) Retainer Plate (Left & Right)
(2) Mounting Plate
(8) 10-32 x .500 Pan Head Screws
(8) 12-24 x .500 Pan Head Screws
(8) 12-24 Square Nut
(8) 12-24 Cage Nut

Rear Bracket Hardware:
(4) 8-32 x .375 Flat Head Screws
(4) 8-32 Keps Nuts
Rail Type Non-ball bearing slides
Mounting Depth Range 4Post server racks: 18 - 34.5" (457 - 876 mm)
Tech Notes This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack.
Finish Zinc plated
Rack Type 2 Post , 4 Post
RoHS Compliant Yes
