2U Raven 105-A Rail for HP

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
Rating:
92 % of 100
$129.99
In stock
SKU
122-2447
Sign In for free shipping on products marked with (see details)
Look for products eligible for free shipping marked with (see details)

Fits any 4 Post rack

  • Non-ball bearing, slide rails
  • Square, round, threaded hole compatible
  • Adjustable mounting depth
  • HP rail kit not required
  • Mounting Depth Range: 3.0"-32.0"

Alternative to HP DL380 Gen 8, DL560 Gen 8, Gen 9 & Gen 10 rail kit

  • Mounts DL380p Gen 8 & Gen 9 in 4Post racks
  • Mounts DL380p Gen 8 & Gen 9 in any 2Post Relay Rack
  • Also compatible with the HP SimpliVity 380 Gen 10

Fits any 2 Post rack

  • Center mounts in 2 Post rack
  • Works with 3" - 6" uprights

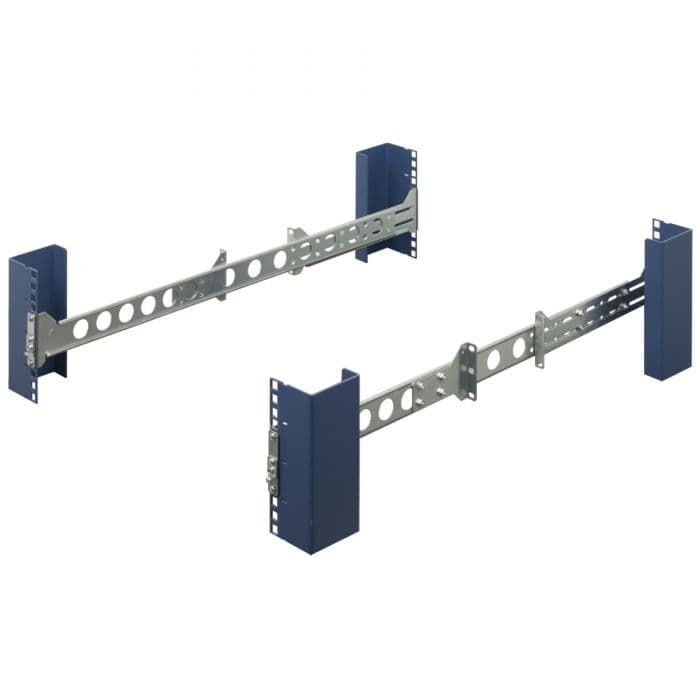

This slide rail kit allows the HP DL380 Gen 8 to be installed in any type of server rack. Works with DL380, Gen 8. These rails replace the HP rail kit that would normally come with the sever. This DL380 Gen 8,Gen 9 & Gen 10 rail kit allows the server to be installed in typical 4Post server racks as well as 2Post server racks. These rails are considered a dry slide type. They allow the server to slide in and out, but they are not ball bearing slides. Also, the rails do not include a stop catch mechanism that prevents the server from sliding completely out of the rack when removing it for servicing.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 5.170000
Country of Manufacture United States
Compatibility HP
HP Server Compatibility DL80 G9, DL180 G9, DL180 G10, DL380 G9, DL380 G10, DL380e G8, DL380p G8, DL385p G8, DL385 G10, DL560 G8, DL560 G9, DL560 G10, SimpliVity 380 G10
Synnex Part Number 122-2447 - 4667638
Ingram Part Number 122-2447 - QV5094
Fixed/Sliding Sliding
Tech Notes This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack
Finish Zinc plated
Hole Type Square, round, threaded
