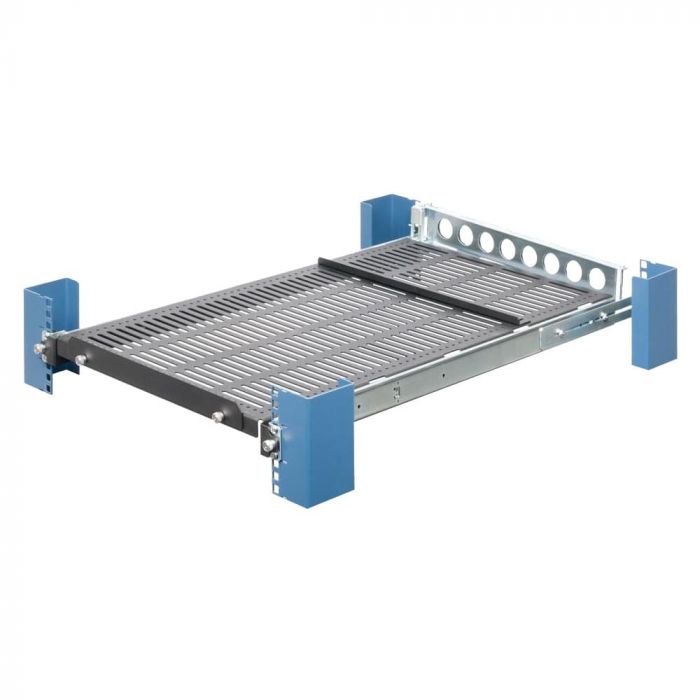

1U 115 Sliding Equipment Shelf

As low as $184.99
In stock

Easy Slide Shelf with Cable Management and Stop Bars

  • Cable management arm, equipment stops included with shallow rack shelf
  • Tower-to-Rack conversion - Great for mounting tower servers or PCs
  • Thumb screws lock the shelf in place when needed
  • High quality ball bearing slides

Fits Any 4 Post Rack

  • Weight Capacity: 95lbs (43kgs)
  • Shelf Depth: 22" (558mm)
  • Mounting Depth: 10 - 28" (254 - 711 mm)
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for Technical Specifications.

RackSolutions equipment shelves are compatible with most 19" EIA standard server racks. Our equipment shelves have a 95 lb equipment capacity and will support a wide variety of electronic equipment.

Computer equipment up to 22" deep can be supported on a 19 inch equipment shelf. The slide rails extend a full 18" on this shorter equipment shelf model. The shelf includes a removable front equipment stop bar, adjustable rear equipment stop bar, anti-slip mat and optional straps for securing equipment for transport or seismic applications.

Cable management bars are optional, but extremely useful in managing cable slack when sliding the shelf in and out.

Sliding Equipment Shelf Depth Comparison (desktop image)Sliding Equipment Shelf Depth Comparison (mobile image)
More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 115-1892
  • Kit Contents:
    • (1) Partially Assembled Shelf
    • (1) Anti-Slip Mat 12”x15”
    • (1) 50” Hook and Loop for Cable Arm
  • Brackets:
    • (2) Rear Rack Brackets
    • (1) Removable Front Stop
    • (1) Adjustable Rear Stop
    • (1) Arm Extension Bracket
    • (2) Cable Management Arms
    • (2) Arm Attachment Brackets
  • Assembly Hardware Kit:
    • (4) 8-32 x 3/8” Flat Head Screws
    • (7) 8-32 x 3/8” Pan Head Screws
    • (7) 8-32 Nuts
    • (3) 2.5” Clevis Pins & Cotter Pins
  • Rack Mount Hardware Kit:
    • (8) 12-24 x 1/2” Screws
    • (8) 10-32 x 1/2” Screws
    • (8) 12-24 Square Nuts
    • (8) 10-32 Cage Nuts
  • 115-1893 Adds:
    • (2) 3U Tall 2Post Brackets
    • (12) 12-24 Bolts for Relay Racks
Dell Part Number
115-1772 - A9753598

115-1892 - AA569322
Synnex Part Number 115-1772 - 5204754
137-1525 - 5204758
Ingram Part Number 115-1772 - UX6182
137-1525 - TJ7571
Assembly Notes Removable front equipment stop bar
Adjustable rear equipment stop bar
Anti-slip mat included
Optional straps for securing equipment for transport or seismic applications
Equipment Depth 22" (558mm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 22" L x 16.5" W (558 x 419 mm)
Finish Textured, powder-coated black
Mounting Depth Range 19" - 30" (482mm - 762mm)
Weight Capacity 95lbs (43kgs)
Rack Units 1U
Tool-less/Standard Standard
Hole Type Compatible with round, threaded, or square rack holes
